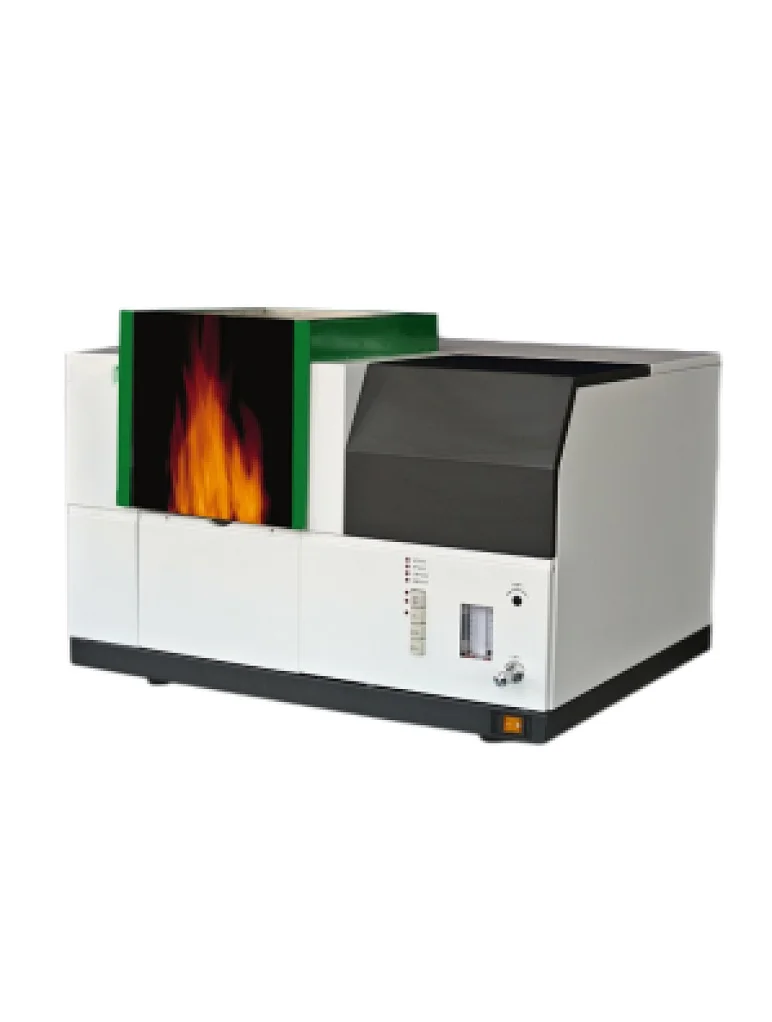

Graphite furnace AAS (ppb)

Graphite furnace AAS (ppb)

Model NO. ATA6500

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

The ATA6500 Series AAS flame instruments provide ideal analysis solutions for laboratories requiring wide detection capability for over 60 elements and enable rapid, robust and reliable an analysis.

Quantity

Contact Now add to cart

Optosky presents a wide range of quality equipment required in day-to-day function of a chemical lab to advanced instruments used for quality, assurance, control and research.
ATA6500 GF-AAS enables simple measurement of elements in a wide range of samples. The graphite furnace atomizer is ideal for the measurement of high concentration samples, while the furnace atomizer achieves sub ppb detection. The high quality atomic absorption spectrometer offers a state-of-the-art technology bundled with many features as a complete economical package.
The ATA6500 Series AAS Graphite furnace AAS  provide ideal analysis solutions for laboratories requiring wide detection capability for over 60 elements and enable rapid, robust and reliable an analysis.
The dedicated furnace atomizers of the Optosky ATA6500 Series AAS employs PID controlled graphite furnace heating technology and Integrated Graphite Furnace Television, allows for unattended analysis of low concentration samples with accurate and repeatable results. The analysis is simplified by a wizard driven work-flow which guides the user through the process of method development, ensuring optimal parameters for a specific analysis.

Item	3500	6500
wavelength range	190-900 nm	190-900 nm
Grating Line Density	1800 Line/mm	1800 Line/mm
Wavelength   Repeata- bility	±0.1nm	±0.1nm
Wavelength  Indica-tion Error	Full-wave band±0.2nm	Full-wave band±0.2nm
Optical System	Czerny-Turner System, Integrated Optical Bench, Closed Optical System	Czerny-Turner   System,   Integrated   Optical   Bench, Closed Optical System
Resolution	Spectral  bandwidth  0.2nm  can  separate Mn  Double  Line(279.5/279.8) and  Peak- valley energy ratio <30%	Spectral bandwidth 0.2nm can separate Mn  Double Line(279.5/279.8) and Peak-valley energy ratio <20%
Spectrum Slit	4-gear automatic switching:0.1nm,0.2nm,0.4nm,1.0nm	6-gear automatic switching:0.1nm,0.2nm,0.4nm,0.7nm,1.0nm,2.0nm
Static baseline drift	≤0.004 ABS/30 min(Cu)	≤0.002 ABS/30 min(Cu)
Background   Correction Technology	D2 Background deduction mode Background  Signal=1ABS,   Background Correction Ability≥50 times	D2 Background deduction mode(  Background  Signal=1ABS,  Background  Correction Ability≥50 times
Body Design	Suspension-type integrated Internal and external optical path Structure	Suspension-type integrated Internal and external optical path Structure
Lamp Socket	4 lamp beacon (Can be preheated at the same time)	6 lamp beacon (Can be preheated at the same time)
Combustion Head	Air-acetylene flame Combustion Head (100mm,Optional Nitrous Gas Function)	Air-acetylene flame Combustion Head(100mm)
Sprayer	High Efficiency Glass Sprayer	High Efficiency Glass Sprayer
Dynamic Baseline Drift of Ignition	≤0.004 ABS/30 min(Cu)	≤0.004 ABS/30 min(Cu)
Characteristic Concen_x005f_x0002_tration of Copper	≤0.025ug/ml/1% (Cu, Abs>0.8ABS)	≤0.02ug/ml/1% (Cu, Abs>0.8ABS)
Detection Limit	Cu≤0.008ug/ml	Cu≤0.004ug/ml
Measurements Repeatability (Cu)	≤0.5%	≤0.5%
Mental analysis	1.Graphite furnace method: Li, Na, Mg, K, Ga, Cr, Mn, Fe, Co, Ni, Cu, Zn, Cn, Ge, As, Se, Rb, Sr, Y,  Mo, Ru, Rh, Pd, Ag, Cd, In, Sn, Sb, Te, Cg, Ba, Os, Ir, Pt, Au, Tl, Pb, Bi, Po, Fr, La, Md, Sm, Eu, Gd, Dy, Er, Tm, Yb, U 2.Air-acetylene flame:  Li, Na, Mg, K, Ga, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, As, Se, Rb, Sr, Y, Mo, Rh, Pd, Ag, Cd, In, Sn, Sb, Te, Cg, Ir, Pt, Au, Tl, Pb, Bi

Datasheet Download:

ATA6500Datasheet_20221109.pdf
