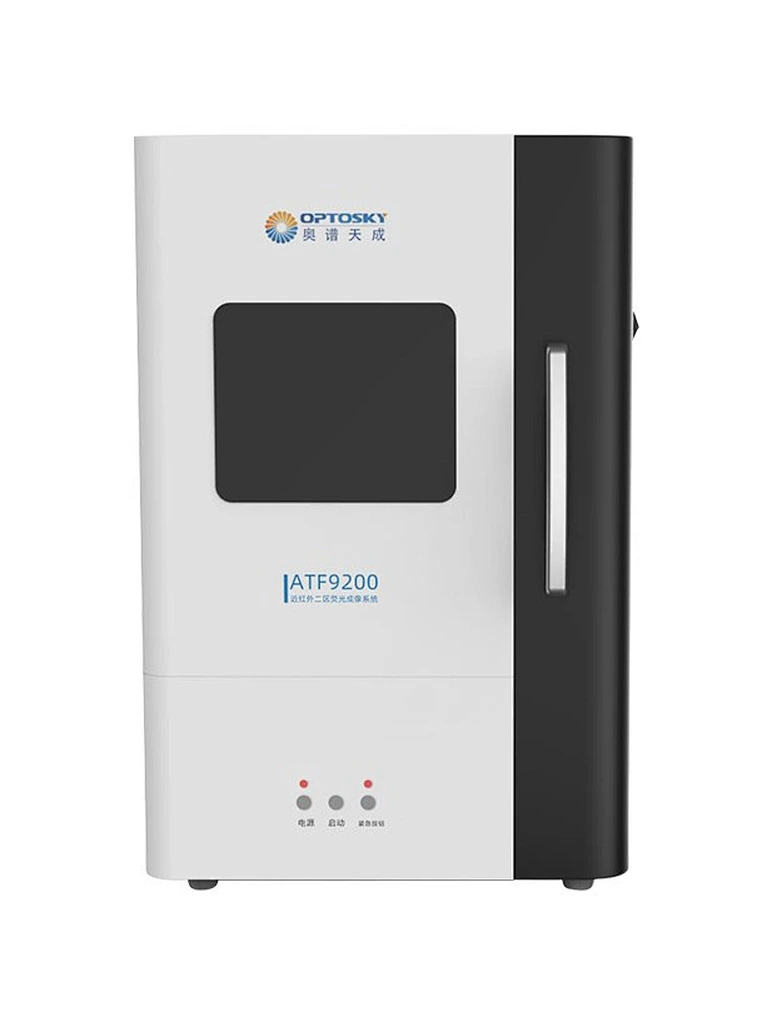

Near-infrared fluorescence Imager
ATF9200
EXW
1 unit
Made in China
ATF9200 is an auto-focusing, auto-scanning large-area near-infrared fluorescence imager carefully developed by Optosky. The near-infrared (1000-1700 nm) reduces tissue scattering and minimizes tissue absorption and auto fluorescence.
Quantity
Description
ATF9200 is an auto-focusing, auto-scanning large-area near-infrared two-zone fluorescence imager carefully developed by Optosky. The near-infrared two-zone (1000-1700 nm) reduces tissue scattering and minimizes tissue absorption and autofluorescence. Compared with traditional visible light or infrared optical imaging (ie, 400-1000 nm), it has better image contrast, sensitivity and penetration depth into tissue at these wavelengths. Especially suitable for small animal in vivo fluorescence imaging, real-time surgical navigation, etc.
ATF9200 has a built-in ultra-low temperature refrigeration high-sensitivity InGaAs detector that can be cooled down to -80°C.
Features
- Excitation wavelength: 808, 980, 1064nm
- Deep cooling InGaAs CCD, the lowest cooling temperature is -80°C
- Imaging resolution: 640X512, 1280X1024 optional
- Large area motorized scanning platform
- Real-time auto focus, auto scan, auto stitching
- Four-in-one optical fiber channel
- Novel integrated frame provides excellent stability and operability
- Modular structure design, multi-functional combination to ensure the versatility of the system
Application
- Research laboratory
- In vivo fluorescence imaging (small animals, etc.)
- Targeted tumor imaging
- Microvascular imaging, monitoring blood flow changes
- Drug targeting and kinetic studies
- Surface Spectrum
- IR
