SWIR Hyperspectral Camera
ATH1500-17
FOB
1 unit
Made in China
ATH1500-17 is a new and optimized shortwave infrared hyperspectral imaging system with small size and light weight. The spectral range is 1000-1700nm, which is suitable for airborne. Except, ATH1500-17 has high spatial resolution, high spectral resolution, wide imaging range, etc. And it consists of two parts: imaging lens and hyperspectral camera.
Quantity

Description:

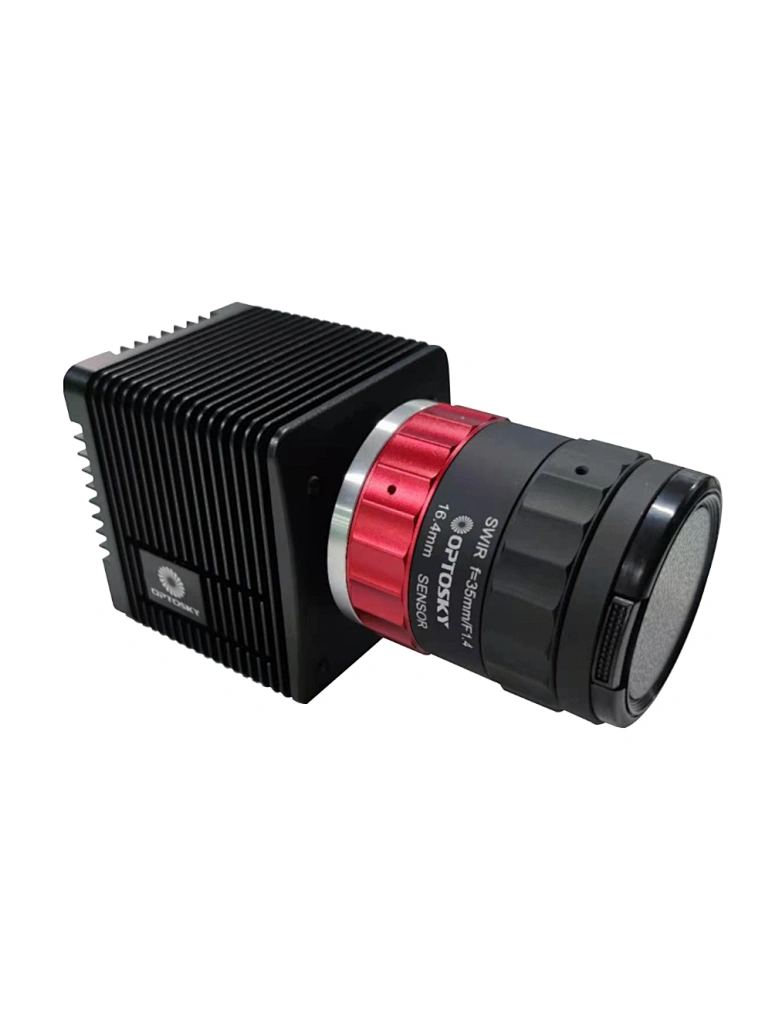

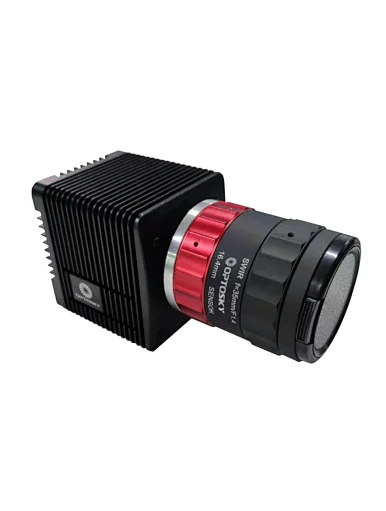

  ATH1500-17 spectral camera is a new and optimized shortwave infrared hyperspectral imaging system with small size and light weight. The spectral range is 1000-1700nm, which is suitable for airborne. Except, ATH1500-17 spectral camera has high spatial resolution, high spectral resolution, wide imaging range, etc. And it consists of two parts: imaging lens and hyperspectral camera.

  ATH1500-17 spectral camera uses high-performance Te-cooled CCD imaging device with 640 x 512 pixels, which makes it has clear image, less noise and good linearity.

 With its temperature-stable optical system, ATH1500-17 spectral camera provides excellent stability and sensitivity required in short-wave infrared chemical imaging applications, and meets the stringent requirements of laboratory, field, and industrial applications, making it become the right-hand in applications such as drug quality inspection, food safety, and agricultural analysis.


Feature:

  • Spectral Range:1000~1700nm
  • Max Spatial Channels :640
  • Max Spectral Channels :512
  • Max FOV:31.7°(Depending on the lens)
  • Superior imaging performance
  • Data format is compatible with ENVI;
  • Dimensions:122mm x 58mm x 65mm;
  • Light weight:380g;
  • No mechanical scanning, high reliability;


Application:

  • Prospecting for geology and minerals;
  • Agriculture Monitoring: Crop condition and yield assessment
  • Forest pest and fire prevention monitoring;
  • Coastline and ocean monitoring;
  • Pasture monitoring;
  • Lake and watershed monitoring;
  • Remote sensing teaching and research ;
  • Industrial sorting;
  • Ecological environment protection and mine monitoring;
  • Water quality and soil monitoring;
