VNIR Hyperspectral Camera

spectral camera ,hyperspectral scanner ,multispectral imaging ,swir hyperspectral camera ,Vis hyperspectral camera ,remote sensing
VNIR Hyperspectral Camera
ATH1500
FOB
Made in China

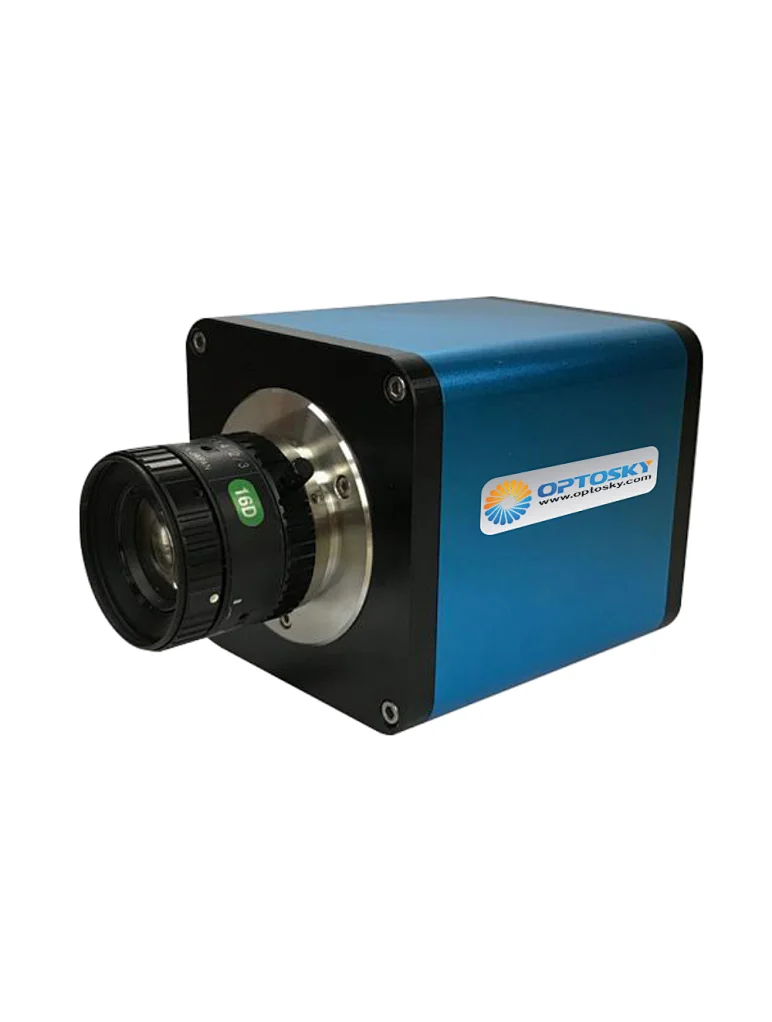

ATH1500 is newly designed optimized VNIR imager camera, the breakthrough compact size, light weight, working wavelength range 400-1000nm, especially fit to airborne. Besides size and weight advantages, it employs high spatial resolution, and spectral resolution, wide imaging range. ATH1500 consists of two parts, imaging lens and hyperspectral imager.
Quantity

Describe:
ATH1500 spectral camera is newly designed optimized VNIR imager camera, the breakthrough compact size, light weight, working wavelength range 400-1000nm, especially fit to airborne. Besides size and weight advantages, it employs high spatial resolution, and spectral resolution, wide imaging range. ATH1500 spectral camera consists of two parts, imaging lens and hyperspectral imager.
ATH1500 spectral camera employs 2048*1088pixels high performance CCD imaging components, clear imaging, low noise and good linearity.
ATH1500 spectral camera depends on perfect optical system design with high temperature stability, it provides excellent stability and sensitivity required by VNIR chemical imaging application industries. It can satisfy strict requirements in the lab, field, industrial application , and it can ensure good quality of the pharmaceutical drugs, food safety and agriculture analysis.

Feature:

  • Spectral Range:400-1000nm
  • Max Spatial Channels :2048
  • Max Spectral Channels :1088
  • Max FOV:51.7°(Depending on the lens)
  • Superior imaging performance
  • Data format is compatible with ENVI;
  • Dimensions:132mm x 66mm x 65mm;
  • Light weight:480g;
  • No mechanical scanning, high reliability;

Application:

  • Prospecting for geology and minerals;
  • Agriculture Monitoring: Crop condition and yield assessment
  • Forest pest and fire prevention monitoring;
  • Coastline and ocean monitoring;
  • Pasture monitoring;
  • Lake and watershed monitoring;
  • Remote sensing teaching and research ;
  • Industrial sorting;
  • Ecological environment protection and mine monitoring;
  • Water quality and soil monitoring;
