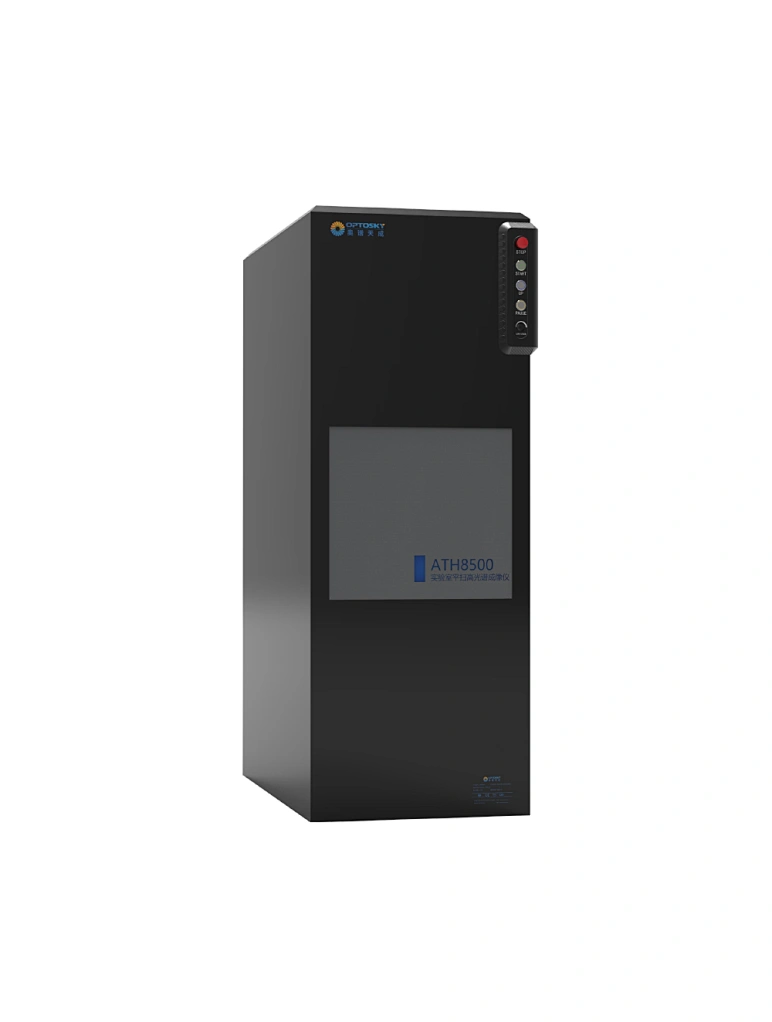

Lab Hyperspectral Imaging System

Lab Hyperspectral Imaging System
ATH8500
FOB
1 unit
1unit / Quarterly
China
The equipment combines technologies of hyperspectral imaging and HD camera, and it can acquire data possessing high spectral resolution and high spatial resolution, as a result of exploring spectral and spatial feature of materials. It can apply to sort out materials of tabaco, pharmaceutical drugs, foods, minerals, criminal document inspection, and true or fake identification etc.
Quantity

Description:

    The equipment combines technologies of hyperspectral imaging and HD camera, and it can acquire data possessing high spectral resolution and high spatial resolution, as a result of exploring spectral and spatial feature of materials. It can apply to sort out materials of tabaco, pharmaceutical drugs, foods, minerals, criminal document inspection, and true or fake identification etc.

    The system consists of  many components of hyperspectral camera ATH1500, high accuracy scanning platform, HD camera, and high stability light source, precision camera obscura etc.

    The core components are self-developed by Optosky, and they use 1-inch  CCD image sensor, with high sensitivity, high spectral resolution, large FOV, and superior imaging performance.

    The system can acquire hyperspectral data through precision scanning workbench, and coordinate with self-developed linear light source and dark enviroment can obtain stable standardize hyperspectral data.

    It employs 24-mega pixels HD camera, and combine technologies of hyperspectral imaging and HD camera taking, in order to realize perfect spatial resolution and hyperspectral resolution.


Feature:

  • Spectral Range: 400-5300 (Customized)
  • Max. Spatial Channels: 2048x2048 (Different by model)
  • Max. Spectral Channels: 1088 (Different by model)
  • Superior imaging performance
  • Compatible with ENVI;
  • Dimension: 162 x 80 x 60 cm;
  • Weight: 60kg (Different by model)
  • Built-in smart calibration white version;
  • A variety of stray light elimination design, high imaging quality;
  • High-definition VIS camera, capable of image fusion;
  • High responsibility.


Application:

  • Artworks and ancient paintings;
  • Criminal investigation and document inspection operations;
  • Pharmaceutical companies: anti-counterfeiting of Chinese medicinal materials;
  • Textile: copy of patterns, copy of pictures;
  • Mineral screening;
  • Forensic appraisal: document examination appraisal;
  • Agriculture: Scanning of leaves and tobacco;
  • Scanning and restoration of cultural relics, mural restoration
