Multirotor Unmanned Aircraft System

Multirotor Unmanned Aircraft System

Model NO. ATH9010-A

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

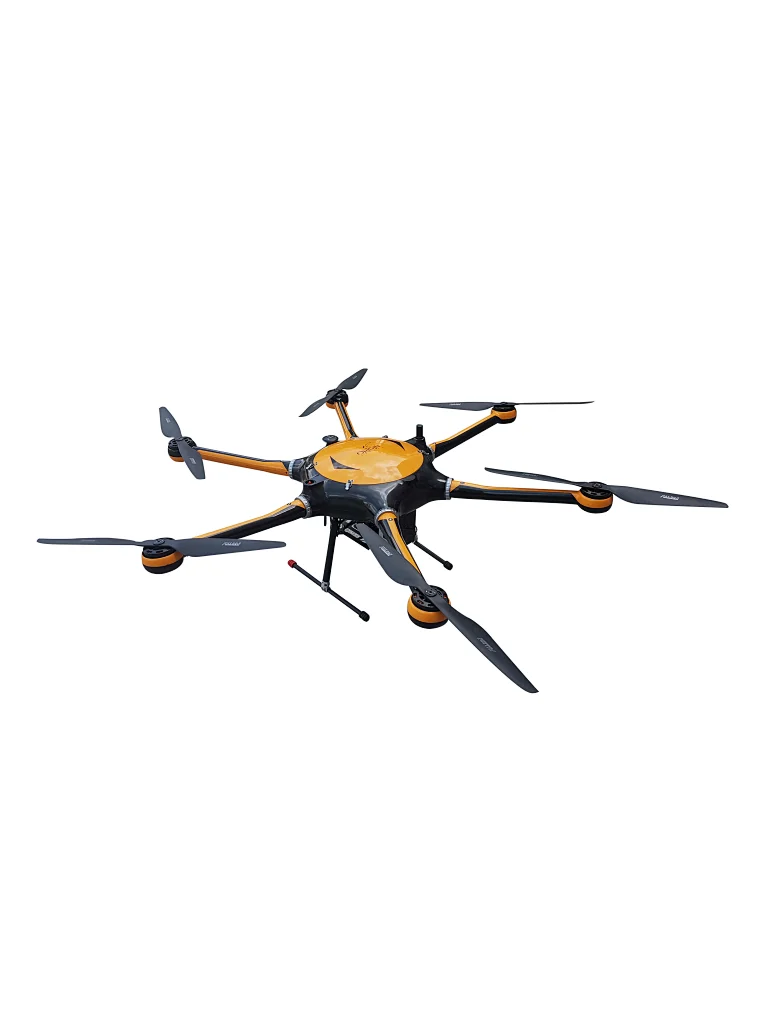

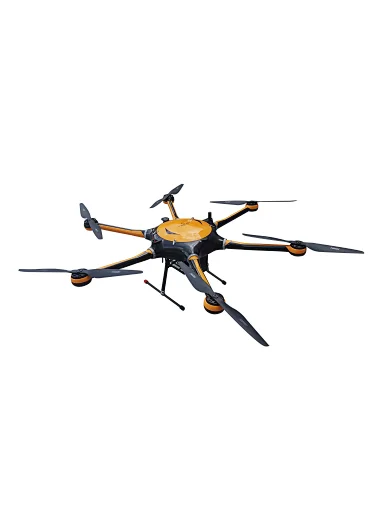

Optosky electric hexacopter drone, available on demand to quickly change different payload equipment, it can be adapted to lidar and dual-lens tilt head.

Quantity

Contact Now add to cart

Description:
  Optosky electric hexacopter drone, available on demand to quickly change different payload equipment, it can be adapted to lidar and dual-lens tilt head. Experienced thousands of square kilometers of cadastre the test of the measurement project, continuous improvement and optimization, really close to Project requirements, it is a rare good helper for high-precision aerial survey.

Features:

• Up to 50 minutes under 5kg load
• Intelligent operation, personnel can get started after simple training
• Three-redundant flight control, dual-redundant compass, battery redundancy, six-rotor design, safety guarantee
• One-click load replacement, fast and convenient
• Equipped with RTK/PPK differential processing system
• Realize the flight function of following terrain fluctuations
• The connecting parts adopt quick release structure
• Avoid magnetic compass interference and improve flight safety

 System parameters

Size	1620×1410×500mm	Diagonal Size (Propellers Excluded)	1500mm
Standard load	5kg	Standard flight time	>50min
Max load	8kg	Max Flight Time	>90min
Flight speed	0 ~15m/s	Max Service Ceiling Above Sea Level	5000m
The maximum takeoff mass (MTOM)	22kg	Max Wind Speed Resistance	12.5m/s
Battery	32000mAh × 2 or 25000mAh× 2	Differential mode	RTK/PPK
Operating temperature	-20~45℃	Box size	790×615×360mm

Recommended load
Airborne Lidar RZ1350

Laser ranging range	1350m
Maximum scan angle	330°
Laser maximum pulse emission frequency	820kHz
Scanning Elevation Accuracy	≤5cm（flight high 200m，RMS）
Scan plane accuracy	≤8cm（flight high 200m，RMS）

Airborne LidarRZ9

Laser ranging range	775m（50KHz) to 300m(500KHz)
Maximum scan angle	360°
Laser maximum pulse emission frequency	500，200，50 kHz（Can be set）
Scanning Elevation Accuracy	≤8cm（flight high 200m，RMS）
Scan plane accuracy	≤20cm（flight high 200m，RMS）

Datasheet Download:

ATH9010-A_Optosky Electric Hexacopter Drone_2022.1.12.pdf
