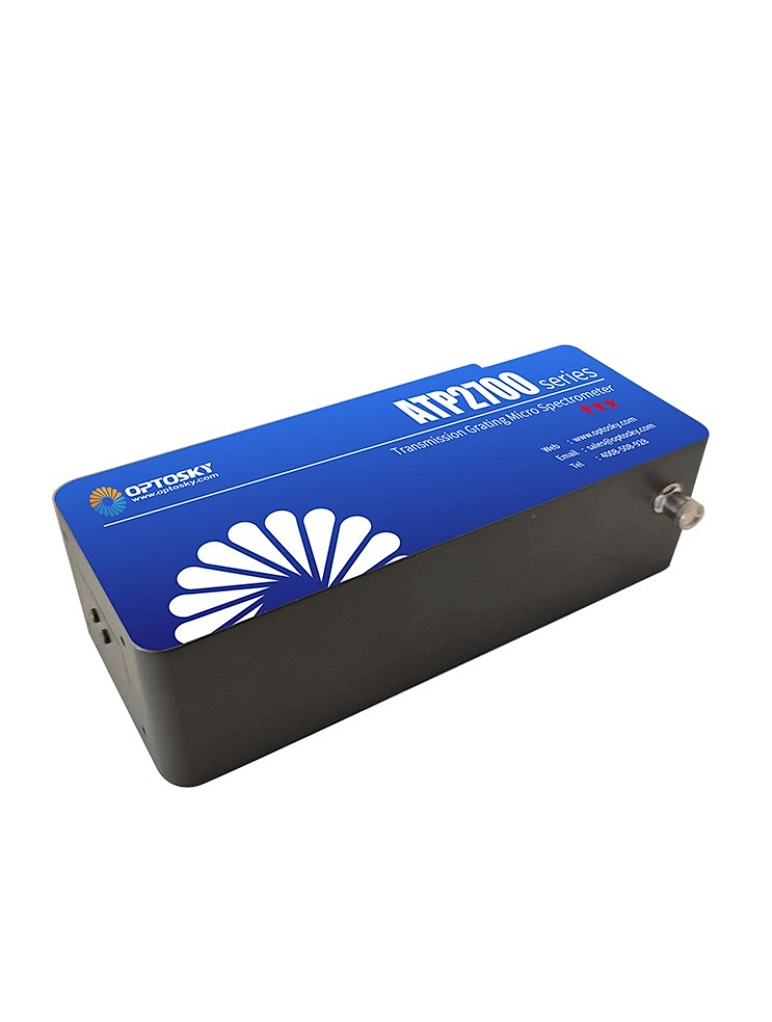

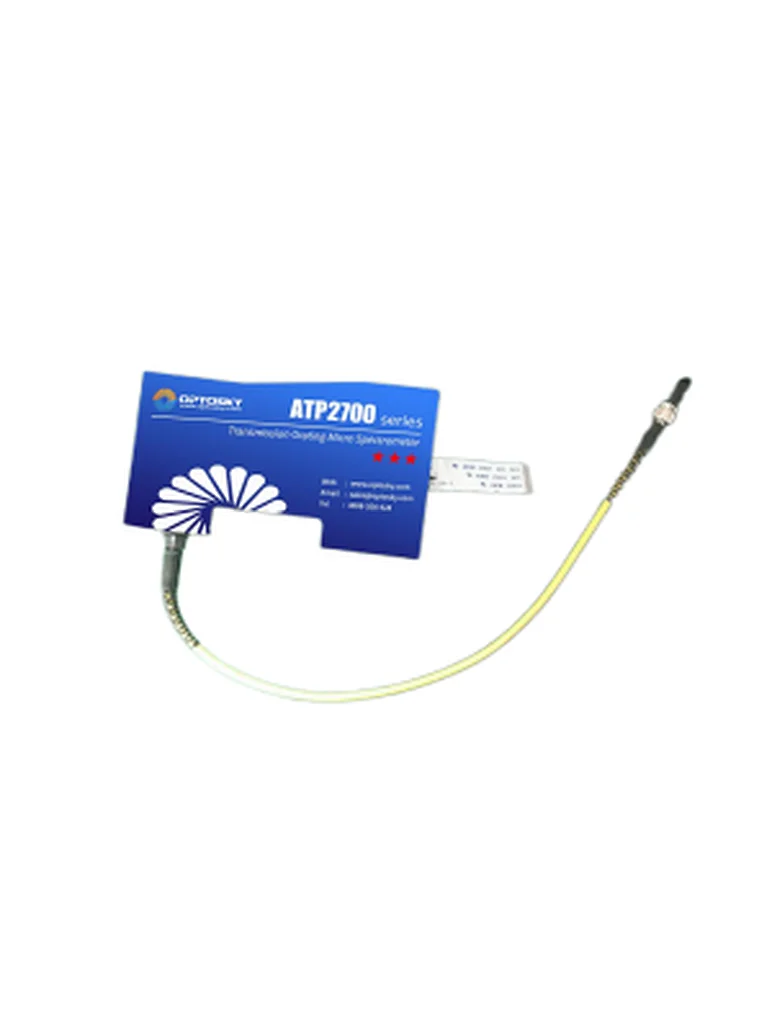

Transmission Gratings Micro Spectrometer
ATP2700
EXW
1
Made in China
ATP2700 high-sensitivity micro-spectrometer is a high-sensitivity, high-transmittance micro-fiber spectrometer, which is designed with a high-efficiency optical system, making its sensitivity 3-4 times stronger than conventional fiber optic spectrometers
Quantity
Description
ATP2700 is a micro spectrometer with high sensitivity and high transmittance. It adopts moreefficient opticalbench design, which makes its sensitivity 3-4 times higher than routine micro spectrometers. It uses a large numerical aperture optical design, which can accept all photons in the optical fiber (numerical aperture 0.22). This makes it especially suitable for the analysis of low signals, such as gas analysis Raman spectrometers, fluorescence spectrometers, etc.
ATP2700uses high-sensitive linear CMOS from Hamamatsu in Japan. Optosky specially customized low noise CMOS signal processing circuit, which greatly reduces the noise of the sensor and obtains an excellent signal-to-noise ratio (about 2 times higher than that of similar models). Its sensor is a 2048-pixel CCD, and the frame rate of CCD signal acquisition can reach up to 4Kfps. It outputs spectral data to PC via USB 2.0 or RS232 interface. ATP2700 works with +5VDC power supply provided by USB.
In order to obtain better performance,ATP2700 can also be equipped with other types of detectors, such as cooled detector (ATP5700),TE-cooled back-illuminatedCCD (ATP5700P, ATP5700R), deep-cooling -70°C detectors (ATP5700DC).
ATP2700 is a micro spectrometer with high sensitivity and high transmittance. It adopts moreefficient opticalbench design, which makes its sensitivity 3-4 times higher than routine micro spectrometers. It uses a large numerical aperture optical design, which can accept all photons in the optical fiber (numerical aperture 0.22). This makes it especially suitable for the analysis of low signals, such as gas analysis Raman spectrometers, fluorescence spectrometers, etc.
ATP2700uses high-sensitive linear CMOS from Hamamatsu in Japan. Optosky specially customized low noise CMOS signal processing circuit, which greatly reduces the noise of the sensor and obtains an excellent signal-to-noise ratio (about 2 times higher than that of similar models). Its sensor is a 2048-pixel CCD, and the frame rate of CCD signal acquisition can reach up to 4Kfps. It outputs spectral data to PC via USB 2.0 or RS232 interface. ATP2700 works with +5VDC power supply provided by USB.
In order to obtain better performance,ATP2700 can also be equipped with other types of detectors, such as cooled detector (ATP5700),TE-cooled back-illuminatedCCD (ATP5700P, ATP5700R), deep-cooling -70°C detectors (ATP5700DC).
Model | Features |
ATP2700 | Standard |
ATP2700SH | Ultra high frame rate, up to 4Kfps |
ATP2700D | Ultra-low noise, noise is only 1/6 of ATP2700 |
Features
- High sensitivity, high transmittance
- Maximum frame rate: ≥4000 fps
- Hamamatsu Detector: low noise CMOS
- Detector pixels: 2048 pixels
- Spectral resolution: 0.1-3nm (depending on spectral range and slit width)
- Integration time: 0.2ms-60s
- Power supply: DC 5V (USB power supply)
- ADC:16bit,10MSPS
- Fiber output: SMA905
- Data output: USB2.0 (High speed) or UART
- 20-pin dual UART
Application
Raman spectrometer
Industrial measurement sensors
LED Spectrophotometer
Fluorophotometer
Transmittance detection
Reflectance detection
Ultraviolet gas analyzer
MI-parameter Meter
