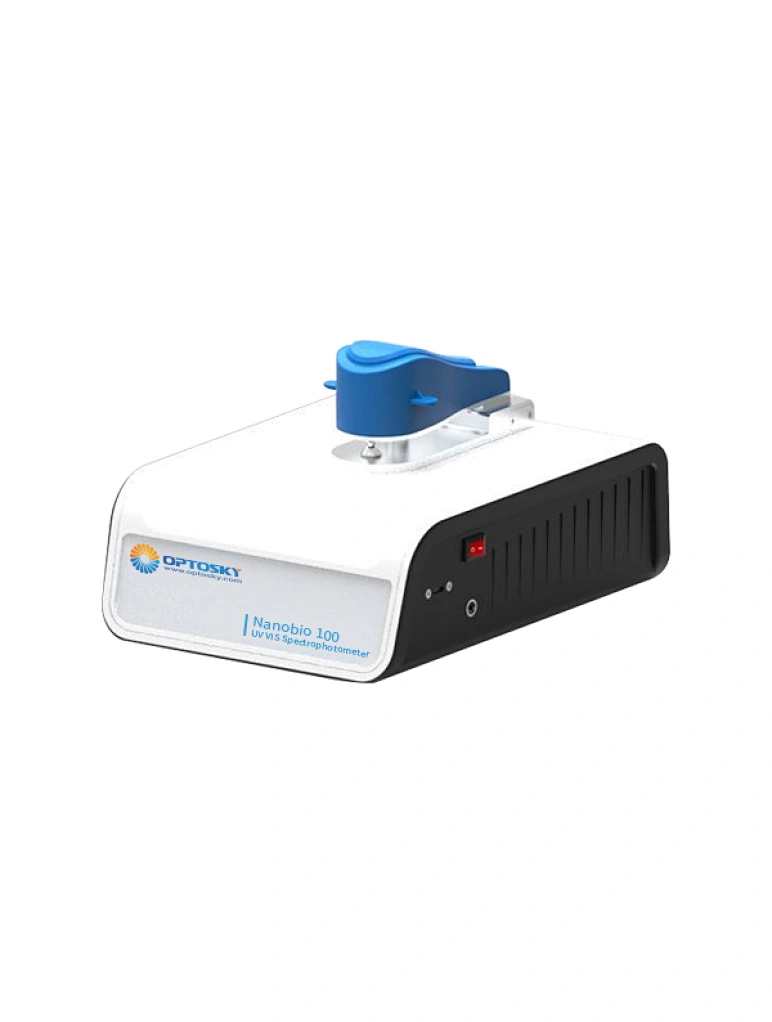

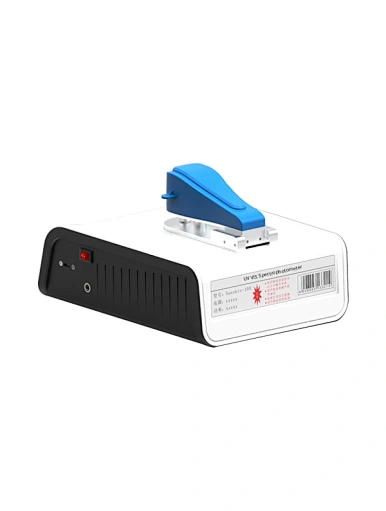

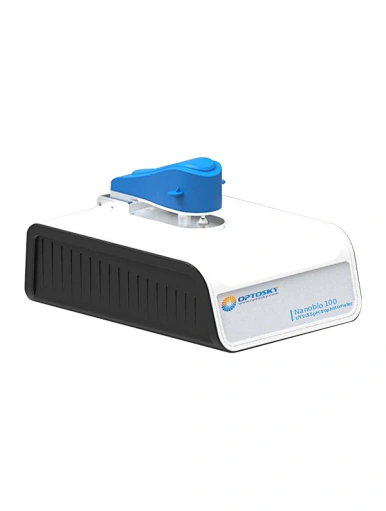

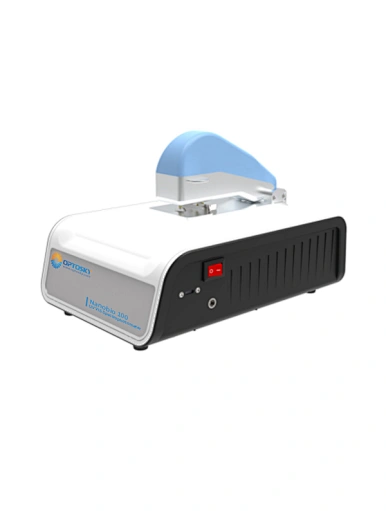

NanoDrop Microvolume Spectrophotometers
Parameters
|
Specifications
|
Notes
|
Sample Volume
|
0.5 - 2.0 μL
|
|
Measurement Cycle
|
~ 3 seconds
|
|
Optic Path Length
|
1.0 mm
|
0.5,0.25 and 0.05mm is optional
|
Wavelength Range
|
190 ~ 1000 nm
|
|
Light Source
|
Xenon flash lamp
|
|
Detector Type
|
2048 pixel linear CCD array
|
|
Wavelength Accuracy
|
1 nm
|
|
Wavelength Resolution
|
≤ 2 nm (FWHM at Hg 546 nm)
|
|
Absorbance Precision
|
0.003 Abs
|
|
AbsorbanceAccuracy
|
1% ( 0.76Abs at 257nm )
|
|
Minimum Detection Limit
|
2 ng/μL (dsDNA)
|
|
Max Concentration
|
15,000 ng/μL (dsDNA)
|
|
Absorbance Range
|
0.04 ~ 300 (10 mm)
|
|
DNA range
|
2 ~ 4500ng/ul (dsDNA)
2~ 15000ng/μL(Optional) |
|
Surface Construction
|
304 stainless steel and quartz fiber
|
|
Operating Voltage
|
12V DC@2A
|
|
Power Consumption
|
24 W
|
|
Standby Power
|
1.5 W
|
|
Data interface
|
USB2.0
|
|
Dimensions
|
290 X 210 X 150 mm
|
|
Weight
|
2.6kg
|
