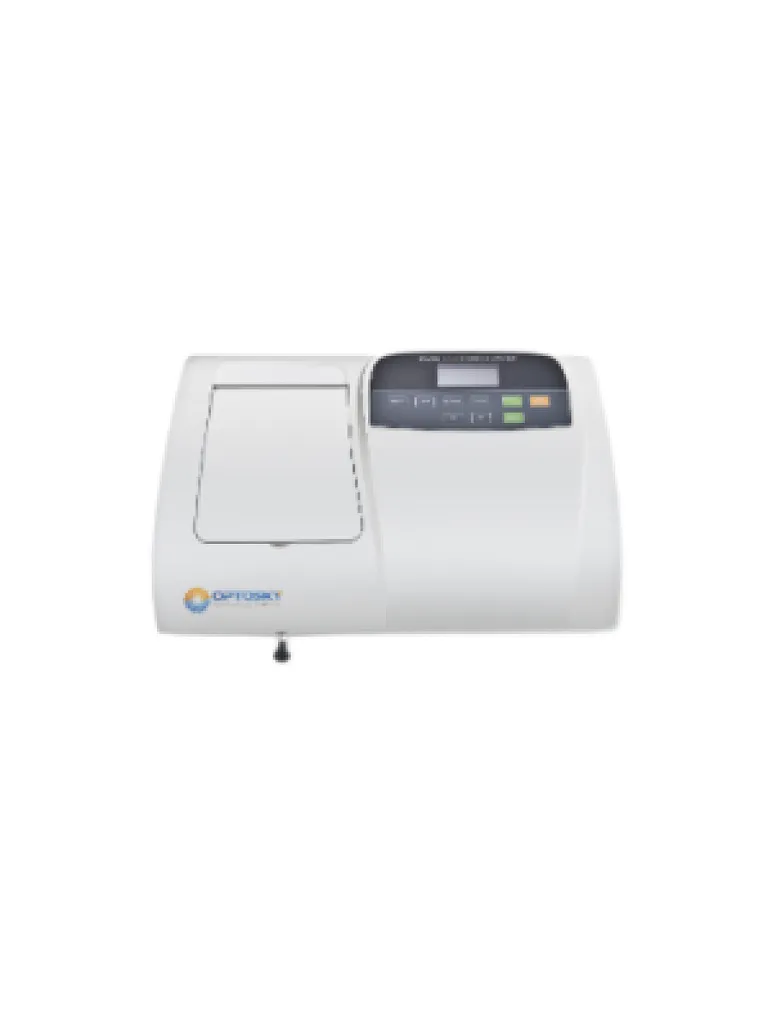

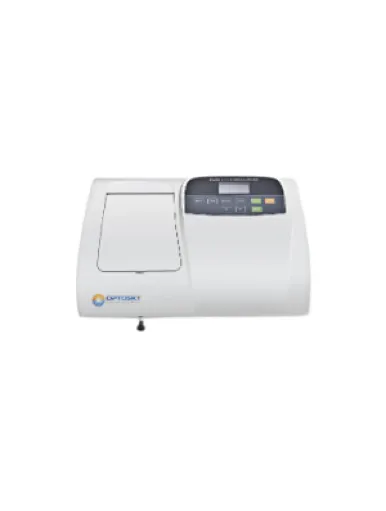

UV-Visible Spectrophotometer

UV-Visible Spectrophotometer

Model NO. UV-Vis-5100

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

UV-Vis-5100 single beam UV-Visible spectrophotometer with a spectral range of 190-1000nm.

Quantity

Contact Now add to cart

Description
UV-Vis-5100 single beam UV-Visible spectrophotometer with a spectral range of 190-1000nm.


Model	Description
UV-Vis-5100	Standard
UV-Vis-5100P	Low stray light ≤0.05T@220/360nm

Features

2.5″ high-definition LCD Display screen

Hamamatsu Tungsten and Deuterium Lamp.  Hamamatsu Tungsten and deuterium lamp ensures high photometric accuracy and reliability

Standard Curve, Quick Establishing.It’s easy and quick to establish various standard curve according to different samples and find the concentration of unknown samples

USB Data port & Printer Parallel Port

Readout 5 lines result up to 200 test result

Automatic Wavelength Setting

 Application

Quality control

General research

Pharmaceuticals

Biochemical and clinical laboratory applications.



Technical Specification

Model	UV-Vis-5100
Optical System	Single beam (1200 lines/mm grating)
Wavelength Range	190-1000nm
Bandwidth	2nm
Wavelength Accuracy	±1nm
Wavelength Repeatability	0.5nm
Wavelength Setting	Auto
Wavelength Resolution	0.1nm
Photometric Accuracy	±0.5%T
Photometric Repeatability	≤0.2%T
Photometric Range	-0.3-3A, 0-200%T, 0-9999C
Photometric  Mode	Transmittance, Absorbance, Concentration and Factor
Stray Light	≤0.1%T
Stability	≤0.002A/30min
Display	2.5″ LCD display screen
Detector	Silicon Photodiode
Light Source	Tungsten Halogen Lamp
Data Output Port	USB
Printer Port	Parallel Port
Power Requirements	AC 85~250V
Dimension	420*280*180mm
Weight	10kg

Standard Accessories

Item	Description	Quantity	Unit
1	Spectrophotometer	1	set
2	Glass cuvette 1cm	4	pcs
3	Power cord	1	pcs
4	User’s Manual	1	pcs
5	Dust Cover	1	pcs



Datasheet Download:

UV-Vis-5100_UV-Visible Spectrophotometer_Datasheet_20221107.pdf
