UV-Visible Spectrophotometer

UV-Visible Spectrophotometer

Model NO. UV-Vis-5800

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

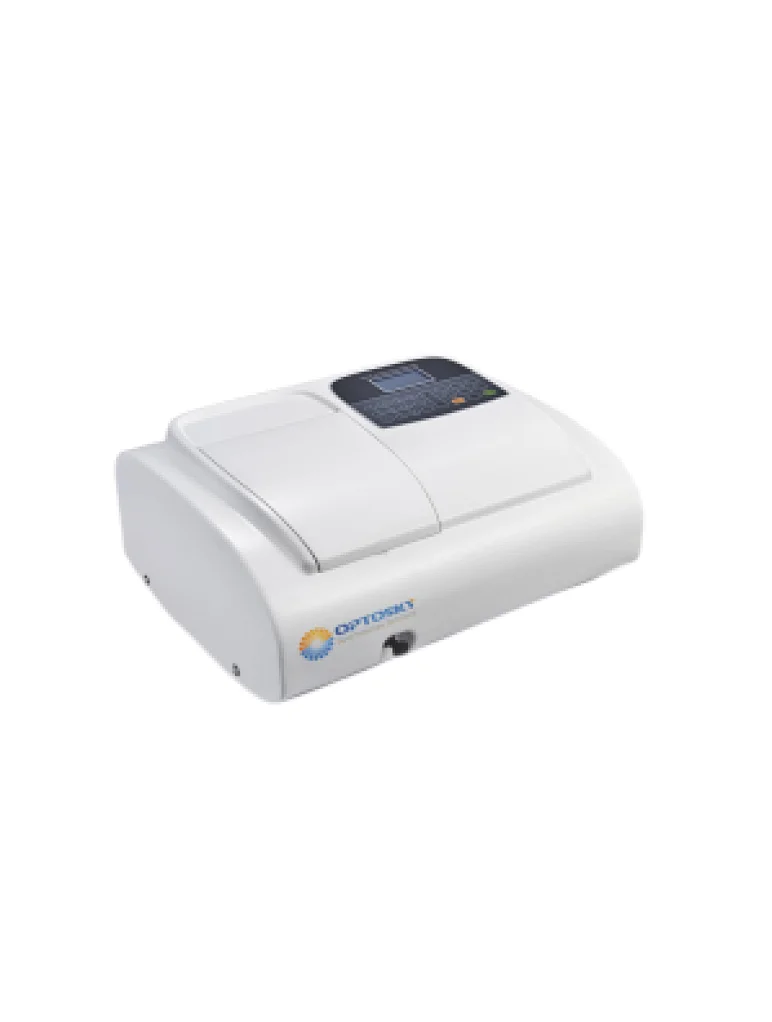

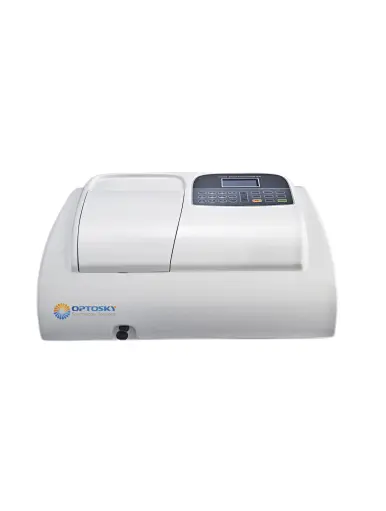

UV-Vis-5800 Double beam UV-Visible spectrophotometer with a spectral range of 190-1000nm.

Quantity

Contact Now add to cart

Description
UV-Vis-5800 Double beam UV-Visible spectrophotometer with a spectral range of 190-1000nm
Order Guide

Model	Wavelength range	Bandwidth	Wavelength accuracy	Photometric accuracy
Vis5800-1-A	320-1100nm	2nm	±0.5nm	±0.3%T
Vis5800-1-BC	320-1100nm	2nm	±0.5nm	±0.3%T
UV-Vis 5800-1-A	190-1100nm	2nm	±0.5nm	±0.3%T
UV-Vis 5800-1-BC	190-1100nm	2nm	±0.5nm	±0.3%T
Vis5800-2-A	320-1100nm	2nm	±0.8nm	±0.3%T
Vis5800-2-BC	320-1100nm	2nm	±0.8nm	±0.3%T
UV-Vis 5800-2-A	190-1100nm	2nm	±0.8nm	±0.3%T
UV-Vis 5800-2-BC	190-1100nm	2nm	±0.8nm	±0.3%T

Remarks:
1. Wavelength Accuracy:
5800-1: ± 0.5nm
5800-2: ± 0.8nm
2. Software functions:
A：Quantitative analysis
B：Dynamics/Multi-wavelength/Quantitative analysis/Wavelength scanning
C：PC（commucation）
3.Range
Vis5800: 320-1100nm
UV-Vis 5800: 190-1100nm

Features

Solid Aluminum Optical Breadboard

Automatic Wavelength Setting

User-friendly Numerical Keyboard design

USB & Parallel Port

Hamamatsu Tungsten & Deuterium Lamp

Self-build Standard Curve.A calibration standard curve is used to determine the concentration of an unknown sample

GMP / GLP Laboratory Compliance

Optional 8-cell Holder, Micro cuvettes, Thermostatic sampling, reflectance accessories

 Application

Quality control

General research

Pharmaceuticals

Biochemical and clinical laboratory applications.



Technical Specification

Model	UV-Vis-5800
Wavelength Range	190-1100nm
Optical System	Double beam
Bandwidth	2nm
Wavelength Accuracy	± 0.5nm/± 0.8nm
Wavelength Repeatability	≤0.2nm
Wavelength Setting	Auto
Photometric Accuracy	±0.3%T / ±0.2%T
Photometric Repeatability	≤0.1%T
Photometric Range	-0.3-3A, 0-200%T, 0-9999C
Stability	≤0.001A/30min
Stray Light	≤0.05%T@220nm, 360nm
Output	USB port & Parallel Port
Display	large LCD screen
Light Source	Tungsten Halogen Lamp
Detector	Silicon Photodiode
Power Requirements	AC 220V/50Hz or AC 110V/60Hz
Dimension	460*360*225mm
Weight	16/18kg

Standard Accessories

Item	Description	Quantity	Unit
1	Spectrophotometer	1	set
2	Glass cuvette 1cm	4	pcs
3	Power cord	1	pcs
4	User’s Manual	1	pcs
5	Dust Cover	1	pcs




Datasheet Download:

UV-Vis-5800_UV-Visible Spectrophotometer_Datasheet_20221108 .pdf
