Double Beam UV/Vis Spectrophotometer

Double Beam UV/Vis Spectrophotometer

Model NO. UV-Vis-8000TP

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

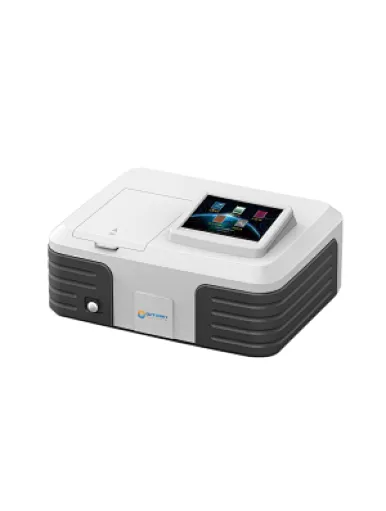

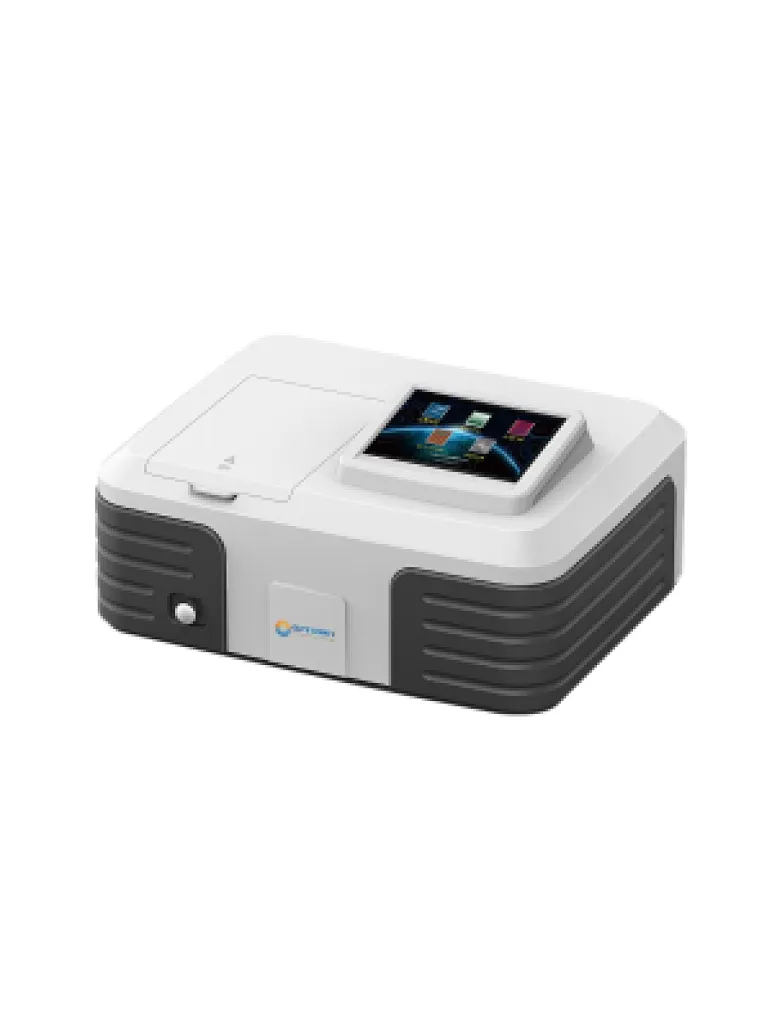

UV-Vis-8000TP Double beam UV-Vis Spectrophotometer with large 10″ touch screen

Quantity

Contact Now add to cart

Description
UV-Vis-8000TP Double beam UV-Vis Spectrophotometer with large 10″ touch screen

Order Guide

Model	UV-Vis-8000TP	UV-Vis-8000TP Plus
Bandwidth	1.8 nm	0.5nm / 1nm (Optional)

Features

Double beam optical path and dual detector for high resolution

Best gratingfor low stray light, andimproved the stability and reliability

10″ touch screen, 32G memory, Bluetooth

Three modes of Host, Computer and Mobile App

Multiples functions on spectrophotometer,wavelength scanning, standard curve, kinetics, multiple wavelength scanning, DNA/Protein

Solid Aluminum opticalbreadboard 16mm thick ensure stability and reliability

Auto calibration function, Auto calibrate baseline, wavelength, dark current to standard curve

USB & Parallel Port, Easy data storage and printing function

Hamamatsu Tungsten & Deuterium Lamp

GMP / GLP Laboratory Compliance

Optional 8-cell Holder, Micro cuvettes, Thermostatic sampling, reflectance accessories

3D Graphs display


Application

Quality control

General research

Pharmaceuticals

Biochemical and clinical laboratory applications.

Technical Specification

Model	UV-Vis-8000TP	UV-Vis-8000TP plus
Wavelength Range	190-1100nm
Bandwidth	1.8 nm	0.5nm / 1nm (Optional)
Wavelength Accuracy	±0.3 nm
Stray light	0.03%T @ 220 nm, 360 nm
Wavelength Repeatability	≤0.1nm
Photometric Accuracy	±0.3T(0-100%T)
	±0.002Abs(0-0.5Abs)
	±0.004Abs(0.5-1.0Abs）
Photometric Repeatability	≤0.05%6T(0-100%6T)
	0.001Abs(0-0.5Abs)
	0.002Abs(0.5-1.0Abs)
Stability	≤0.0005A/h@250nm, 500nm
Photometric Range	0-200%T, -0.3-3.0A, 0-9999C
Baseline flatness	±0.0008A
Display	800*480 touch screen
Output	USB port & Parallel Port
Light source	Tungsten & Deuterium Lamp
Power Requirements	AC 220V/50Hz or AC 110v/60Hz
Detector	Silicon Photodiode
Dimension	630*430*210nm
Weight	28kg

Standard Accessories

Item	Description	Quantity	Unit
1	Spectrophotometer	1	set
2	1cm Glass cuvette	4	pcs
3	Power cord	1	pcs
4	User’s Manual	1	pcs
5	1 cm quartz cuvette	2	pcs
6	Dust Cover	1	pcs

Datasheet Download:

UV-Vis-8000TP_UV-Visible Spectrophotometer_Datasheet_20221108 .pdf
