Double Beam UV/VIS Spectrophotometer

Double Beam UV/VIS Spectrophotometer

Model NO. UV-Vis-9000

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

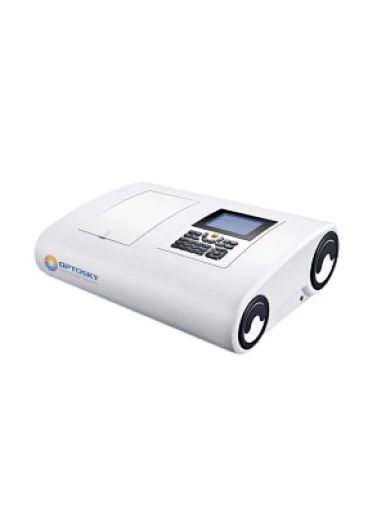

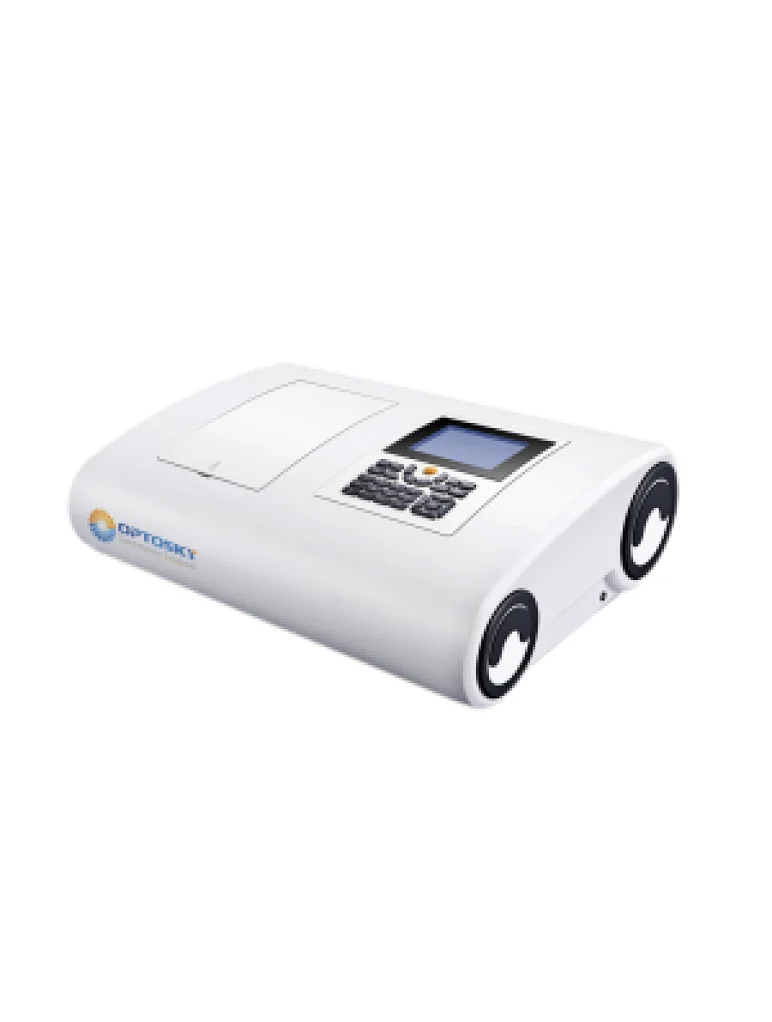

UV-Vis-9000 series are wide 7 ″screen double beam spectrophotometer with dual beam long light path reach up to 0.5nm, result in high stability and accuracy.

Quantity

Contact Now add to cart

Description
UV-Vis-9000 series are wide 7 ″screen double beam spectrophotometer with dual beam long light path reach up to 0.5nm, result in high stability and accuracy.

Order Guide

Model	UV-Vis-9000	UV-Vis-9000 Plus-1	UV-Vis-9000 Plus-2
Bandwidth	1.8 nm	1 nm	0.5 nm

Features

Dual Beam Light Path Designed for low stray light and high stability

LongOpticalpathof 520mm reach bandwidth up to 0.5nm

Multiples functions on spectrophotometer, wavelength scanning, standard curve, kinetics, multiple wavelength scanning, DNA/Protein

Solid Aluminum optical breadboard 16mm thick ensure stability and reliability

Auto calibration function, Auto calibrate baseline, wavelength, dark current to standard curve

7″ large LCD display screen

USB & Parallel Port

Hamamatsu Tungsten & Deuterium Lamp

GMP / GLP Laboratory Compliance

Optional 8-cell Holder, Micro cuvettes, Thermostatic sampling, reflectance accessories

 Application

Quality control

General research

Pharmaceuticals

Biochemical and clinical laboratory applications.



Technical Specification

Model	UV-Vis-9000		UV-Vis-9000 Plus-1	UV-Vis-9000 Plus-2
Bandwidth	1.8nm		1nm	0.5nm
Optical System	Double Beam (1200 Lines/mm Grating)
Wavelength Range	190-1100nm
Wavelength Accuracy	±0.3nm
Wavelength Repeatability	0.2nm
Photometric Accuracy	±0.2%T(0-100%T)
Photometric Repeatability	≤0.1%T(0-100%T)
Photometric Range	-0.3-3A, 0-200%T, 0-9999C
Stability	≤0.0005A/h@250nm, 500nm
Baseline Flatness	± 0.001A/h
Stray Light	≤0.03%T @ 220nm, 360nm
Output	USB port & Parallel Port
Display	320*240 Dots LCD
Lamps	Tungsten Lamp & Deuterium Lamp
Detector	Silicon Photodiode
Power Requirements	AC 220V/50Hz or AC 110V/60Hz
Dimension	625*430*206mm
Weight	32/32/34kg

Standard Accessories

Item	Description	Quantity	Unit
1	Spectrophotometer	1	set
2	1cm Glass cuvette	4	pcs
3	Power cord	1	pcs
4	User’s Manual	1	pcs
5	1 cm quartz cuvette	2	pcs
6	Dust Cover	1	pcs




Datasheet Download:

UV-Vis-9000_UV-Visible Spectrophotometer_Datasheet_20221108 .pdf
