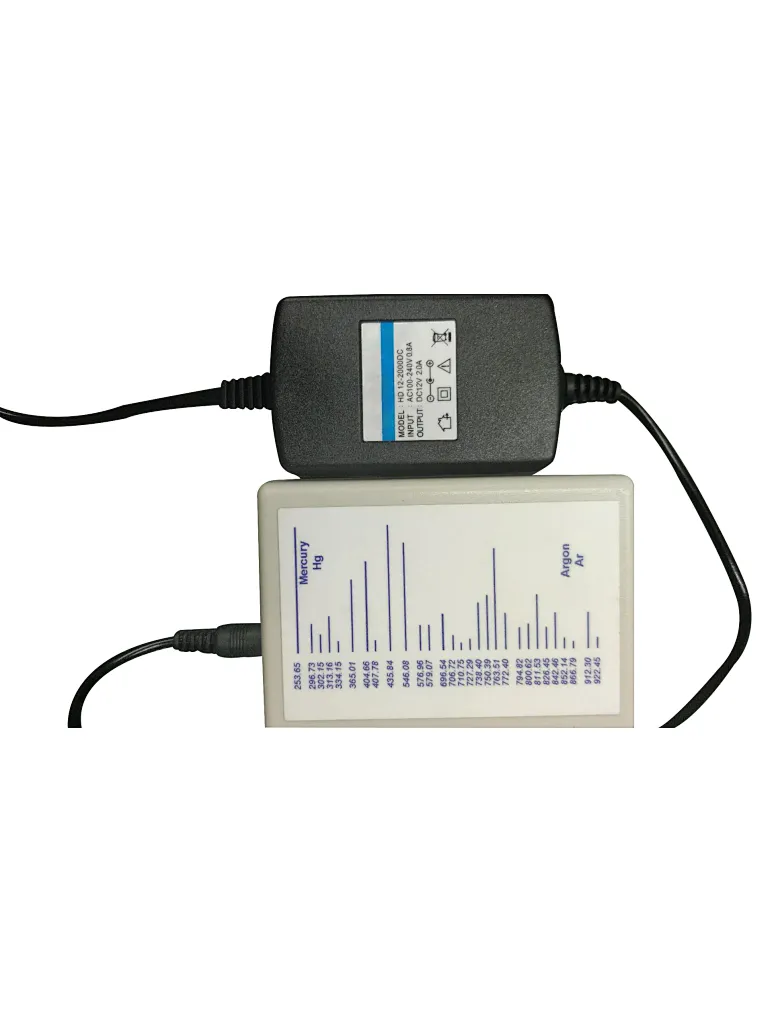

253-1700nm Wavelength Calibration Light Source

253-1700nm Wavelength Calibration Light Source

Model NO. ATG1500

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Spectrometer wavelength calibration sources are available for convenient, reliable spectrometer calibration across UV-NIR wavelengths.

Quantity

Contact Now add to cart

Description:
Spectrometer wavelength calibration sources are available for convenient, reliable spectrometer calibration across UV-NIR wavelengths.
It can be used in various optical fiber interface type spectral analysis instruments for wavelength calibration;
It produces low-pressure mercury and argon atomic emission lines in the wavelength range 253-1700nm. For quick and reliable calibration of spectral analysis instruments!
Feature:

1. Life: >3000 hours
2. Low power, only 3 watts;
3. Size: 105mm x 75mm x 40mm;
4. Wavelength range: 253~1700nm;
5. SMA905 interface or PC/FC interface output;
6. Power Supply: 12V 2A DC

Application:
Wavelength calibration for UV-NIR spectrometers

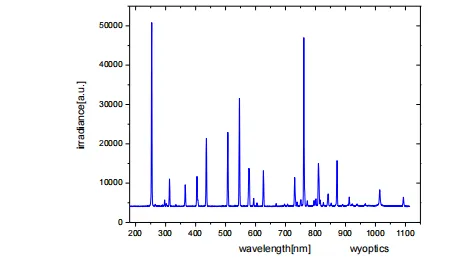

Spectral graph:



Wavelength Range:	253-1700nm
Sources:	Mercury Argon
Life	>3000 hours
Amplitude Stabilization:	~1 minute
Fiber Connector:	SMA 905
Aperture:	3mm
Dimensions:	10.5 x 7.5 x 4 cm (without feet)
Power:	3W
Power Supply:	12V 2A DC
Weight:	180g

Enable GingerCannot connect to Ginger Check your internet connection or reload the browserDisable in this text fieldRephraseRephrase current sentence0Edit in Ginger×

Datasheet Download:

ATG1500_Datasheet_V2.1_20220609.pdf
