Multi-Channel Spectrometers

Multi-Channel Spectrometers

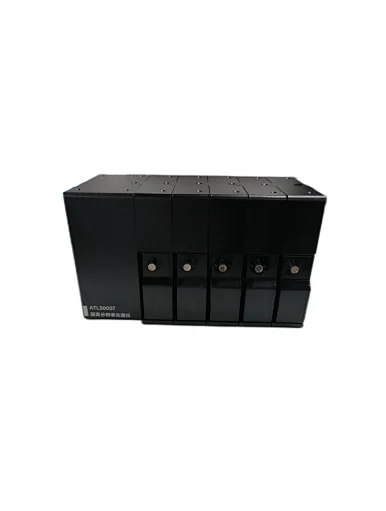

Model NO. ATL30007

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

Quantity

Contact Now add to cart

Description:

With 20 years of experience in the development of optical fiber spectrometers, Optosky has launched a new generation of high-performance ultra-thin optical fiber spectrometers: ATL30007 has built-in 5 ultra -high resolution optical fiber spectrometers, each of which uses 4096-pixel high-sensitivity linear CMOS, and special Customized ultra-low noise CMOS signal processing circuit, which greatly reduces the noise of the sensor, obtains an excellent signal-to-noise ratio (about 2 times higher than similar competitors), and improves the measurement reliability of ATL30007 Multi-Channel spectrometer, and the measurement results do not follow The environmental temperature changes, which is the best level in the industry.

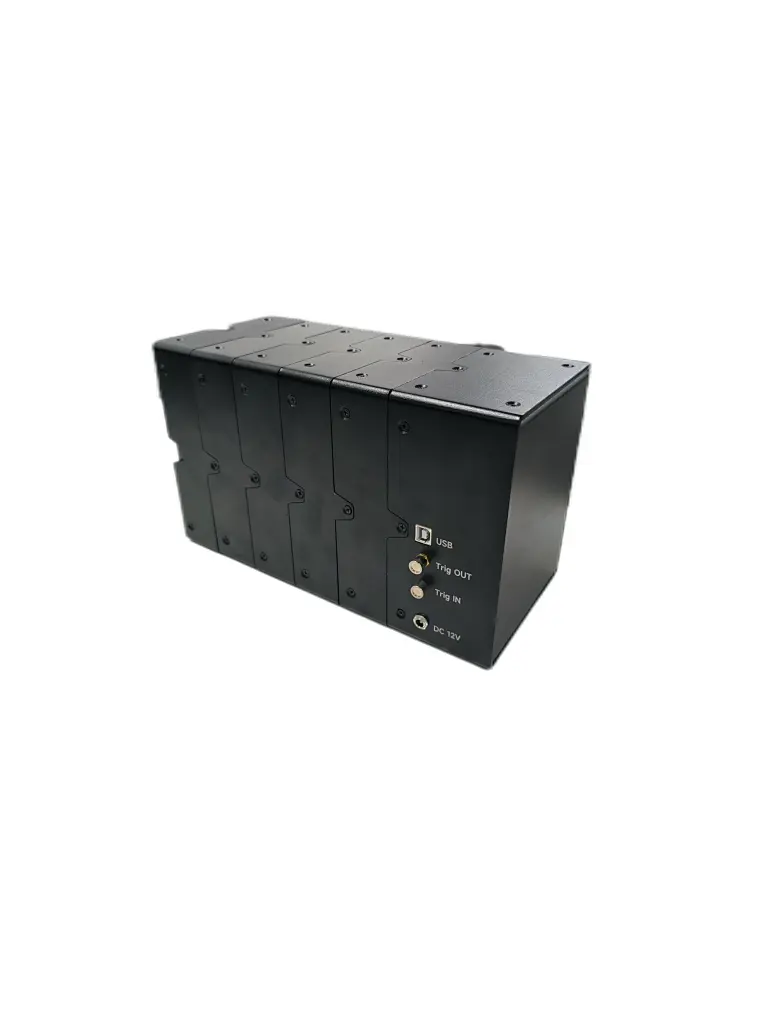

ATL30007 Multi-Channel spectrometer can receive SMA905 optical fiber input light or free space light, and output the measured spectrum data through USB2.0 or UART port.

ATL30007 Multi-Channel spectrometer only needs a 12V DC power supply or USB power supply, which is very easy to integrate and use.
You can select the right option from our range of detectors, choose different slits and gratings: anything is possible.

Feature:

• Detector: Linear CMOS
  (built-in 5 spectrometers)
• Probe pixels: 4096 × 5 pixels
• Ultra-low-noise CCD signal processing cir cuit
• Maximum spectral range: 200-920nm ( depending on demand)
• Spectral resolution: 0.087-0.16 nm (depending on the spectral range, slit width)
• Optical path structure: Cross C-T
• Integration time: 1ms-130s
• Power supply: DC 12V ± 10%
• Digital bit depth: 16 bit
• Optical input interface: SMA905
• Data output interface: USB2.0

Application:

• The LIBS, Plasma emits light
• Laser wavelength measurement
• Spectral analysis / radiative spectroscopic analysis / spectrophotometric analysis
• Controlled thermonuclear fusion
• Low-pressure plasma spectroscopy
• Detection Dielectric blocking discharge plasmaspectroscopy detection
• Plasma processing process analysis

Detector
Type	Line Ray CMOS
Spectral Range	200-920nm
Effective pixel	4096 × 5 pixels
Pixel size	7 × 200 μm
Full-scale Range	~200ke-
Sensitivity	1300 V/(lx·s)
Dark Noise	0.4mV rms
Optical Parameters
Wavelength	200-920nm ( depending on demand)
Resolution	0.087-0.16 nm (depending on the spectral range, slit width)
SNR	> 450:1
Dynamic Range	3000：1
Optical Path
Optical Design	F/4 asymmetric-crossed C-T
Injection slit width	5, 10um optical and customizable
Input interface	SMA905 or free space
Electrical Parameters
Integration Time	0.1 ms ~ 130 s
Data Port	USB 2.0
ADC bit depth	16 bit
Power Supply	DC 12 V (type @12V)
Working current	3A@ type
Storage Temp.	-30°C to +70°C
Operating Temp	-25°C to +50°C
Working Humidity	< 90%RH (No dew)
Physical parameters
Size	35.5×17.2×13.4 cm3
Weight	3.7 kg

Datasheet Download:

ATL30007_Datasheet_V3.1.20220902.pdf
