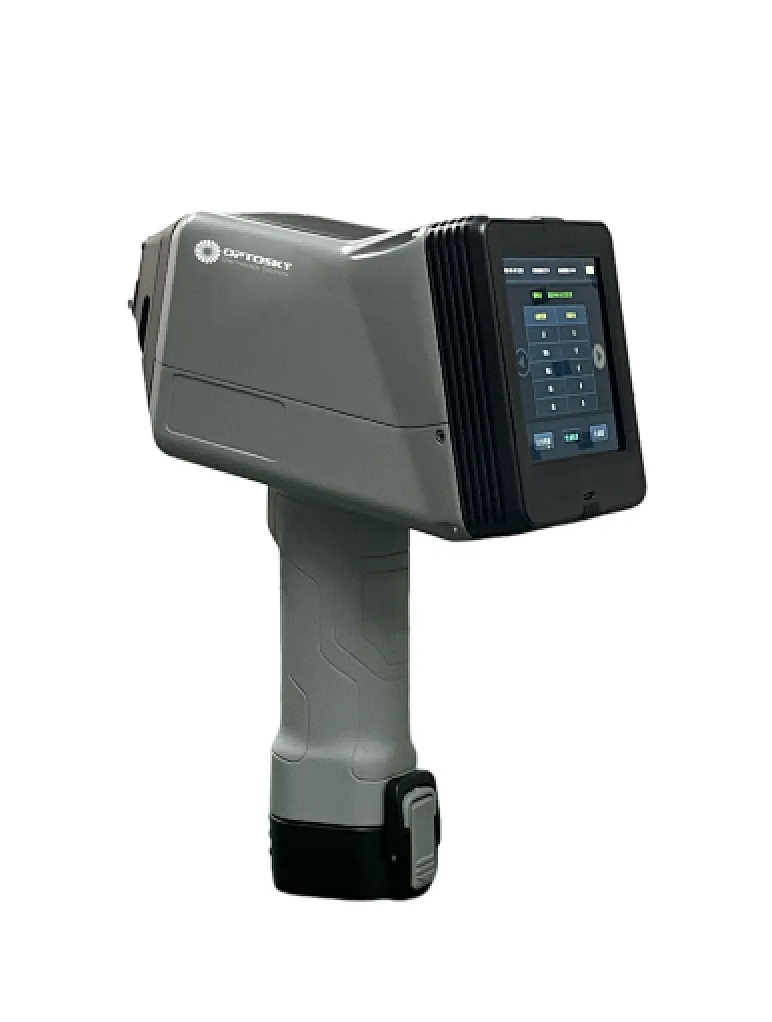

Handheld LIBS Analyzer

Handheld LIBS Analyzer
ATL6000
EXWORK
1
1 / Month
Made in China
Laser-induced breakdown spectroscopy (LIBS) is a type of atomic emission spectroscopy which uses a highly energetic laser pulse as the excitation source.High resolution LIBS spectrometers- broad simultaneous wavelength range.
Quantity
Description:
LIBS is a type of optical emission spectroscopy used to meausre elemental concentrations in a material. LIBS operates by using a pulsed, focused laser that is fired at a sample with sufficient pulse energy as to create a plasma around the area struck. Bound atomic electrons are striped from the atoms comprising the material. As the plasma cools, atoms recombine with electrons and in the process emit light in the UV, optical and IR regimes.
LIBS has been used for more than 20 years as a laboratory benchtop technique, capable of analyzing any element in the periodic table, LIBS can analyze any elements in the periodic table. In resent years, LIBS technique has been miniaturized into a handheld device used in a wide application.

Why choose a Optosky handheld LIBS analyzer?
  • Significantly increase productivity
Increasing the number of analyzes a day can make all the difference, especially with large inventory checks.
  • Low cost of ownership
As LIBS is a laser induced breakdown tool, typically there's no need for staff to attend expensive and time consuming radiation classes and certification training.
  • Simple to use
Intuitive user interface combined with point-and shoot LIBS analysis reduces or even removes the chance of user-related errors
  • Advanced data management
Transfer and store all your results securely in our cloud service and use one of the most advanced reporting tools on the market. Vulcan also connects with your mobile to add photos to the results and to share data instantly.
  • Robust and durable
Splash water and dust proof,  the measurement optics are protected by sapphire glass, one of the toughest materials available.
  • Long battery life
A single battery charge will last up to 8 hours when analyzing one sample every 5 seconds. Two batteries are included in the delivery. Long standby time
  • Excellent spatial resolution

  • Microanalysis of surfaces
It has the ability to resolve space below 100 microns, Accurate thickness analysis, Compatible with various forms of samples, Direct analysis of solid samples.
  • Rapid phase inversion enrichment analysis of liquid samples
Fast sample analysis, simultaneous analysis of multiple elements.
Detection of light elements (Z<12) it can measure C, N, O, Li, Be, B and other elements. Make up for the shortcomings of XRF technology.
Qualitative and quantitative analysis of various elements, Simple and easy-to-operate software
  • Lightweight and compact handheld LIBS
The weight of the whole machine is 1.9KG (including battery).


Applications:
  • Elemental analysis of ore: It can accurately and conveniently analyze the metal content of ore.
  • Lithium exploration: Traditional mining and selection needs to take samples from multiple points on the site and send them to the laboratory for analysis. The waste samples are many and time-consuming and labor-intensive. LIBS on-site
  • testing does not need to transport heavy samples to the laboratory, and the analysis results can be obtained on-site, which greatly improves the exploration efficiency.
  • Lithium battery recycling. Accurate measurement to improve recycling efficiency.
  • Alloy detection
  • Material Component Identification (PMI). It can be used for quality control in metal manufacturing and processing industries, and can perform material composition analysis and alloy grade identification for a variety of materials
  • including key components, raw materials, and welds.
  • It can be used for almost any alloy detection, including scrap metal, aluminum alloys, superalloys, etc. It has excellent environmental adaptability and can easily work in complex working conditions.
