High-speed Spectrometer

High-speed Spectrometer
1 unit
Made in China

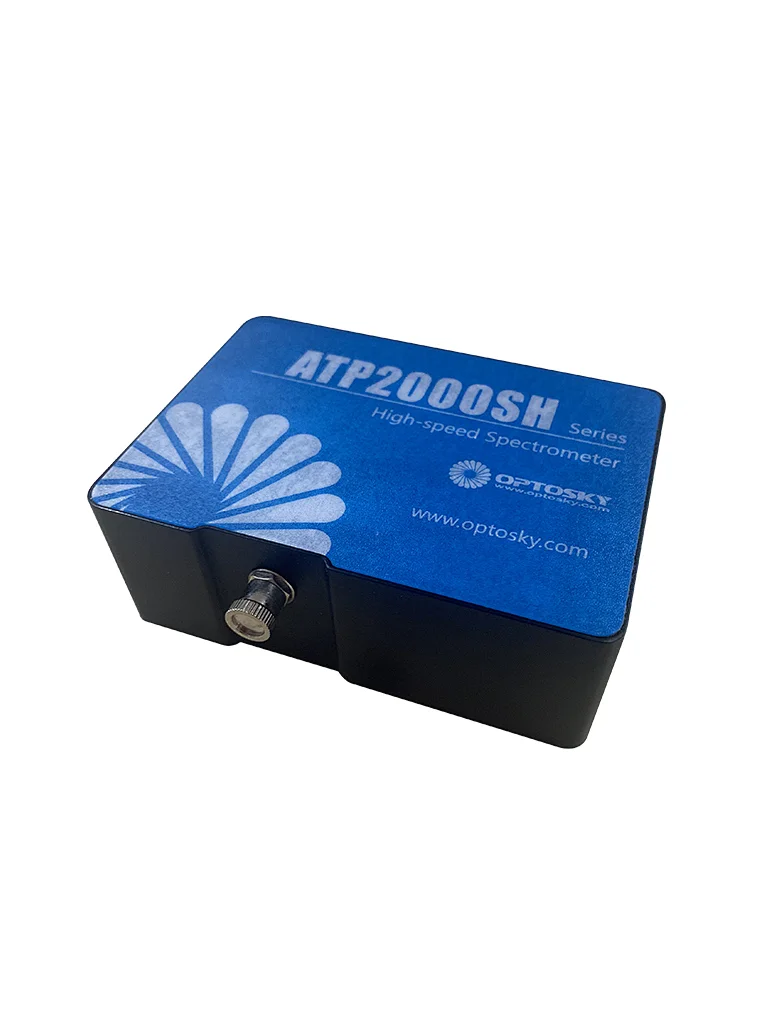

ATP2000SH high-speed micro-spectrometer is a low-noise, high-performance, high-speed, miniature fiber optic spectrometer. Its sensor is a 2048 pixel CCD, the CCD signal acquisition frame rate can reach 4.6Kfps, and the spectral response range is 200-1000 nm.

ATP2000SH is very suitable for fast detection due to its high A/D converter frequency and high-speed data transmission. In the ATP2000SH memory chip, algorithms for improving performance, such as wavelength calibration coefficients and linear coefficients, are stably programmed. It outputs spectral data to PC via USB 2.0 or RS232 interface. ATP2000SH works with +5VDC power supply provided by USB.


  • Maximum spectral range: 200nm-1000nm
  • Signal acquisition frame rate: ≤ 4672 fps
  • Detector: Linear low noise CMOS
  • Detector pixels: 2048 pixels
  • Spectral resolution: 0.1-3 nm (depending on spectral range and slit width)
  • Optical path structure: cross C-T
  • Integration time: 0.2ms-60s
  • 20-pin double-row programmable external expansion interface


  • Industrial Measurement Sensors
  • LED Spectrophotometer
  • Fluorescence photometer
  • biomedical analyzer
  • Transmittance detection
  • Reflectivity detection
  • UV gas analyzer
  • Multi-parameter water quality analyzer
