Uncooled UV-enhance & High Resolution vs HR4000
ATP3000/3040
FOB
1 unit
China
Quantity
Description

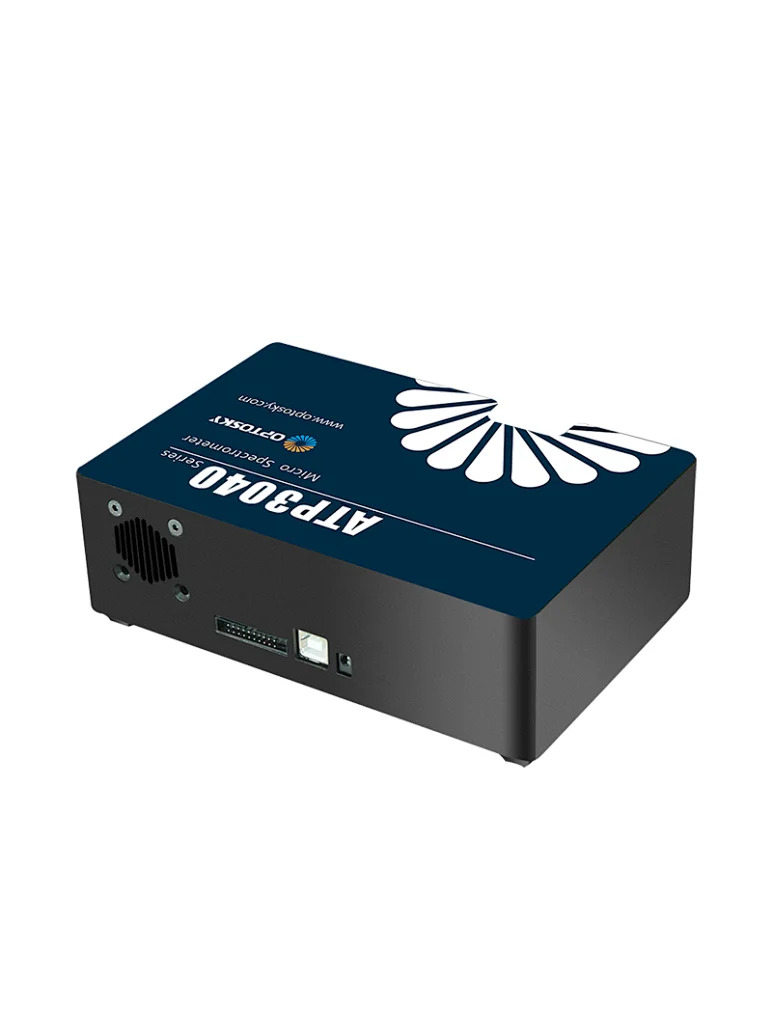

Optosky ATP3000/ATP3040 are low-noise, high-resolution optic fiber spectrometer. It employs 2048/4096pixels CCD sensor spectral response covering UV to NIR wavelength. Readout speed reach up to 10MHz, low noise signal process circuit, and fast and accurate spectral data collection.
ATP3040 further improve SNR and dynamic range based on ATP3000, so measuring results have high stability and reliability, and they do not change with operating temperatures.
ATP3000/3040 supplies power directly via USB port, and outputs data via USB2.0/UART, and it's convenient to apply integration.
Features
Application
Optosky ATP3000/ATP3040 are low-noise, high-resolution optic fiber spectrometer. It employs 2048/4096pixels CCD sensor spectral response covering UV to NIR wavelength. Readout speed reach up to 10MHz, low noise signal process circuit, and fast and accurate spectral data collection.
ATP3040 further improve SNR and dynamic range based on ATP3000, so measuring results have high stability and reliability, and they do not change with operating temperatures.
ATP3000/3040 supplies power directly via USB port, and outputs data via USB2.0/UART, and it's convenient to apply integration.
| PN | CCD pixels | Cooling |
| ATP3000 | 2048pixels | Uncooled CCD |
| ATP3040 | 4096pixels | Uncooled CCD |
Features
Resolution: 0.01-2 nm
Detector pixels：2048
High sensitivity：1300V (lx•s)
Response range：from UV to NIR
Maximum readout speed ：10MHz max
Optical path ：crossed C-T
Integration time：1ms-65535ms
Power supply：USB port
Light input connector: SMA905 or free space
Data output connector：USB2.0(High speed) or UART
Application
Small volume, fast spectrophotometer
Spectral analysis/ radiation spectrophotometer analysis
Transmission, absorbance measurement
Reflectance detection
Ellipsometer
Laser wavelength measurement
UV, VIS and short wave NIR wavelength measurement
