Scientific-Grade Spectrometer
ATP6500DC/EM
EXW
1 unit
Made in China
Quantity
Description：

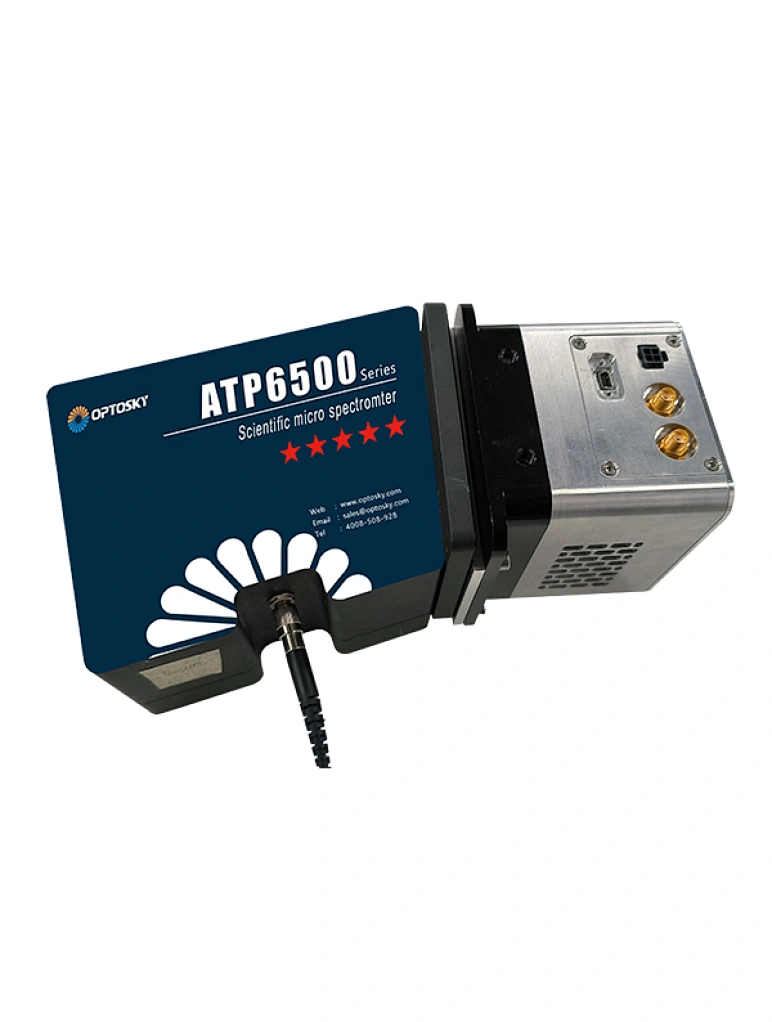

ATP6500DC and ATP6500EM are self-developed deep cooling scientific-grade spectrometer byOptosky,with deep cooling detector -70℃ or EMCCD detector -100℃,excellent performance, the bothCCD have the largest dynamic range, and using semiconductor cooling technology, reduce workingdark current, thus greatly reducing the detectornoise, obtain excellent signal to noise ratio, and improve the reliability of measurement, the measurement results do not change with the ambient temperature.
ATP6500DC and ATP6500EM can receive lights via SMA905 connector or free space, and output spectral data via USB2.0/UART.
Features:
Application：
ATP6500DC and ATP6500EM are self-developed deep cooling scientific-grade spectrometer byOptosky,with deep cooling detector -70℃ or EMCCD detector -100℃,excellent performance, the bothCCD have the largest dynamic range, and using semiconductor cooling technology, reduce workingdark current, thus greatly reducing the detectornoise, obtain excellent signal to noise ratio, and improve the reliability of measurement, the measurement results do not change with the ambient temperature.
ATP6500DC and ATP6500EM can receive lights via SMA905 connector or free space, and output spectral data via USB2.0/UART.
Features:
- Integration time：8ms ~ 1.3 hours
- CCD or EMCCD
- Quantum efficiency > 90%
- CCD parameters：1024×64 pixels or2048 x128
- Ultra-low noise, ultra-high signal-to-noise ratio
- Ultra-low dark current，Ultra-high dynamic range
- Spectral range: 180-1100nm(depend on spectral range, slit size)
- Spectral resolution: 0.01-4nm(depend on spectral range, slit size)
- Optical path：crossed Czerny-Turner (C-T)
- 16 bit
- Entrance connector：SMA905 connector or free space
- Output interface: high speed USB2.0 or UART
Application：
- Scientific research
- Weak（Biological） fluorescence measurement
- Raman spectrometer
- Transmittance measurement,reflectance measurement
- UCP
