Mid-IR Spectrometer

Mid-IR Spectrometer
ATP8250
FOB
1 unit
10unit / Month
China
30Day

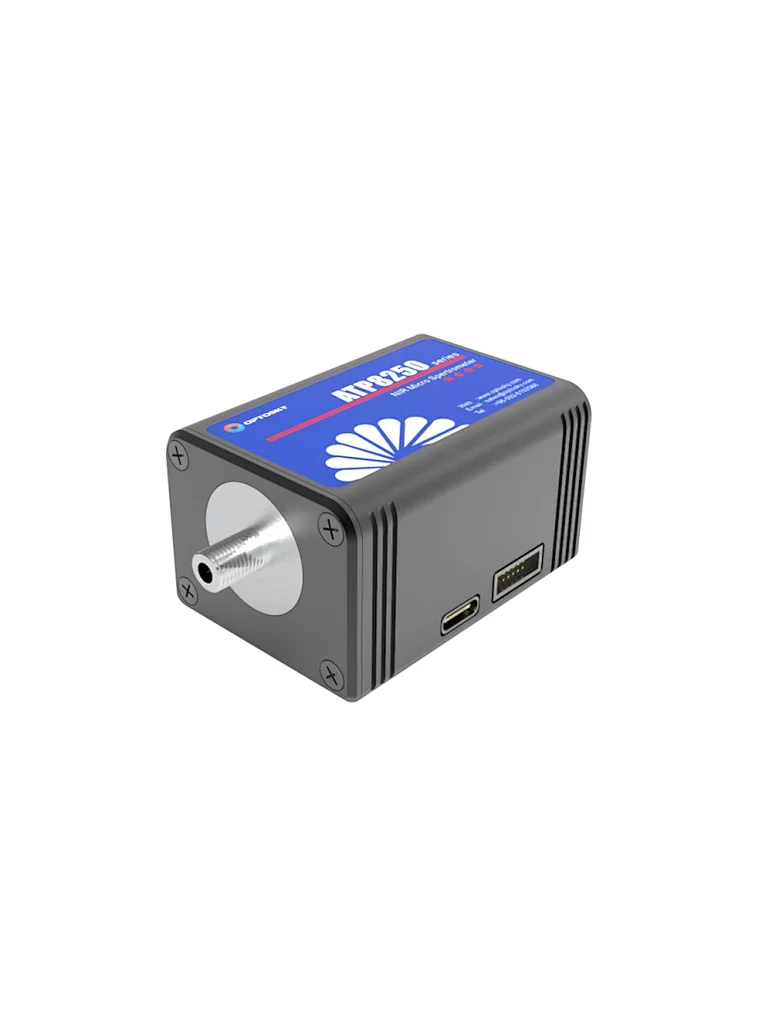

Mid-IR spectrometer employs smart size, and it employs 256pixels pyroelectric linear array sensor, all-solid state design, high reliable optical path and sensor installation, improve reliable measure.
Quantity

Description:

Mid-IR spectrometer employs smart size, and it employs 256pixels pyroelectric linear array sensor, all-solid state design, high reliable optical path and sensor installation, improve reliable measure. ATP8250 Mid-IR spectrometer employs low-noise CCD signal, CDS circuit lead in the industry.
ATP8250 Mid-IR spectrometer can receive free space light via Type-C or UART port, output scan spectral data.
ATP8250 Mid-IR spectrometer uses 5VDC power supply, and connect to USB, convenient to integration.


    ModelsRangeResolution
    ATP8250-52.5-5 um30 nm
    ATP8250-115.5-11 um50 nm



    Features:

    • Spectral Range:2.5-5 μm or 5.5-11 μm
    • Super low noise, CDS circuit;
    • Spectral resolution: relate to incident slit size
    • Integration Time:100 us- 100ms
    • CCD configuration:256×1 pixel,25×250 um
    • Power supply:DC 5V;
    • ADC bit-depth:16 bit;
    • ADC Sampling Rate:1MHz;
    • Interface:SM905 fiber port or free space input;
    • Data output port:Type-c 和 UART;
    • 10 -pins extendable port


    Applications:

    • Biomedical: Breathing Gas, Blood, Urine Analysis
    • In-process Control: Petrochemistry, Pharmaceutical Industry
    • Plastic and Polymer processing
    • Spectroscopy
    • Non-invasive medical diagnosis
    •  Laser Scalpel
    • Remote Sensing
    • Free space communication
    • Pumping OPOs
    • Numerous defense related applications include countermeasures, stand-off detection of explosion hazards, eyesafe seekers for smart munitions, and covert communications systems.
