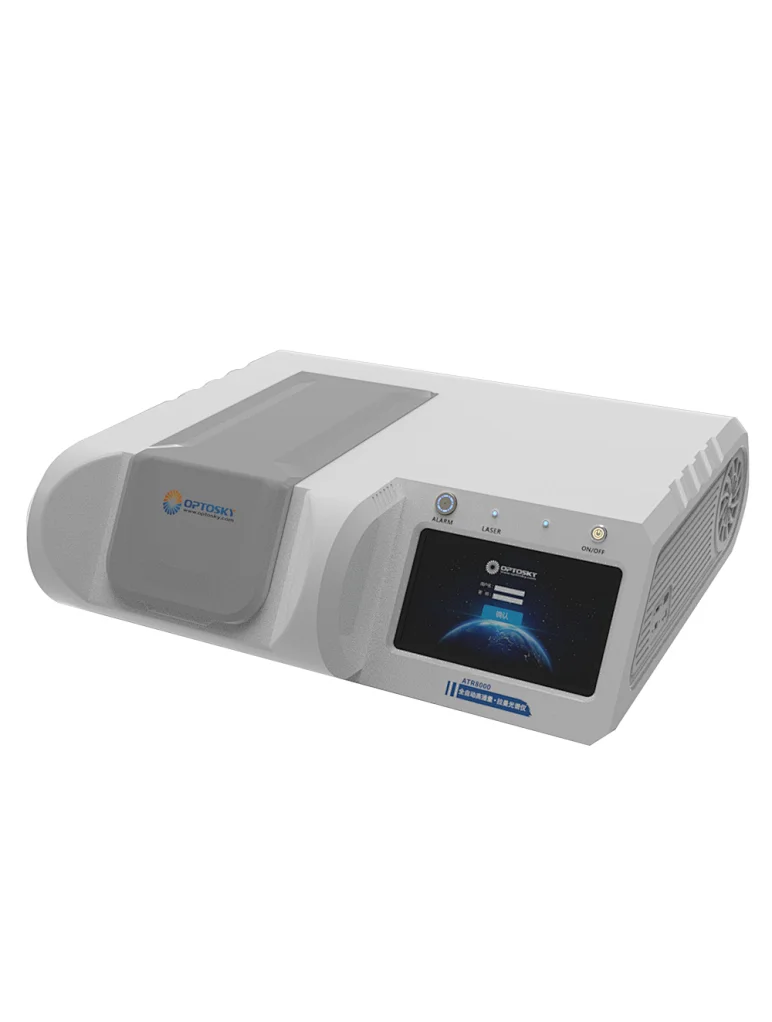

High Throughput Raman Analyzer

High Throughput Raman Analyzer

Model NO. ATR8000

Delivery FOB

minimum order 1 unit

Country of Origin China

ATR8000 full-auto & high throughput Portable Raman Analyzer is a all-auto detection instrument for improving detection throughput, reducing workload & protecting the health of testing personnel. ATR8000’s software uses two-dimensional platform of high-precision & all-auto scanning technique. And it runs automatically at original manual operation with the step of Raman test, calculating the result, judgment, display & printing results, etc.ATR8000 set to test 100 (maximum number)) samples at once. The sample tray can be changed and customized. It supports Raman probe illuminating laser beam from above which direct detection of SRES with Raman, and from the bottom to the top.

Quantity

Contact Now add to cart

Description：

     ATR8000 full-auto & high throughput Portable Raman Analyzer is a all-auto detection instrument for improving detection throughput, reducing workload & protecting the health of testing personnel. ATR8000’s software uses two-dimensional platform of high-precision & all-auto scanning technique. And it runs automatically at original manual operation with the step of Raman test, calculating the result, judgment, display & printing results, etc.ATR8000 set to test 100 (maximum number)) samples at once. The sample tray can be changed and customized. It supports Raman probe illuminating laser beam from above which direct detection of SRES with Raman, and from the bottom to the top.

Feature：

     •  Test 100 samples at the same time;

     •  All-auto Detection;

     •  High sensitivity;

     •  Wavelength customized ： 532nm, 633nm, 785nm, 1064nm;

     •  Double wavelengths customized: 785+1064nm, 532+1064nm, 532+633nm, 633+1064nm;

     •  Bar codes & QR codes recognition, it is easy for management;

     •  High reliability;

     •  It can auto-identify, and auto-skip without sample;

     •  Smart & intuitive software supports operation.

Application：

     •  University lab, scientific research institution;

     •  Nanoparticles & New materials;

     •  Biological science;

     •  Forensic Identificaiton;

     •  Material science;

     •  Medical analysis of immunology;

     •  Agriculture & Food of identification;

     •  Water pollution analysis;

     •  Gem & Inorganic mineral of immunology;

     •  Environment science.

Model	ATR8000-532nm	ATR8000-633nm	ATR8000-785nm	ATR8000-830nm	ATR8000-1064nm
Interface	USB 2.0	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Integral time	1ms - 120s	1ms -64s	4ms - 120s	4ms - 120s	4ms - 120s
Voltage	AC 220V(+/-5%)	AC 220V(+/-5%)	AC 220V(+/-5%)	AC 220V(+/-5%)	AC 220V(+/-5%)
Working temp.	-10~40 ℃	-10~40 ℃	-10~40 ℃	-25~50 ℃	-10~40 ℃
Working humidity	< 95%	< 95%	< 95%	< 95%	< 95%
Size (L*W*H)（mm）	800*500*300	800*500*300	800*500*300	800*500*300	800*500*300
Channels	100	100	100	100	100
Precision guide	0.625μm	0.625μm	0.625μm	0.625μm	0.625μm
Weight	27 Kg	26 Kg	25Kg	25 Kg	27Kg
Optical stability	σ/μ < 0.5% (COT 8 hours)	σ/μ < 0.5%(COT 8 hours)	σ/μ < 0.5%(COT 8 hours)	σ/μ < 0.5%(COT 8 hours)	σ/μ < 0.5% (COT 8 hours)
Temperature	shift ≤ 1 cm-1	shift ≤ 1 cm-1	shift ≤ 1 cm-1	shift≤ 1 cm-1	shift ≤ 1 cm-1
stability	(10-40 ℃)	(10-40 ℃)	(10-40 ℃)	40 ℃)	(10-40 ℃)
Intensity variation（in 5 ~ 40 ℃）	<±5%	<±5%	<±5%	<±5%	<±5%
Optical
Wavelength (cm-1)	200-3700	200-2700	250-2700、	200-2700	200-2600
			200-3500、200-
			4200
			Customized
Resolution (cm-1)	8	10	6, 8, 10	6	13
SNR	>1500:1	>3000:1	>3000:1	>3000:1	>3000:1
Detector
Model	TE-Cooled CCD	TE-Cooled CCD	TE-Cooled CCD	TE-Cooled CCD	High sensitivity 512 pixels InGaAs CCD
The Cooled	-10 ℃	-10 ℃	-10 ℃	-10 ℃	-20 ℃
Detection range	200-1100 nm	200-1100 nm	200-1100 nm	200-1180 nm	900-1700 nm
Dynamic range	50000：1	10000：1	50000：1	30000：1	80000：1
Central	532nm±0.5nm	633nm±0.5nm	785nm±0.5nm	830 nm±0.5nm	1064±0.5nm
wavelength
HBW	≤ 0.1 nm	≤ 0.1 nm	0.08 nm	0.1 nm	0.1 nm
Maximum power	≥100 mW	≥100 mW	≥500 mW	≥500 mW	≥500 mW
Power stability	σ/μ <±0.5%	σ/μ <±0.5%	σ/μ <±0.2%	σ/μ <±0.2%	σ/μ <±0.2%
Working	6 mm	6 mm	6 mm	6 mm	6 mm
Resistance	OD>8	OD>8	OD>8	OD>8	OD>8
NA	0.3	0.3	0.3	0.3	0.3
Aperture	7mm	7mm	7mm	7mm	7mm
Platform	Android
Network	WIFI、4G（Customized）

Datasheet Download:

ATR8000_Datasheet_V5.1.pdf
