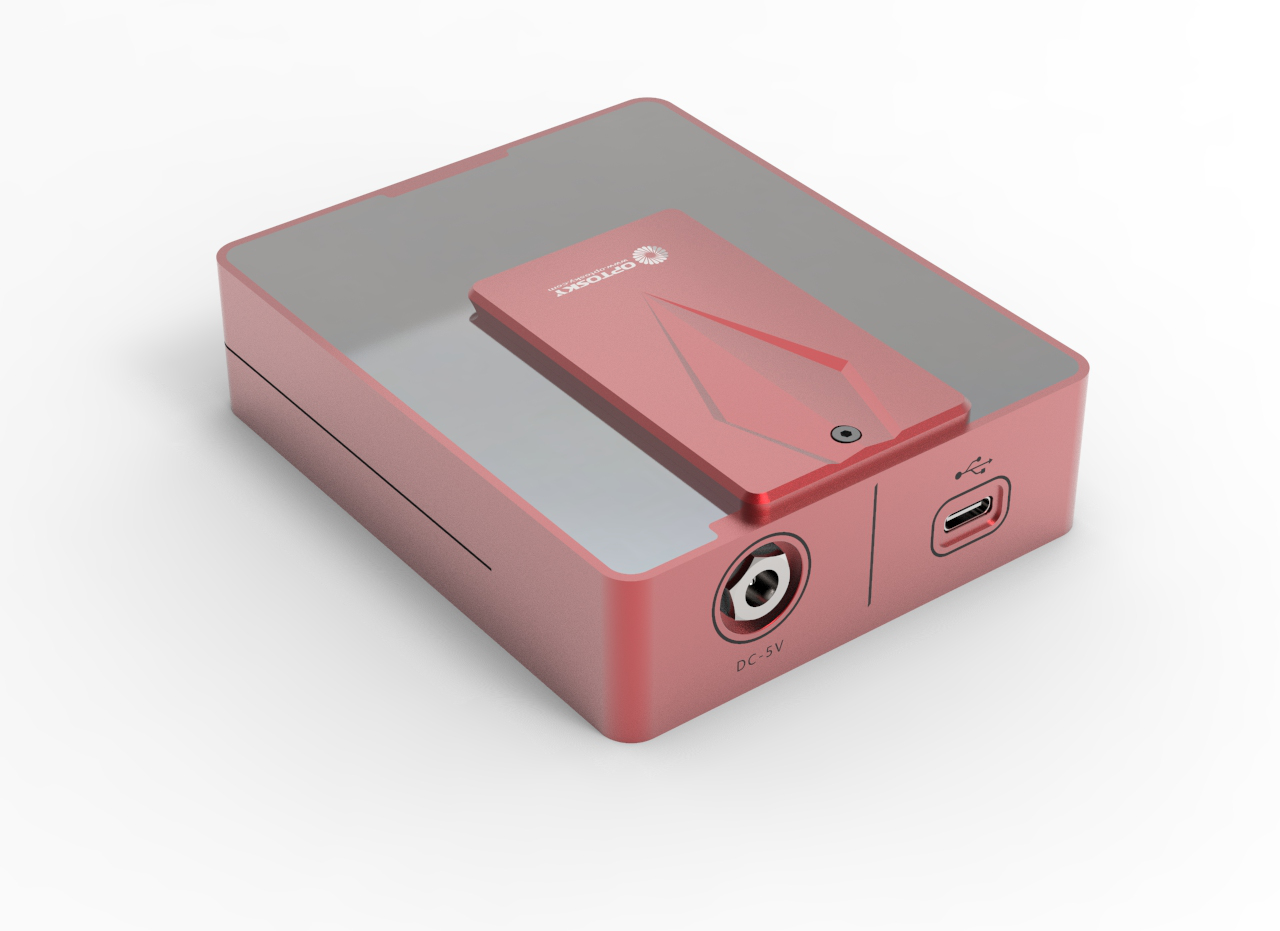

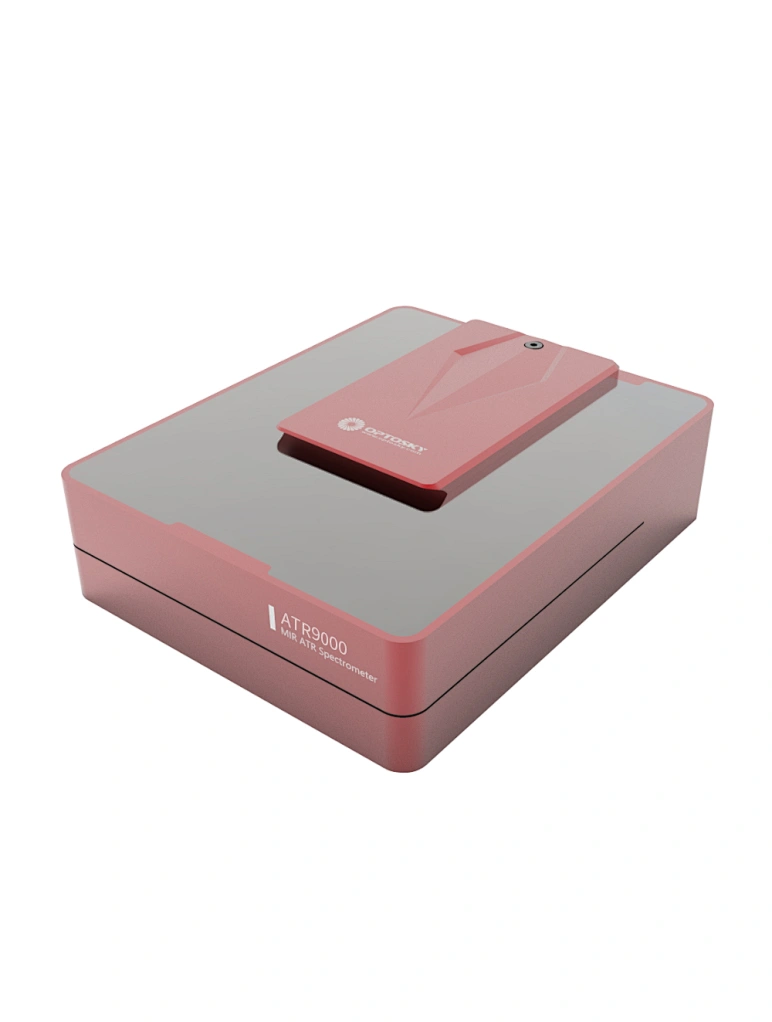

MIR ATR Spectrometer
ATR9000
1
2-monthDay
ATR9000(Attenuated Total Reflection, ATR), built-in MEMS Infrared Source, it employs Pyroelectric linear array sensor, in the ZnSe high performance material window measure ATR spectrum. Optosky exclusively designs Ultra-low noise CCD signal processing circuit, results in reducing sensor noise, improving improving SNR( 2 times higher SNR than competitors). Higher measuring reliability ensures results can not change with ambient temperature.
Quantity

Description

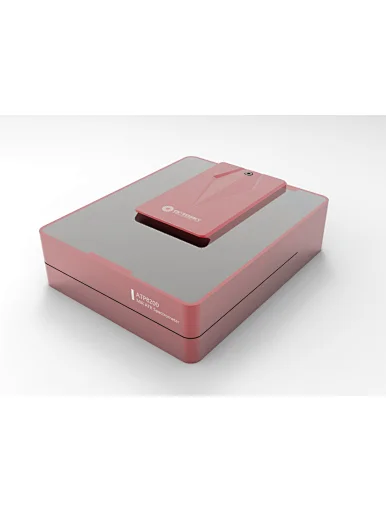

ATR9000(Old Model: ATP8200)is developed by Optosky(Attenuated Total Reflection, ATR), built-in MEMS Infrared Source, it employs Pyroelectric linear array sensor, in the ZnSe high performance material window measure ATR spectrum. Optosky exclusively designs Ultra-low noise CCD signal processing circuit, results in reducing sensor noise, improving improving SNR( 2 times higher SNR than competitors). Higher measuring reliability ensures results can not change with ambient temperature.

ATR9000 fit to measure samples in powder, fluid,easy-to-operate, it takes just few steps to complete measurement.


Model No.DetectorSpectral range
ATR9000-5256 pixels2.5-5 um
ATR9000-11256 pixels5.5-11um


Feature:

  • Spectral range:2.5-5 μm(4000-2000 cm-1) Or 5.5-11μm(1818-909 cm-1
  • MIR( Attenuated Total Reflection, ATR) spectrometer
  • Detector: Linear pyroelectric array sensors
  • ATR window material:ZnSe
  • Detector pixel:256 pixels
  • Ultra-low noise CCD signal processing circuit
  • Built-in MEMS electrical infrared source
  • Detection time:30s(typical)
  • 16 bit, 500 KHz ADC
  • Data output: USB 2.0
  • Power supply:5V DC, <2A


Application :

  • Food safety
  • Dye analysis
  • Material Identification
  • Authentication anti-counterfeiting
  • Oil analysis
  • Drugs, Chemicals, Combustible & Explosives Analysis

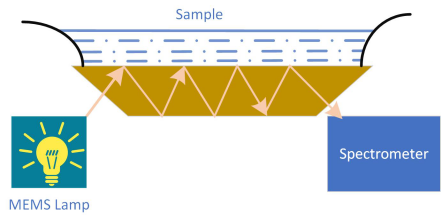

Figure1.ATR9000 function schematic diagram, totally7 times attenuation total reflections occur

FAQ

Q: What is the wavelength range?
A: Spectral range:2.5-5 μm(4000-2000 cm-1)Or 5.5-11μm(1818-909 cm-1)
Q: What brands used for the detector?
A: 256pixels pyroelectric linear array sensor
Q: What is the size?
A: 106×85×30 mm3
Q: What is the weight?
A: The weight is about 0.5kg.
Q: What is the price?
A: Please contact us about the price.
Q: What is ATR technology?
A: Attenuated total reflection (ATR) is a sampling technique used in conjunction with infared spectroscopy which enables samples to be examined directly in the powder  or liquid state without further preparation.
