HandHeld FieldSpec Spectrometer

HandHeld FieldSpec Spectrometer

Model NO. ATP9100

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

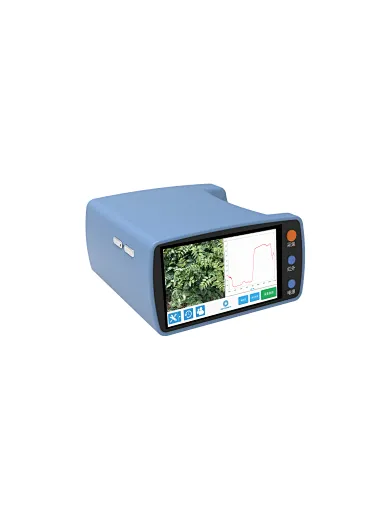

ATP9100 handheld hyperspectral surface object spectrometer (field spectroradiometer) is the latest product of Optosky company, with a wavelength range of 300~1100 nm, suitable for remote sensing measurement, crop monitoring, forest research to oceanographic research, etc. Applications in various fields.

Quantity

Description

ATP9100 handheld hyperspectral ground object spectrometer (field spectroradiometer) is a member of Optosky's high-performance ground object spectrometer family, with a wavelength range of 300~1100 nm, suitable for remote sensing measurement, crop monitoring , forest research to oceanographic research and other fields of application.

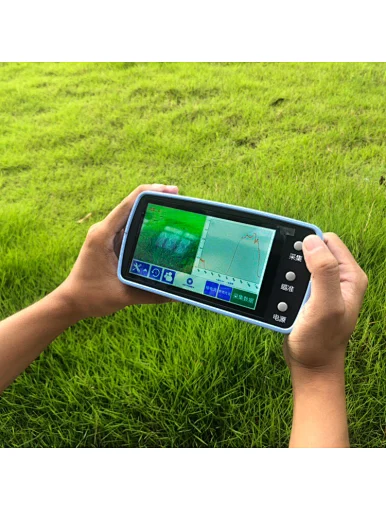

In addition to the functions of conventional handheld ground object spectrometers, ATP9100F can also directly and intuitively display the monitored spectrum area in real time, making the experiment more accurate.

ATP9100 ground object spectrometer has the characteristics of high cost performance, fast and accurate measurement, simple operation, and easy to carry. It is equipped with a powerful software package. In addition to reflectance measurement, it can also be used for radiometric, photometric and colorimetric measurements.

Model	Description
ATP9100	Standard Handheld FieldSpec
ATP9100F	plus a function of capture distance & area
ATP9100D	Ultra-low noise, the noise is 7 times lower than ATP9100F, and has all the functions of ATP9100F
ATP9100W	handheld full-band ground spectrometers (field spectroradiometers)

Features

High sensitivity

Fast measurement speed

Optical fiber probe measurement,

Built-in anti-secondary diffraction coating and filter, high accuracy

Dynamic dark current correction

Display the inclination angle of the probe

The host is dustproof and waterproof

Handheld, dedicated carrying case

HD touch screen control, or PC software control

HD camera display spectrum shooting area

Direct calculation of vegetation index

Application

Agriculture, forestry and animal husbandry, geological research, prospecting

Remote sensing measurement, satellite remote sensing data calibration

Forest research, oceanographic research

Environmental damage assessment

Meteorology, flux stations

Selection Guide

Model	Feature
ATP9100	Universal type, band range: 300-1100nm
ATP9100-UV	UV version, band range: 190-1100nm
ATP9100F	Can visually display the corresponding area of the spectrum, band range: 300-1100nm
ATP9100F-UV	Can visually display the corresponding area of the spectrum, band range: 190-1100nm
ATP9100D	High signal-to-noise ratio, ultra-low noise, the noise is 7 times lower than ATP9100F, and has all the functions of ATP9100F, band range: 300-1100nm
ATP9100D-F-UV	High signal-to-noise ratio, ultra-low noise, the noise is 7 times lower than ATP9100F, and has all the functions of ATP9100F, band range: 200-1000nm
ATP9100-17	Wide band, band range: 190-1700nm
ATP9100-25	Wide band, band range: 190-2500nm
ATP9100W-17	300-1700nmband range
ATP9100W-25	300-2500nmband range

Performance

	ATP9100&ATP9100F	ATP9100D
Detector
Type	Linear CMOS sensor	Linear CMOS sensor
Detector	2048	2048
Optical Parameters
Spectral Range	l ATP9100：300~1100 nm	300~1100 nm
	l ATP9100UV：190-1100nm
Wavelength Accuracy	± 0.5 nm	± 0.5 nm
Spectral Resolution	1.4 nm@756nm	1.9 nm@756nm
FOV	narrow FOV lens，1º/8º/15º/25ºoptional	narrow FOV lens，1º/8º/15º/25ºoptional
Indicate laser wavelength	650 nm	650 nm
Indicate laser power	5 mW	5 mW
SNR	>800：1	>3000:1
Dynamic Range	>3500:1	>12000:1
Spectral Sampling Interval	0.4nm	0.4nm
Hardware spectral average	Max. up to 100,000 times	Max. up to 100,000 times
Electrical parameters
Operation system	Android 8.0
Camera	13-mega front camera
LCD Screen	5″HD 720*1080 capacitive screen
Integration Time	1 – 10 s/ auto optimization integration time
Data Export Port	TYPE-C /USB 2.0, bluebooth
Angle data	MC3430 gyroscope optical measure angle: 0°-180°
Power supply	Built-in Li battery 5200maH
Charging	USB 5V Charger
Battery life span	>4H
Working Current	<800mA
Storage Temp.	-20°C ～ +65°C
Operating Temp.	-10 ～ 45 °C
Working Humidity	< 90%RH
Physical Parameters
IP level	IP65
Dimension	151×157×85 mm
Weight	870g（complete machine）
Note:
1. The parameters in the table are for reference only;
2. For other performance parameters, Optosky can provide customization;
