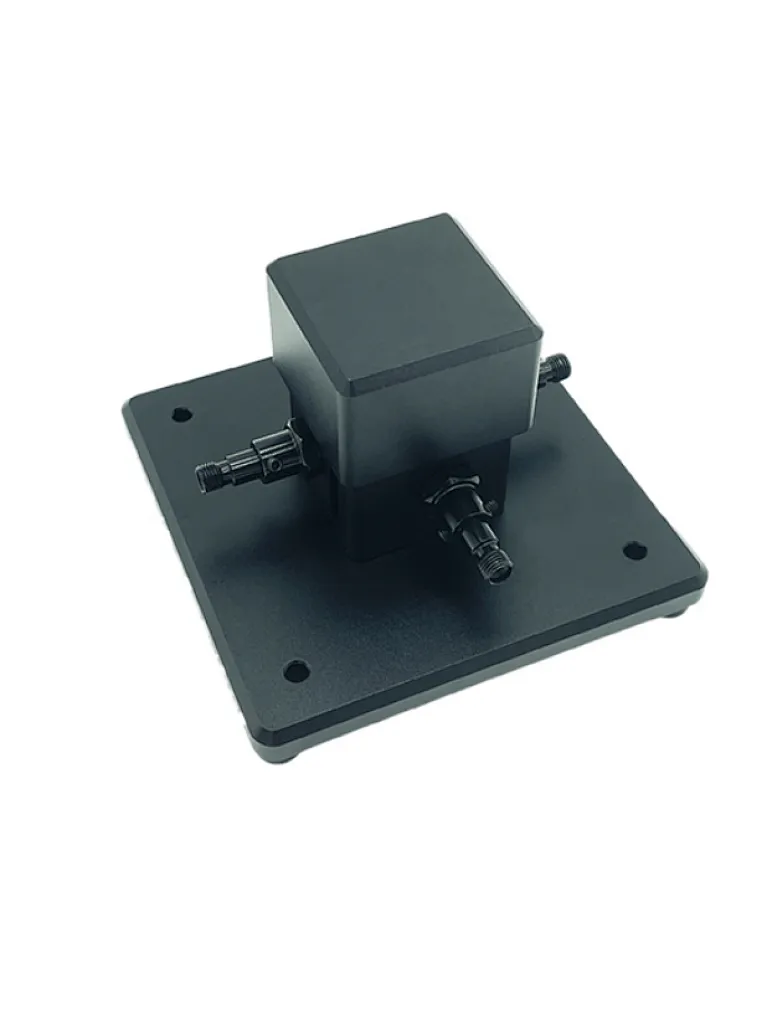

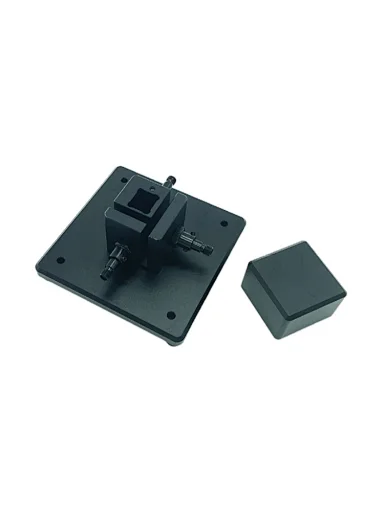

Four way cuvette
CUV-VAR
Each collimating lens is equipped with a fiber optic connector, through which it is connected with an optical fiber to read or photograph bright sample. When used with a spectrometer and light source, it can measure absorbance, fluorescence, scattering or the measurement of the properties of any combination of the above optical phenomena.
Quantity
Description
The cuvette holder comes standard with three quartz collimators with a focal length of F/2 (F=10, diameter=6.3MM)
Each collimating lens is equipped with a fiber optic connector, through which it is connected with an optical fiber to read or photograph bright sample. When used with a spectrometer and light source, it can measure absorbance, fluorescence, scattering or the measurement of the properties of any combination of the above optical phenomena.
Features
- Three good F/2 quartz collimating lenses, UV up to 180NM.
- The cuvette with 10MM optical path is used together.
- Wide spectral range: 200 NM-2500NM.
- Through, scattering and fluorescence measurement.
- The internal channel of the chassis can achieve stable temperature effect
- The detachable collimating lens can be used in multiple ways.
- Plug-in filter design makes wavelength selection more convenient.
- The cap design can effectively avoid the influence of ambient light on the detection.
Application
- Used to measure liquid transmittance
- Absorbance (0 degree measurement)
- Concentration and fluorescence spectrum (90 degree vertical measurement).
