Vacuum FT-IR Spectrometer
ATP8900Ad
EXWORK
1
Made in China
The vacuum FT-IR spectrometer is widely used in nano surface analysis, polymer industry, materials science, pharmaceuticals, semiconductors and catalysis etc.
Quantity
Description

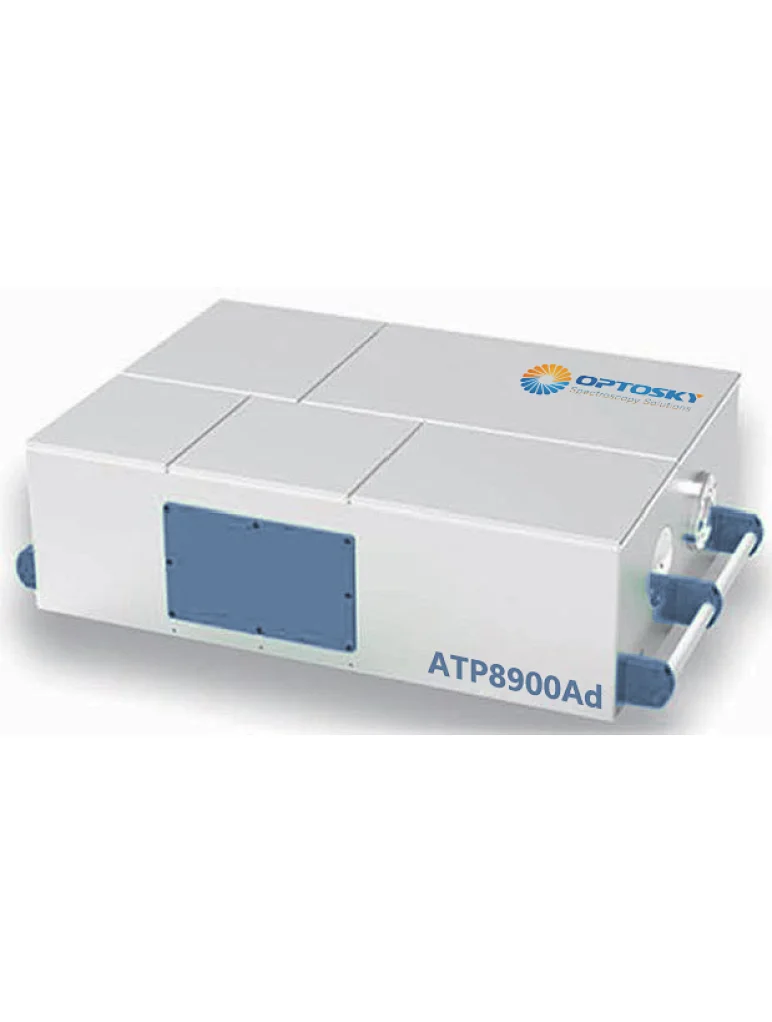

ATP8900Ad vacuum Fourier transform infrared spectrometer is a new high-end research-grade infrared spectrometer from Optosky Photonics Inc. The ATP8900Ad has a vacuum design for optical bench and sample chamber, the user does not have to worry about the effect of water vapor and carbon dioxide on the weak absorption signal, at the same time, the design can improve the throughput of the spectrometer. The vacuum FT-IR spectrometer is widely used in nano surface analysis, polymer industry, materials science, pharmaceuticals, semiconductors and catalysis etc.
ATP8900Ad vacuum FT-IR spectrometer is made of cast aluminum and has an independent optical chamber design. The oil-free vibration-damping pump can rapidly vacuumize the optical chamber and sample chamber with real-time vacuum level display. And the sample chamber can be vacuumized independently, allowing the user to change samples quickly and efficiently.
Mid-IR and Far-IR(6000-50cm-1) spectra of sample can be scanned in one single measurement,
which will obtain all the vibrational and rotational structure information of the sample.
Users can switch to the NIR optical system via the software to obtain the near infrared(12500-4000cm-1) spectra of the sample.In addition, the ATP8900Ad can be equipped with an external water-cooled mercury lamp light source and a liquid helium Bolometer detector, allowing the user to extend the spectral range to 10cm, reaching the terahertz research band.
The ATP8900Ad can be configured with multiple external optical paths to connect various external optical chambers, such as UHV vacuum sealed chambers, cryogenic dewars, high temperature emission infrared chambers, external sample chambers, external detector chambers, etc.which greatly enriching the researcher's optical platform and research area.
We offer a spectral database(about 10,000 spectra), including inorganics, organometallic complexes, polymers, additives, organics, and the user can also build their own libraries.
Features
ATP8900Ad vacuum Fourier transform infrared spectrometer is a new high-end research-grade infrared spectrometer from Optosky Photonics Inc. The ATP8900Ad has a vacuum design for optical bench and sample chamber, the user does not have to worry about the effect of water vapor and carbon dioxide on the weak absorption signal, at the same time, the design can improve the throughput of the spectrometer. The vacuum FT-IR spectrometer is widely used in nano surface analysis, polymer industry, materials science, pharmaceuticals, semiconductors and catalysis etc.
ATP8900Ad vacuum FT-IR spectrometer is made of cast aluminum and has an independent optical chamber design. The oil-free vibration-damping pump can rapidly vacuumize the optical chamber and sample chamber with real-time vacuum level display. And the sample chamber can be vacuumized independently, allowing the user to change samples quickly and efficiently.
Mid-IR and Far-IR(6000-50cm-1) spectra of sample can be scanned in one single measurement,
which will obtain all the vibrational and rotational structure information of the sample.
Users can switch to the NIR optical system via the software to obtain the near infrared(12500-4000cm-1) spectra of the sample.In addition, the ATP8900Ad can be equipped with an external water-cooled mercury lamp light source and a liquid helium Bolometer detector, allowing the user to extend the spectral range to 10cm, reaching the terahertz research band.
The ATP8900Ad can be configured with multiple external optical paths to connect various external optical chambers, such as UHV vacuum sealed chambers, cryogenic dewars, high temperature emission infrared chambers, external sample chambers, external detector chambers, etc.which greatly enriching the researcher's optical platform and research area.
We offer a spectral database(about 10,000 spectra), including inorganics, organometallic complexes, polymers, additives, organics, and the user can also build their own libraries.
Features
Vacuum design for optical bench and sample chamber, vacuum level≤0.2mbar
Cover mid-,near and far IR/THz region(12,500-10 cm-1).Software controlled optical system and detectors switching
Acquisition of spectral information in the mid- and far spectral regions in one single measurement (6000-50 cm-1)
High spectral resolution: 0.25 cm-1
Removal of water vapor and CO2zinterference to weak signals
Unaffected by changes in ambient laboratory temperature
Higher throughput and greater sensitivity
Better stability and repeatability
The sample chamber can be evacuated separately to facilitate sample change and improve testing efficiency
Can be equipped with an ATR accessory wit pure diamond crystal to enable measurement under vacuum condition
Can be connected to a long-path gas cell to measure high-resolution gas spectra
Multiple external optical paths can be configured to connect various external optical chambers
such as UHV vacuum sealed chambers, low temperature dewars,
high temperature emission infrared chambers, external sample chambers, external detector chambers etc
ApplicationMultiple external optical paths can be configured to connect various external optical chambers
such as UHV vacuum sealed chambers, low temperature dewars,
high temperature emission infrared chambers, external sample chambers, external detector chambers etc
Self-assembled ultra-thin film studies
UHV vacuum-sealed ultra-high vacuum cavities
Low temperature matrix-isolation
Quantification of group lll and Vimpurities (B,P,Al,Sb,As,Ga,In) in Si single crystals
In-situ diffuse reflection characterization of catalysts in a vacuum environment
Inorganic and organic coordination compound studies
lattice vibrational absorption of molecular crystals
study of pure rotation spectra of gas molecules
