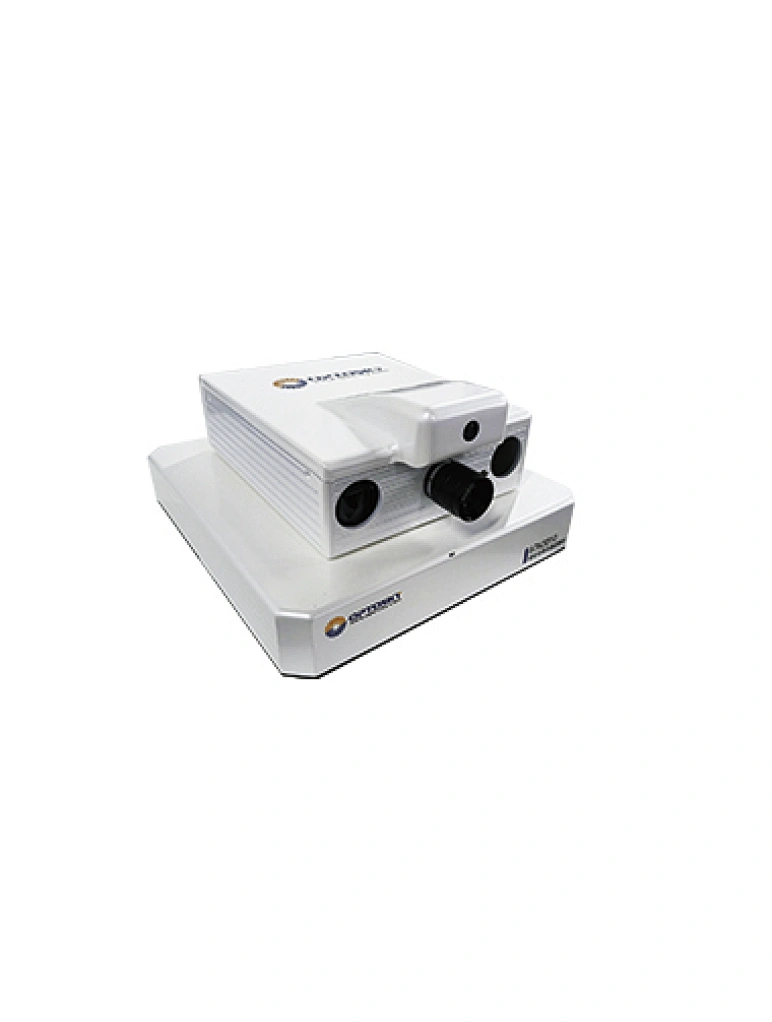

Rotary Scan Hyperspectral Imaging System

Rotary Scan Hyperspectral Imaging System

Model NO. ATH3010

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

ATH3010 is a new designed compact hyperspec imager applied to the field and laboratory with bulid-in light source and rotator. This complete design provides high spatial and spectral resolution. This design fit to long time monitor,then adding a tripod can increase scan area for a long time monitor.

Quantity

Contact Now add to cart

Description

ATH3010 is a miniature hyperspectral imager with small size and light weight.
In addition to small size and light weight, the ATH3010 has the characteristics of high spatial resolution, high spectral resolution and wide imaging range. ATH3010 at the same time built-in high stability high blue lighting source, and the power is adjustable, no additional light source.

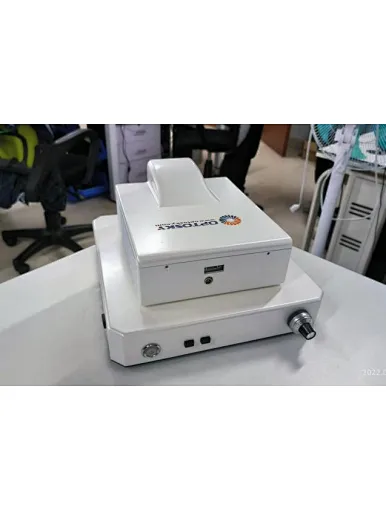

The ATH3010 is composed of two parts: hyperspectral imager and automatic electric rotary table. The high spectral instrument is based on high efficiency transmission grating technology and has good aberration characteristics.
The ATH3010 can also be installed on a tripod or pole, and add automatic calibration device, weather monitoring sensor, etc., so as to achieve a long time, large area scan of the target.

Model	description
ATH3010	Rotating scanning hyperspectral imager, standard type, 1920X1200 resolution
ATH3010W	Rotating scanning hyperspectral imager, standard type, 4096X3000 resolution
ATH3010-17	Hyperspectral band range: 900-1700nm, resolution 640X512
ATH3010-25	Hyperspectral imaging band range: 1200-2500nm
ATH3010-4-17	Hyperspectral imaging band range: 400-1700nm

Features

High sensitivity
13-mega visible light camera
High-performance cost-effective
High stability build-in light source
High imaging quality
Spot diameter < 0.5 pixel
Standard C-type interface for high replaceable
400-1000, 400-1700, 900-1700, 1200-2500nm
High spectraresolution: 1.3 nm
Max. FOV : 31.7°
Mini instant FOV : 1.2 mrad

Application


Agricultural application: pest monitoring, nutrient monitoring, disaster assessment, crop yield estimation, etc

Forestry: Tree categories identification, Phytomass, nutrient elements, forest health etc.

Water Environment: Water quality parameters, water waste spatial distribution and migration analysis

Soil pollution: heavy metal waste

Minerals: Mineral mapping, ingredients explore, metallogenic prognosis etc.

City：Urban planning, road monitoring, landscape vegetation monitoring, environmental protection

Items	ATH3010	ATH3010-4
Spectral Range	400-1000nm	400-1000nm
Spectral Resolution	1.3 nm	1.3 nm
Sampling Interval	0.37nm	0.37nm
F-number	F/2.6	F/2.6
Detector	CMOS	CMOS
Detector Interface	USB3.0	USB3.0
Supply Power	USB powered, 3.4W	USB powered, 3.W
Detector Target Size	11.26mm x 5.98mm	11.26mm x 11.26mm
Detector Original Resolution	2048 × 1088	2048 × 2048
Detector Original pixel size	5.5 µm x 5.5 µm	5.5 µm x 5.5 µm
Bit Depth	12 bits	12 bits
Slit Width	25 µm	25 µm
Recommended Way To Merge Cells	4x4 or 2x4	4x4 or 2x4
Spatial dimension effective pixel number	512 or 1024	512 or 1024
Spectral band number	272 or 544	512 or 1024
Angle of view (FOV)	15.2°@f=35mm	15.2°@f=35mm
Instantaneous Field of view (IFOV)	0.7mrad@f=35mm	0.7mrad@f=35mm
Maximum frame frequency	340 fps	140 fps
Size	306 mm x 300 mm x 162mm	306 mm x 300 mm x 162mm
Weight	小于 5.5 Kg	小于 5.5 Kg
Operating temperature	-10 - 50°C	-10 - 50°C
Storage temperature	-30-70°C	-30-70°C
Number of spectral channels	≥1024 (2x pixel merge mode)	≥1024 (2x pixel merge mode)
The number of spatial channels	≥ 512(2x pixel merge mode)	≥1024 (2x pixel merge mode)
Scanning method	External push-sweep measurement
Data acquisition software	Flexible setting of exposure time, dynamic display of real-time hyperspectral image and spectral curve
Data analysis software	Without third-party software, it can obtain cluster analysis, single band, true and false color, more than 20 kinds of vegetation index (can be customized), three-dimensional image cropping, target spectrum recognition and other images with one click. All the above functions can realize unattended batch processing
software display	Dynamic real-time display of hyperspectral image, scientific light and dark focus, avoid human visual focusing error
Hyperspectral camera communication	USB3.0
Lighting source	High stability constant power high blue light surface source High stability constant power high blue light linear light source, through the optical mirror group to compress and stretch the point light source, improve the energy utilization rate
Line light source length (optional)	≥220mm@400mm
Line light source width (optional)	≤30mm@400mm
Service life (optional)	≥2000h

Datasheet Download:

ATH3010_Datesheet_20221214_V3.7.pdf
