Optical Table
AT-OT-P

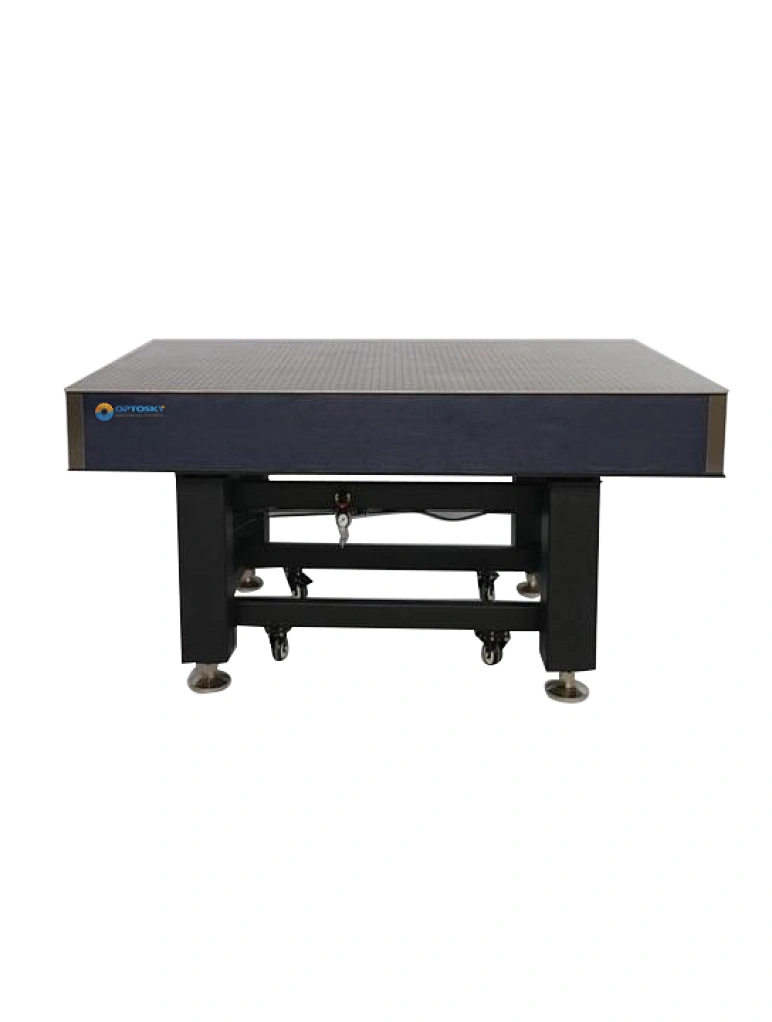

A standard Damping Vibration Isolation Optical Table produced by Optosky.
Quantity
Description
The AT-OT-P series standard Damping Vibration Isolation Optical Table produced by Optosky has an overall height of 800mm. The Breadboard is made of high-quality ferromagnetic stainless steel with good corrosion resistance. Using precision grinding finish, the flatness within 0.02~0.05mm/m. The rotary grinding process removes burrs to achieve a non-reflective effect. The optical table is evenly distributed with 25mm hole spacing standard M6 mounting holes for dampen a broad range of frequencies on the work surface.
The shelves adopts a four-leg or six-leg structure is available to earthquake restraints. The support legs are made of damping materials and upgraded to standard Damping Vibration Isolation pads that meet the requirements of national standards (GB/T20029-2005), with better vibration isolation performance and smaller frequency. It can meet application in the laboratory optical experiments and in the fields of teaching and scientific research.
Optosky offers many optical table sizes with thicknesses of 100 mm, 200 mm, or 300 mm; thicker optical tables will be stiffer. They're offered with Optical table accessories,including shelves, support legs, and earthquake restraints.Optical tables can also be custom ordered.
Features
- Working Surface：ferromagnetic stainless steel
- Core Construction ：honeycomb structure
- Table Thickness：100/150/200/250/300mm
- Mounting Hole Grid ：25mm×25mm
- Mounting holes：M6
- Hole accuracy：±0.03mm
- Hole spacing accuracy：±0.05mm
- Surface flatness：0.02~0.05mm/m
- Roughness：<0.6 μm
- Resonant frequency：<6~15Hz (Relevant to actualusage)
- Amplitude：<5μm
- Supports Load:800kg/m²
- Weight (breadbored thick):
- 100mm thickness:120kg/m2;
- 200mm thickness: 140kg/m2;
- 300mm thickness:165kg/m2;
Application
- Lab supplies;
- optomechanical components;
- optomechanical devices;
- Optical applications;
