Tungsten Halogen Lamp
ATG1002
EXW
Made in China
The ATG1002 light source adopts a special spectral-level halogen bulb with better filament packaging, which ensures the life of each halogen bulb and effectively reduces the frequency of bulb replacement. It is small, easy to control and has good color temperature and color rendering, long life, low light attenuation, high output power, etc. It can be widely used in traditional desktop spectrometers and field portable miniature spectrometers.
Quantity
Description

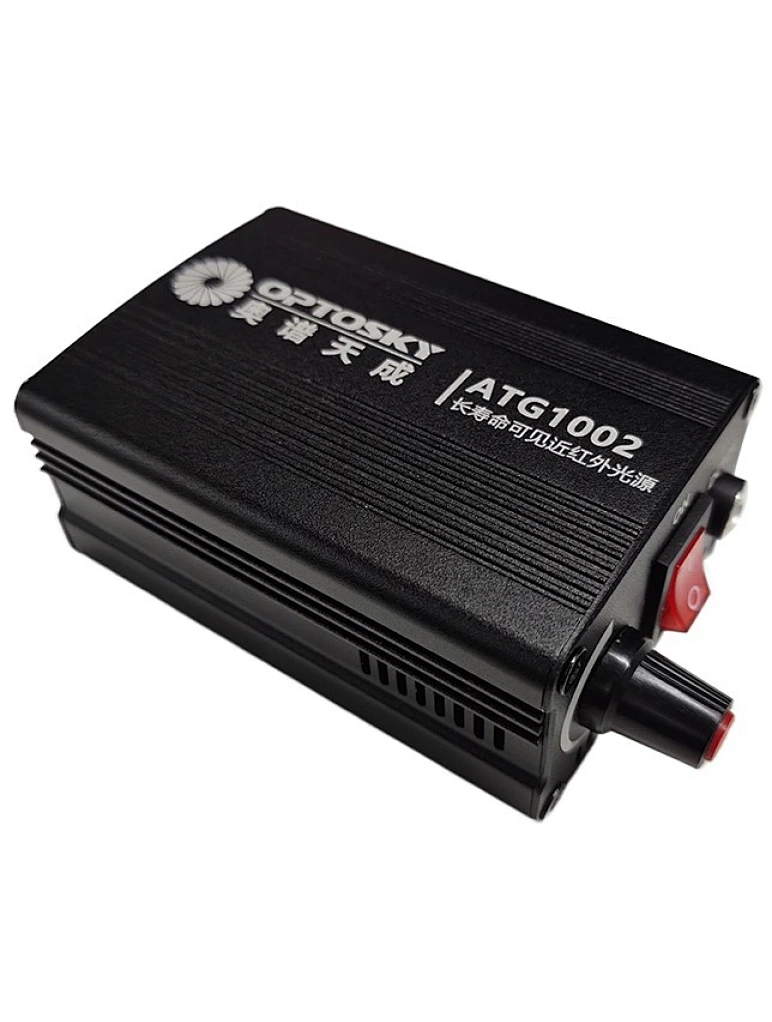

The ATG1002 Tungsten Halogen Light Source is a versatile light source best suited for VIS-NIR (360 nm-2500 nm). The light source features adjustable SMA905 connectors for maximum fiber connection.
The light source adopts a spectral grade special halogen bulb with better filament packaging, which ensures the life of each halogen bulb and effectively reduces the frequency of bulb replacement.
The halogen light source adopts high-performance light bulbs originally imported from Osram in Germany. It has the characteristics of high luminous efficiency, small size, easy control, good color temperature and color rendering, long life, low light decay, and high output power. It can be widely used in Traditional desktop spectrometers and on-site portable miniature spectrometers.
The ATG1002 halogen light source can be equipped with a cuvette holder, which can directly perform the transmission and absorption of the cuvette or filter.
Features
- Small volume
- 5W, 20W optional
- Stable interface: Industrial grade PCB terminal 5.08-2P
- Ultra-long life: >2000 hours
- Broad spectrum, 360-2500nm
- The luminous position is accurate, the position is ±0.127
- Light intensity adjustable
Application
- Visible and infrared spectroscopic analysis
- Fluorescence analysis
- Medical immunoassay
- Air Pollution Analysis
- Water Pollution Analysis
- Microscope lighting
- Automated industry
