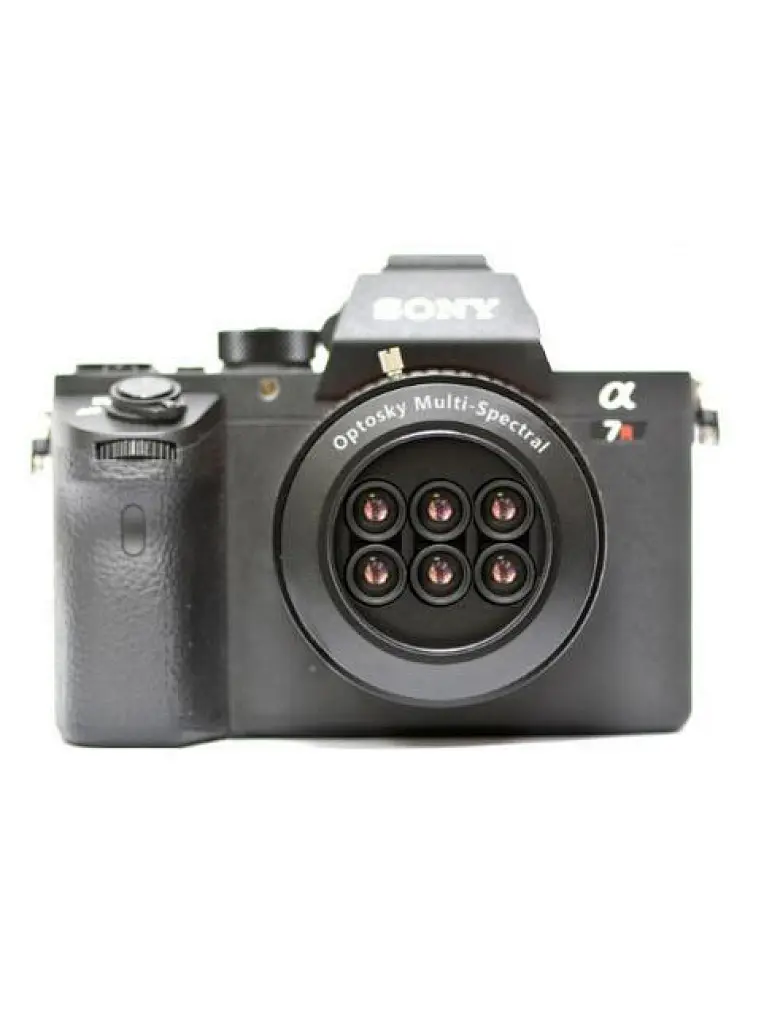

Multispectral Imager

ATH2600

ATH2600 is a multi-spectral imager independently developed and designed by Optosky. The system covers 12-14 band spectral images from visible light to near-infrared.

Delivery

FOB

minimum order

1 unit

Country of Origin

Made In China

Quantity

Contact Now

Description

ATH2600 is a multi-spectral imager independently developed and designed by Optosky. The system covers 12-14 band spectral images from visible light to near-infrared. The ATH2600 has a built-in solid-state band scanning mechanism, which can complete the scanning of each band without the need for mechanism operation; in addition, the ATH2600 also has a built-in lithium battery, a central processing unit, etc., and an optional auto-focus system. High-definition, high-quality and other characteristics.

ATH2600 adopts high-resolution CCD imaging device, with clear imaging and less noise. It is especially suitable for scanning and imaging large-sized flat samples.

ATH2600 is light and flexible, with excellent endurance, intelligence, complete data analysis and processing functions, real-time monitoring, real-time calibration, real-time output of inversion results and other functions.

Model	Feature
ATH2600-12	Number of bands: 4 lenses, 12 bands
ATH2600-14	Number of bands: 6 lenses, 14 bands

Features

Built-in solid-state push-broom device, optional auto-focus system
Band range: 405~850nm, including 12-14 bands
Spectral resolution: 15 nm
Built-in large-capacity lithium battery, can work in the field
Built-in high-resolution visible light camera
Can be controlled by mobile phones, iPads, laptops and other devices
Spatiotemporal Radiation Intensity Correction Technology

Application

Geology and Mineral Resource Exploration
Precision Agriculture, Crop Condition and Yield Evaluation
Forest pest monitoring and fire monitoring
Coastline and marine environment monitoring
Pasture Productivity and Pasture Monitoring
Environmental Monitoring of Lakes and Watersheds
Remote Sensing Teaching and Research
weather research
Water quality testing, soil monitoring

Performance parameter table

Number	Index	ATH2600-12	ATH2600-14
Spectral performance	Spectral range	405~850 nm	405~850 nm
	Band distribution	405、430、450、480、510、530、550、570、650、685、710、850nm	405、430、450、490、525、550、560、570、630、650、685、710、735、850nm
	Spectral resolution	Superior to 15nm	Superior to15nm
	Multispectral Chromaticity Band Resolution (Single Lens Composite)	3600 x 2200	2780 x 2650
	Number of spectral channels	12	14
	Dynamic Range	12bit	16bit
Imaging lens^*1	Imaging lens	Auto focus
	F#	6.0	5.6
	Effective focal length	25mm	21.8mm
	H-FOV	35°	25°
	V-FOV	26.6°	25°
	D-FOV	45.9°	32.4°
Electrical properties	Imaging speed	20 bands/s	20 bands/s
	Lithium battery life	>6 h	>6 h
	Data storage	SD卡（256GB，512GB可选）
	Data interface	USB3.0
	Power supply	12VDC，3A
	Visible light camera resolution	>800 CMOS	>750 CMOS
	Operating system	Android OS
	Screen	5.5 inch capacitive touch screen
	Screen Resolution	1920X1080

Note： 1：Imaging lens is standard, other focal length lenses are optional； 2：This product is independently developed by Opu Tiancheng, the parameters in the table are for reference only, and other parameters can be customized.
