Hyperspectral Microscope

ATH5010

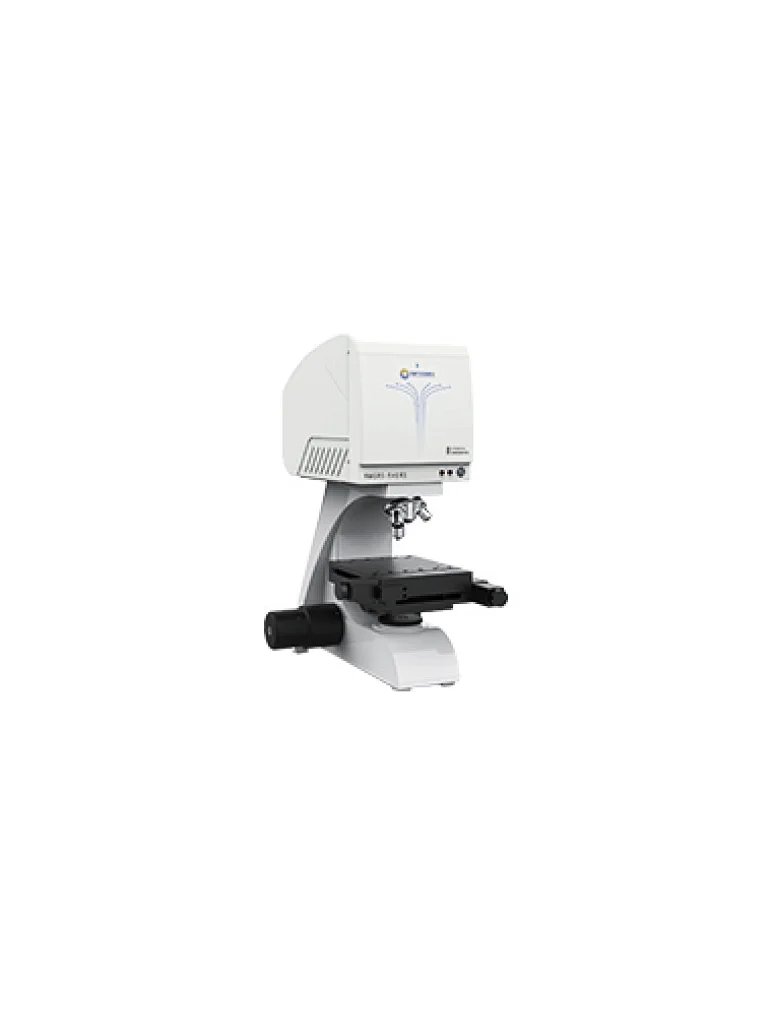

ATH5010 spectral camera is self-developed hyperspectral imaging microscope with compact size, HD, high quality，it consists of microscope, hyperspectral imager and data processing work station.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Contact Now
Description:
The ATH5010 is a compact, high-definition, and high-quality micro hyperspectral imager launched by Optosky. Its primary function is to scan fine samples to obtain reflectance/transmittance curves of different areas. It consists of a high-magnification microscope, a hyperspectral imager, and a data processing workstation.
The ATH5010 employs a 1920×1024-pixel (up to 2048×2048-pixel) hyperspectral imaging sensor, delivering clear images with minimal noise. It features a highly stable, high-blue, high-infrared, long-life halogen illumination source with a coaxial design, making it extremely user-friendly and requiring minimal maintenance, such as prolonged periods without the need for light source replacement. Additionally, the ATH5010 can integrate Raman spectroscopy, fluorescence spectroscopy, and other techniques to expand its applications.

Utilizing imaging spectroscopy technology, the ATH5010 enables rapid, accurate, and high spectral and spatial resolution imaging of samples. It is highly versatile and suitable for research in medicine, pathology, pharmaceuticals, and life sciences. This makes it an ideal experimental research equipment for medical institutions, research organizations, medical colleges, and pharmaceutical companies.
Model
Feature
ATH5010
Upright Microscope，400~1000nm
ATH5010-17
Upright Microscope，900~1700nm
ATH5010
Built-in Push-broom Micro Hyperspectral Imager
ATH5010-4-17
Upright Microscope，400~1700nm
ATH5010-4-25
Upright Microscope，400~2500nm
Features:
  • Multiple spectral ranges available
  • High spectral resolution, up to 1.3nm
  • High number of spatial channels, up to 2048
  • High spatial resolution, up to approximately 10μm
  • Objective magnification
Standard ：5×, 10×,20×
Optional：40×, 100×
  • 5-megapixel visible light camera, with optional cooled high-performance camera
  • Highly stable, high-blue-output halogen lamp
  • Long-life halogen illumination source, multiple light source options available
  • Upright configuration, with inverted configuration optional, compatible with various microscopes
  • Bright-field and dark-field scattering microscope systems optional
Application:
  • Medical Institute, Cancer tissue sorting, blood cellcategories
  • Research institute, Universities and colleges
  • Pharmaceutical companies, Chinese medicine fake ortrue
  • Food Safety, Meat origin ID
  • Micro plastics identification
  • Minerals sorting
  • Forensic identification, Documents identification
  • Biological science, bacteria, cell analysis
  • material science, micro materials detection
  • Uniformity analysis of LED luminescencesurface
