UAV Hyperspec Imager
ATH9010
ATH9010 series is the 3rd generation hyperspectral imager . This new series feature compact and light.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Description

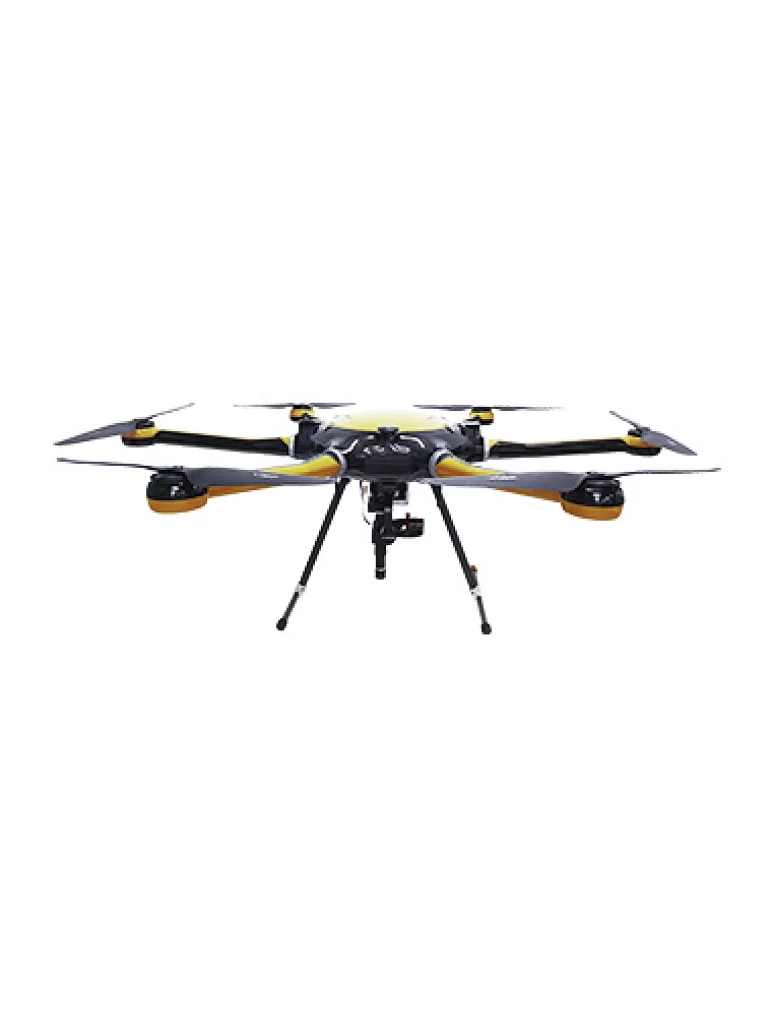

The ATH9010 series UAV hyperspectral imager is the third generation UAV hyperspectral imager launched by Optosky. It is a series of small, lightweight UAV-borne micro-hyperspectral imagers. It is powered by a highly stable six-rotor. It is composed of a highly stable UAV, a high-stability pan/tilt, a hyperspectral imager, a large-capacity storage system, a wireless image system, a GPS navigation system, a ground receiving workstation, and a ground control system.
ATH9010 (standard configuration) and ATH9010W (wide field of view) adopt high-performance detection and imaging devices of 1920×1200 pixels and 4096X3000 respectively, with clear images and less noise. The ATH9010 series also comes with high-performance hyperspectral data acquisition and processing software.
The ATH9010 series UAV hyperspectral imager can be used to measure the spectral information of plants, water bodies, soil and other surface objects in real time, and obtain spectral images. By analyzing the spectral images, it can establish a relationship with the physical and chemical properties of plants, etc., and be used for plant classification. Research on plant growth conditions, etc. The entire system is compact in design, and the main host of the imaging spectrometer has high spectral resolution. It also adopts an external push-broom imaging method. It can form an independent measurement system with a field rotating platform and an indoor linear scanning platform. It can also be mounted with a drone for aerial remote sensing operation.
Model | Feature |
ATH9010 | Standard configuration type, band range 380-1000nm, heavy-duty 6-rotor UAV, flight time 45 minutes |
ATH9010W | Wide field of view, heavy-duty 6-rotor drone, flight time 45 minutes |
ATH9010-FW | Vertical take-off and landing fixed-wing UAV, flight time 2 hours, flight distance 120km |
ATH9010W-FW | Wide field of view, vertical take-off and landing fixed-wing UAV, flight time 2 hours, flight distance 120km |
ATH9010-17 | Standard configuration type, band range 900-1700nm, heavy-duty 6-rotor UAV, flight time 45 minutes |
ATH9010-25 | Standard configuration type, band range 1700-2500nm, heavy-duty 6-rotor UAV, flight time 45 minutes |
ATH9010-4-17 | Heavy-duty 6-rotor UAV, band range 380-1700nm |
ATH9010-4-25 | Heavy-duty 6-rotor UAV, band range 380-2500nm |
Features:
- Band range: 380~1000nm
- High spectral resolution: better than 1.3 nm
- Wide field of view: 23.4°@f=25mm (depending on the lens)
- Instantaneous field of view: 0.00977mrad@f=35 mm (related to the lens)
- Flight altitude: 50~1000 meters, recommended 100-300m
- I7 onboard computer supports up to 2T storage and can store up to 100 hours of imaging data
- 1.5m wheelbase large multi-rotor UAV with high load capacity and strong scalability;
- Ultra-long flight time: about 45 minutes, large cruising area
Applications:
- Geological and mineral resources exploration, soil monitoring
- Precision agriculture, crop growth and yield assessment
- Forest pest and disease monitoring and fire prevention monitoring
- Coastline and marine environment monitoring
- Pasture productivity and pasture monitoring, ecological environment protection and mine monitoring
- Remote sensing teaching and scientific research, meteorological research, disaster prevention and control
- Lake and watershed environmental monitoring, water quality testing
- Agricultural and livestock product quality testing
- Military, Defense and Homeland Security
