ATHL9010 |
ATHL9010P |
ATHL9010W |

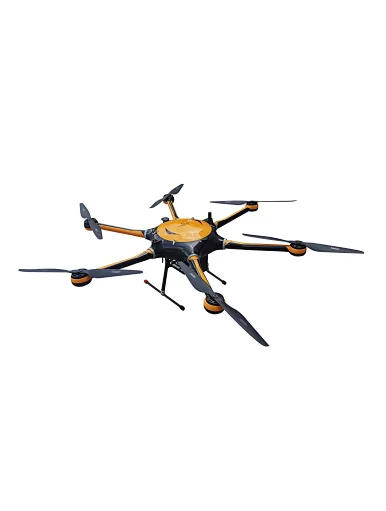

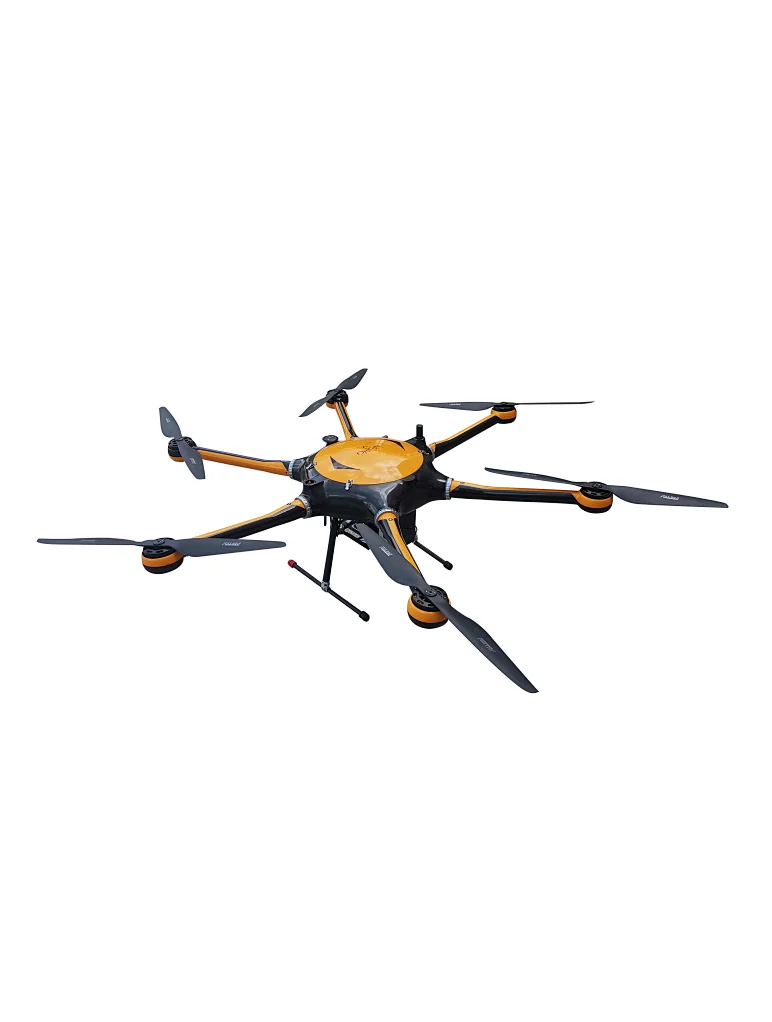

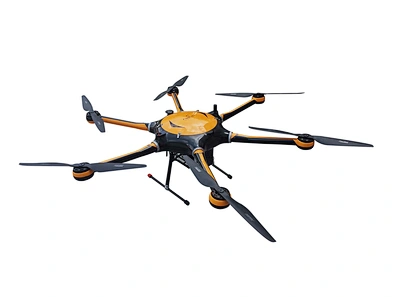

UAV System |
|
|
Drone |
Luxury Six Rotor Drone customized with load hour > 45 minutes |
Cloud Platform |
High stable Cloud platform driven by 3-Phase BLDC Motor |
Rotor No. |
Six Rotors |
Lift |
Take off and land vertically |
Wheelbase |
1500 mm |
Max base |
6 Kg |
Max altitude |
5000 m |
Drone size |
1650 X 1410 X 500 mm |
GPS accuracy |
1.5 m |
0.5 m |
<0.3m,RTK |
Remote change imaging specs (Y/N) |
No |
Yes |
Yes |
Flight duration |
>45 minutes |
>45 minutes |
>45 minutes |
Ground control distance |
5 Km |
10 Km |
10 Km |
Hyperspectral Imager |
Interface |
USB3.0 |
USB3.0 |
USB3.0 |
Imaging mode |
Push broom |
Resolution
Before Binning |
1920(spatial-axis) ×
1200(spectral-axis) |
1920(spatial-axis)×
1080(spectral-axis) |
2048(spatial-axis)×
2048(spectral-axis) |
Resolution
After Binning |
480(spatial-axis)×300(spectral-axis) |
480(spatial-axis)×270(spectral-axis) |
512(spatial-axis)×512(spectral-axis) |
Max frame rate |
270 Hz |
130 Hz |
180 Hz |
Load PC |
Intel I7 CPU 16G |
PC Hard drive |
512 GB SSD,Max 2T |
Image resolution |
1920 × 1200 |
1920×1080 |
2048×2048 |
Power supply |
12V,3W |
12V,5W |
12V,5W |
LiDAR |
Principle |
The LIDAR system uses the time of flight(TOF) to measure the distance |
Laser |
1550nm Eye-safe |
Speed |
500,00 points per second, max 1,000,000 points per second depends on the distance |
Scan Line |
1750 lines |
FOV |
Horizontal 15°° |
Angular resolution |
Horizontal 0.009°° |
Scan rate |
500 Hz |
Elevation |
1~300 m,Max 600 m |
Laser return mode |
Multiple returns |
Altitude deviation |
<20 mm |
Weight |
1.5 Kg |
Reliability |
|
|
Working Temp |
-10 ~ 45℃ |
Storage Temp |
-20 ~ 65℃ |
-20 ~ 65℃ |
-20 ~ 65℃ |
Working Humidity |
≤85% RH |
≤85% RH |
≤85% RH |
Optical Parameters(customization option) |
Spectral range |
400~1000 nm (customization option ) |
400~1000 nm (customization option ) |
400~1000 nm (customization option ) |
Resolution |
<1.5 nm |
<1.5 nm |
<1.5 nm |
Smile |
<1/3 pixel |
<1/3 pixel |
<1/3 pixel |
Keystone |
<1/3 pixel |
<1/3 pixel |
<1/3 pixel |
Lens FL |
35mm |
35mm |
35mm |
FOV |
15.2° |
14.6° |
21.6° |
Slit size |
30μm |
30μm |
30μm |
NA |
0.19(F/2.6) |
0.2(F/2.4) |
0.2(F/2.4) |
Optical bench |
PG imaging spectrometer |
PG imaging spectrometer |
PG imaging spectrometer |
Sensor |
|
PG imaging spectrometer |
Type |
CMOS |
CCD |
CMOS |
Range |
350~1100 nm |
350~1100 nm |
350~1100 nm |
Effective pixel |
1920 × 1200 |
1920×1080 |
2048×2048 |
Dynamic range |
60 dB |
66 dB |
72 dB |
Bit depth |
12 bit |
12bit |
12bit |
Mode |
Software Binning or hardware binning(software setup) |
Software Binning or hardware binning(software setup) |
Software Binning or hardware binning(software setup) |
PC |
I7,16G ,512GB,Max 2TB |
Visible camera |
Resolution |
2-mega pixels |
Frame rate |
20 FPS |
Software |
Basic Functions |
Flexible to set exposure time, gain, speed, dynamic real-time images and curves |
Flexible to set exposure time, gain, speed, dynamic real-time images and curves |
Flexible to set exposure time, gain, speed, dynamic real-time images and curves |
Focus adjust |
Dynamic real-time image obtained through precision focus adjustment can avoid human visual focusing error |
Dynamic real-time image obtained through precision focus adjustment can avoid human visual focusing error |
Dynamic real-time image obtained through precision focus adjustment can avoid human visual focusing error |
Software Functions |
Data acquire software can real-time shows images and curves
Transmission and reflectance measure mode
set exposure time, speed in flexible
Standard in-built Library and self-built library
Others like images cut and identify spectrum
|
Data acquire software can real-time shows images and curves
Transmission and reflectance measure mode
set exposure time, speed in flexible
Standard in-built Library and self-built library
Others like images cut and identify spectrum |
Data acquire software can real-time shows images and curves
Transmission and reflectance measure mode
set exposure time, speed in flexible
Standard in-built Library and self-built library
Others like images cut and identify spectrum |
