Description

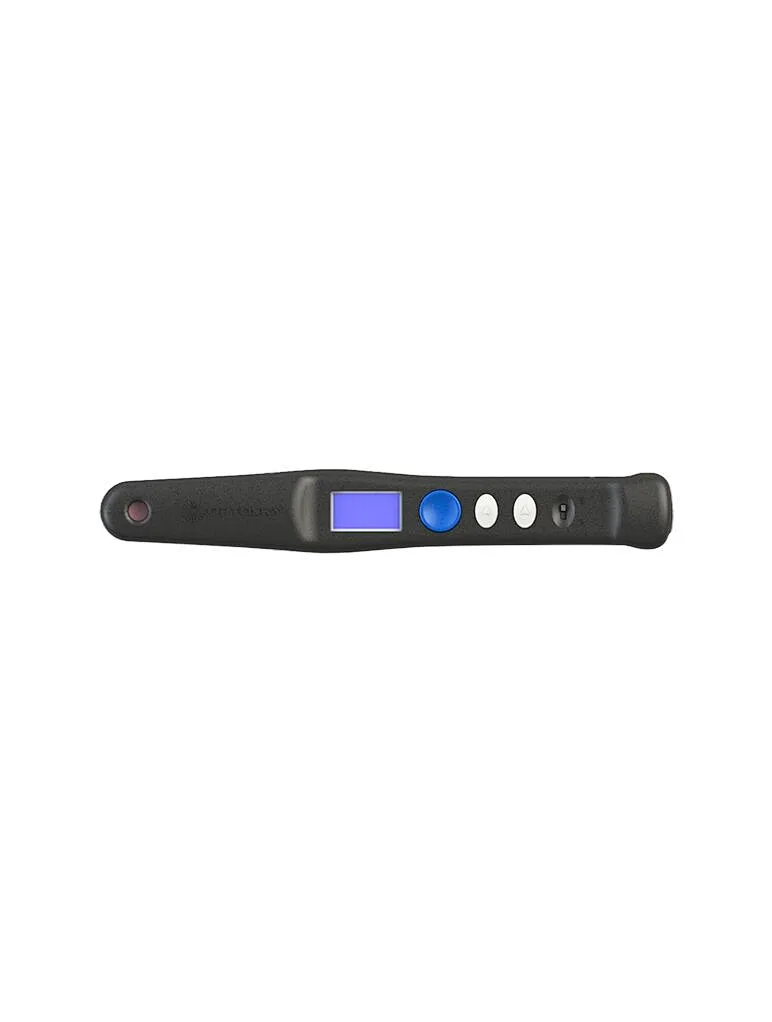

The ATM2000 is a portable, easy-to-use power meter developed for everyday production environments with low power lasers. It is very small, like a pen size, easy to carry. And it can go deep into tiny areas to detect laser light.
The ATM2000 Pen Laser Power Meter uses a large OLED display to show the measured power.Built-in lithium battery provides the ATM2000 with current for approximately 10,000 measurements.
ATM2000 also has a built-in 1000 times attenuation film, which can be switched to use when measuring stronger laser power.
Model | Remarks |
ATM2000 | Basic model, measurement wavelength range: 400-1100nm |
ATM2000UV | Ultraviolet version, measurement wavelength range: 190-1100nm |
ATM2000NIR | Near-infrared version, measuring wavelength range: 900-1700nm |
ATM2000IR | Infrared version, measurement wavelength range: 900-2500nm |
Features
lSmall size, easy to carry
lBuilt-in high-capacity lithium battery, can measure 10,000 times
lBuilt-in 1000 times attenuation film, can measure high power laser
lHigh-definition large-size OLED screen
lSpot size: φ3mm
lBuilt-in alarm buzzer
Application
lLaser manufacturerl
lOptical module manufacturers
lOptical power detection of optics and spectrometers in scientific research institutes
lOptical processing center
lLED manufacturers
lUV LEDs
