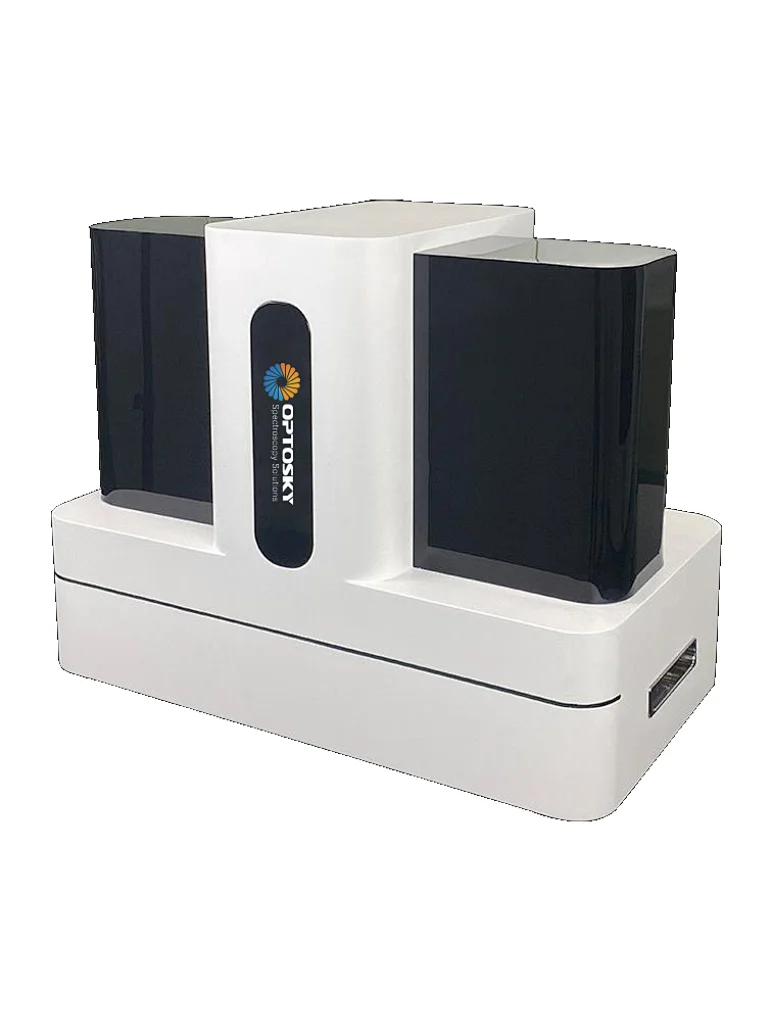

Microscope Slide Scanner
ATMSS200A
FOB
1 unit
Made in China
The monitor display interface allows to analyze the entire sample and to observe it in its whole area moving freely all along its entire surface and zooming in at will (from 1x to 40x) using the pc mouse.
Quantity
Description
Digitization system for cytological samples with a 200-slides-per-batch loading device. It satisfies the needs of an increased laboratory productivity.In addition to the Vision series’ features,this model includes automatic scanning of the samples in queue.
The Digital Vision’s product-line systems offer the possibility to automatically scan the cytological samples in order to obtain an high resolution digital copy viewable on the pc, so that a copy of each slide could be digitally stored and remote reporting could be possible, in every part of the world, also far away from the sample preparation point.
The monitor display interface allows to analyze the entire sample and to observe it in its whole area moving freely all along its entire surface and zooming in at will (from 1x to 40x) using the pc mouse.
ATMSS200A can flexibly control the Settings of scanning mode, jigsaw mode, focus mode and so on, with higher scanning efficiency, 200 slides can be scanned at a time, continuous sample addition, and anti-debris function. Equipped with excellent optical system, excellent image quality can be obtained.It can be used in large hospitals and third party testing institutions.
Features:
⚫AI algorithm that can automatically detect coverslip surface and rescan the slide at correct focus plane.
⚫The unique slide holder design and loading/unloading mechanism ensure the lowest risk of sample damage under the condition of unattended operation
⚫3-hole motorized objective lens exchanger, supporting Olympus 10x, 20x, and 40x objective lenses
⚫Continuous loading and unloading mode enable the scanner to run 24x7 without having to break
⚫ Supports emergency slide priority loading and scanning;
⚫ Supports multiple image formats, including Tiled Tiff, SVS, JPG, WebP, and customized formats
⚫Easily integrated with third-party data management and AI imaging process platforms.
Application：
It can be used for morphological analysis and pathological analysis of clinical specimens such as chromosomes, blood cells, cervix and mammary glands, as well as observation and research of microorganisms, animals and plants
Digitization system for cytological samples with a 200-slides-per-batch loading device. It satisfies the needs of an increased laboratory productivity.In addition to the Vision series’ features,this model includes automatic scanning of the samples in queue.
The Digital Vision’s product-line systems offer the possibility to automatically scan the cytological samples in order to obtain an high resolution digital copy viewable on the pc, so that a copy of each slide could be digitally stored and remote reporting could be possible, in every part of the world, also far away from the sample preparation point.
The monitor display interface allows to analyze the entire sample and to observe it in its whole area moving freely all along its entire surface and zooming in at will (from 1x to 40x) using the pc mouse.
ATMSS200A can flexibly control the Settings of scanning mode, jigsaw mode, focus mode and so on, with higher scanning efficiency, 200 slides can be scanned at a time, continuous sample addition, and anti-debris function. Equipped with excellent optical system, excellent image quality can be obtained.It can be used in large hospitals and third party testing institutions.
Features:
⚫AI algorithm that can automatically detect coverslip surface and rescan the slide at correct focus plane.
⚫The unique slide holder design and loading/unloading mechanism ensure the lowest risk of sample damage under the condition of unattended operation
⚫3-hole motorized objective lens exchanger, supporting Olympus 10x, 20x, and 40x objective lenses
⚫Continuous loading and unloading mode enable the scanner to run 24x7 without having to break
⚫ Supports emergency slide priority loading and scanning;
⚫ Supports multiple image formats, including Tiled Tiff, SVS, JPG, WebP, and customized formats
⚫Easily integrated with third-party data management and AI imaging process platforms.
Application：
It can be used for morphological analysis and pathological analysis of clinical specimens such as chromosomes, blood cells, cervix and mammary glands, as well as observation and research of microorganisms, animals and plants
