Oil Analysis Spectrometer

Oil Analysis Spectrometer

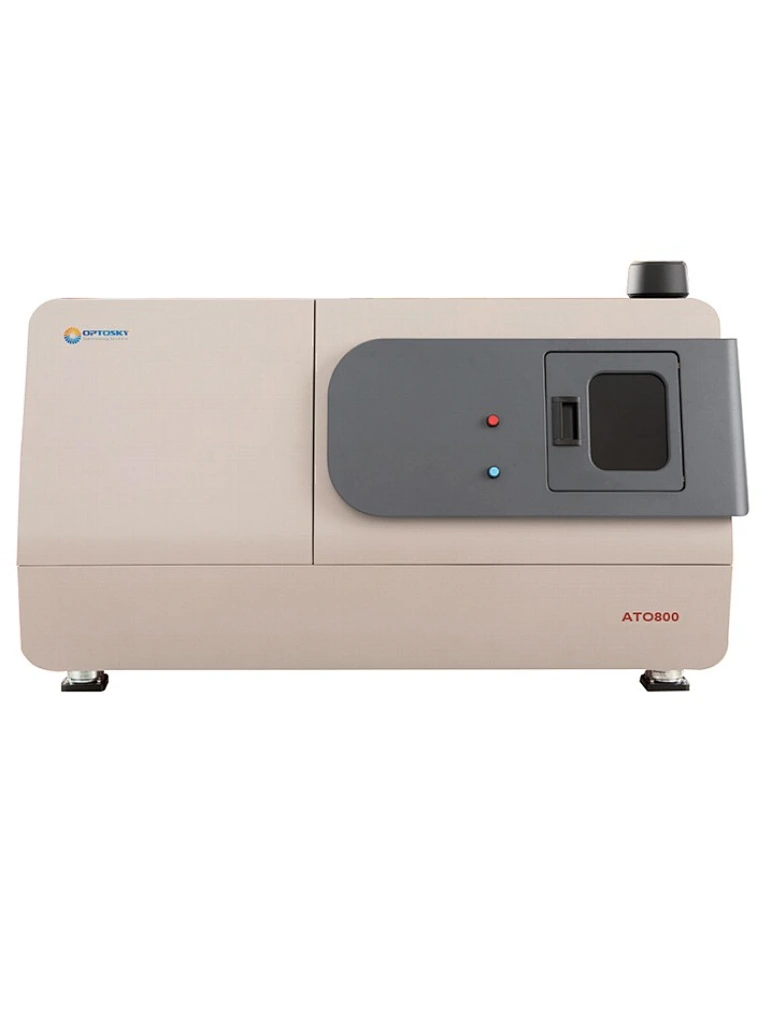

Model NO. ATO800

Delivery FOB

minimum order 1 unit

Country of Origin Made In China

ATO800 is an effective tool for oil monitoring, you can directory inject samples to detect the element contents of the ware of metals, pollutants and additives in samples such as lubricating oil, hydraulic oil, fuel oil, coolant, lubricating grease, industrial circulating water, etc.

Quantity

Contact Now add to cart

Description

ATO800 Oil Analysis Spectrometer (OAS)—also known as Rotating Disc Electrode Optical Emission Spec-trometer (RDE-OES)，oil spectral analysis can provide early warning of major failures of equip-ment, through real-time analysis and trend analysis of the spectral analysis data, you can identify potential hidden dangers of equipment in advance, optimize maintenance plans, reduce equipment failure rate, realize proactive preventive maintenance, and accordingly greatly reduces operating costs.

ATO800 is widely used in military, aviation, shipping, nuclear power, wind power, electric power, petro-chemical, mining, rail transit,construction machinery, university scientific research, oil testing institutions and other fields of oil quality monitoring, equipment wear monitoring and fault diagnosis and analysis, is a standard analytical mean in the field of oil analysis.

Features

• Reduce equipment maintenance costs
• Optimize operation safety factor
• Improve device attendance
• Extend the service life of the equipment
• Reduce equipment downtime
• Improve device management
• Reduce oil consumption
• Equipment has a wide range of applications
• Built-in working curve
• Multi-panel design
• Standard configuration simultaneously determines 24 elements

Application

• Military aviation oil testing
• Ship and rail transit oil testing
• Electric power (nuclear power, wind power) oil testing
• Mineral and petrochemical industry oil testing
• Mechanical Engineering Oil Analysis
• Oil product analysis by colleges and testing institutions

parameter

ATO800
Optical system	Optical system	Pashen-Runge, Roland circle optical structure
	Focal length	500mm
	Optical resolution	0.006nm
	Spectral range	190-900nm
	Double chamber system	Short wave chamber wavelength: 200~470nm Long wave chamber wavelength: 470~800nm
	High-performance holographic diffraction grating, Grating notching 2700L/mm
	Both Roland circle and the host machine are equipped with a constant temperature system to maintain constant temperature independently, 40±1°C; the constant temperature is adjustable, which is effectively suitable for too high or too low environment temperature condition
Excitation light source	Bidirectional high performance excitation light source,14000V ignition pulse, digital discharge parameter setting, digital pulse generator, digital offline pulse control
	Dual-phase zero-crossing signal detection technology, avoiding high-voltage spark electromagnetic compatibility interference, and improving voltage stability
Detector	Cluster optical fiber signal transmission dual-layer,multi-CCD detection spectrum system
	The linear array of multiple CCDS is arranged in a Roland circular shape, which realizes continuous and simultaneous detection of the whole band, and facilitates later development of other elements
	High performance CCD detector, each CCD with 3648 pixels
	Ultraviolet band spectral enhancement detection technol ogy, enhances the ultraviolet band light intensity, and prolongs the life
Excitation chamber	Rod electrode holder for automatic adjustment of electrode pole distance device, ensure that the height of electrode spacing is consistent for all measurements
	The excitation room has a visual window, which can visualize the whole excitation process
	Complete safety monitoring and protection functions,including excitation chamber door safety lock, sample cup, disc electrode, rod electrode, spark gap sensing monitoring device (laser light source automatic position ing),with safety alarm and automatic flameout function, so as to ensure user safety
	Semi-permeable cutoff to prevent oil sputtering contami nation and filter stray light
	Aluminum fire extinguishing device, to prevent volatile sample ablation to produce flames
Computer system	Operating system: Instrument control and data manage ment software based on Windows platform
	External connection of the control computer
Power supply and environment requirements	Power	220V±10%, 50/60Hz, AC power, Built-in pressure stabilizing device, no special grounding device is required
	Power consumption	≤1kw
	Fusing current	16A
	The range of operating temperature	-40~50℃
	The variation allowance of the maximum temperature	±5℃/h
	Operating humidity	0~90%, no condensation
	Working altitude	≤7000m
Specification	Size	1040mm(length) X460mm(width) X700mm(height)
	Weight	125kg

Datasheet Download:

ATO800_Datasheet_V1.0_20230906.pdf
