Mini spectrometer

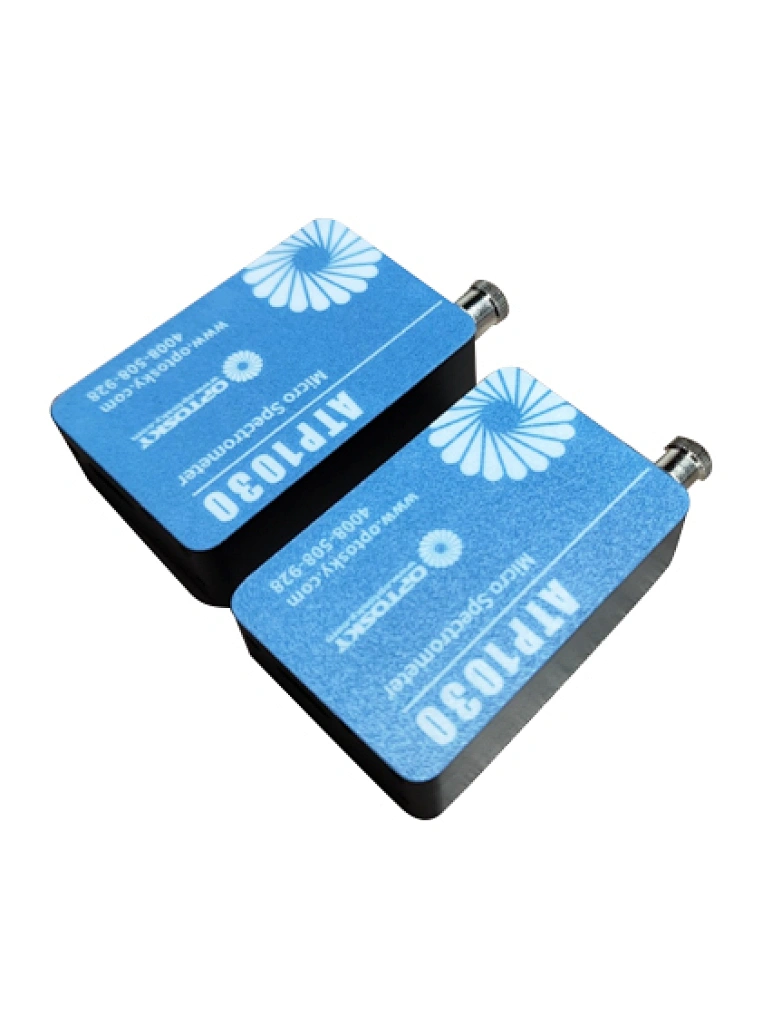

ATP1030
Optosky has been developing spectrometers manufacturer with 20 years, ATP1030 mini spectrometer design is the latest high-resolution M-shape optical bench, combined with UV-enhanced 1024-pixel linear CMOS detector, spectral range of 190-1100nm.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made In China
Quantity
Contact Now

Description

Based on Optosky's more than 10 years of experience in developing  spectrometers,  ATP1030  combined  with UV-enhanced   1024-pixel   linear   CMOS,   which   can adapt to testing in the wavelength range of 200- 1100nm. The CMOS detector has the shortest exposure time and can be controlled Within 1ms, customers can precisely control the signal-to-noise ratio of the spectrometer.
ATP1030  has  the   characteristics  of  high  reliability, ultra-high speed, low cost, high cost performance, etc. It is  a  miniature   spectrometer  that   can  be   adapted  to various environmental uses such as online testing.
ATP1030  is  an  ideal  choice  for  UV,  visible,  and near-infrared spectroscopy applications. It has different slits,    gratings,    mirrors,    and    filters    to    choose from,Spectrometers  suitable  for  different  applications can be configured according to your needs. The spectral range  starts  from   200nm.   to   1100nm,   the   spectral resolution can be between 0.5 and 5nm, and Optosky can provide customized options for OEM customers.
ATP1030 can receive the light to be measured from the SMA905  interface  optical  fiber  input  or  free  space input, measure according to the set integration time, and output the measurement results through Type-C, USB2.0 (high speed) or UART.

Features

  • Ultra-thin, ultra-miniature, high resolution
  • Spectral range: 200- 1100 nm (widest: 900 nm)
  • Detector: 1024 pixel CMOS;
  • Integration time: 1 ms ~ 65s
  • Power supply: DC 5V@<200mA;
  • Power interface: Type C USB interface or expansion interface
  • ADC bit depth: 16 bits;
  • ADC maximum sampling rate: 10 MHz;
  • Optical input interface: SM905 optical fiber interface or free space input;
  • Data output interface:Type-C,USB2.0 (high speed) or UART; 10-pin (2x5) expansion interface;
