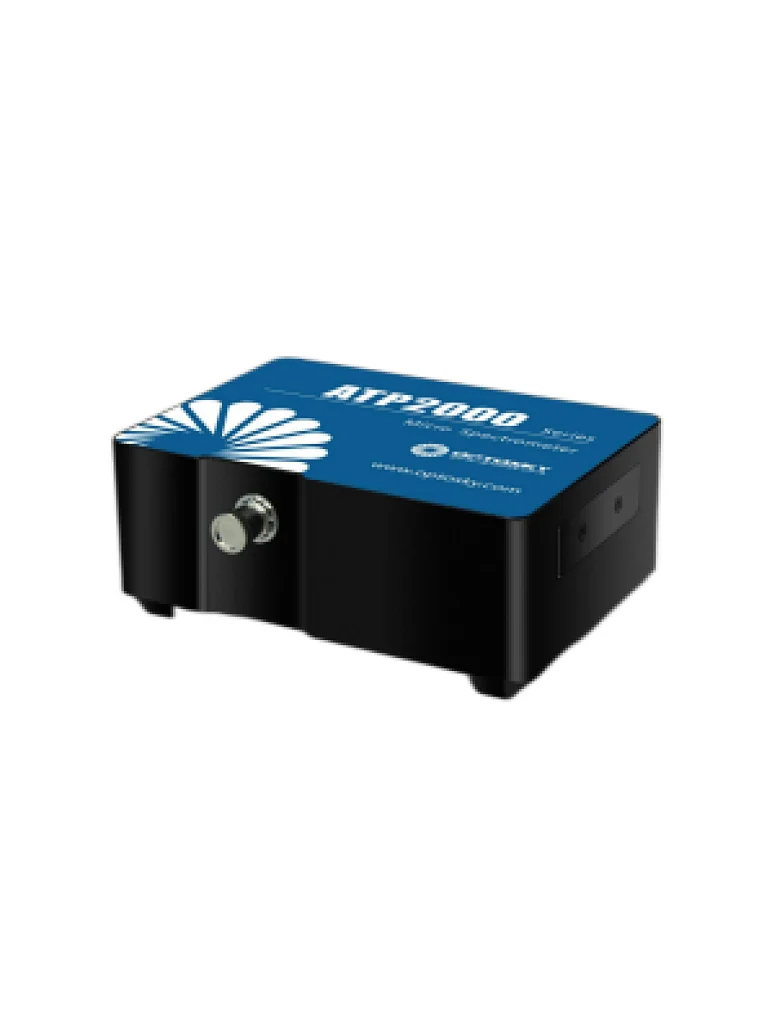

Low Noise CCD Spectrometer
ATP2000D
ATP2000D can receive SMA905 fiber input light or free space light, through the USB2.0 or UART port, output the measured spectral data. It only needs a 5V DC power supply or USB power supply, which is very easy to integrate.
Delivery
EXW
minimum order
1
Country of Origin
Made in China
Quantity
Description
With 20 years of experience in the development of optical fiber spectrometers, Optosky has launched a new generation of high-performance ultra-thin optical fiber spectrometers: ATP2000D. It adopts ultra-low noise CCD, and has specially designed ultra-low noise correlated double sampling circuit, 18-bit ultra-low The ADC quantizes noise, which greatly reduces the noise of the sensor and obtains an excellent signal-to-noise ratio (about 8 times higher than similar products). The ATP2000D can monitor the temperature of the optical platform in real time, thus providing a basis for the implementation of temperature compensation, which greatly improves the measurement reliability of the ATP2000D. The measurement results do not change with the ambient temperature, which is the best level in the industry.
ATP2000D can receive SMA905 fiber input light or free space light, through the USB2.0 or UART port, output the measured spectral data. It only needs a 5V DC power supply or USB power supply, which is very easy to integrate.
Features
With 20 years of experience in the development of optical fiber spectrometers, Optosky has launched a new generation of high-performance ultra-thin optical fiber spectrometers: ATP2000D. It adopts ultra-low noise CCD, and has specially designed ultra-low noise correlated double sampling circuit, 18-bit ultra-low The ADC quantizes noise, which greatly reduces the noise of the sensor and obtains an excellent signal-to-noise ratio (about 8 times higher than similar products). The ATP2000D can monitor the temperature of the optical platform in real time, thus providing a basis for the implementation of temperature compensation, which greatly improves the measurement reliability of the ATP2000D. The measurement results do not change with the ambient temperature, which is the best level in the industry.
ATP2000D can receive SMA905 fiber input light or free space light, through the USB2.0 or UART port, output the measured spectral data. It only needs a 5V DC power supply or USB power supply, which is very easy to integrate.
Features
- Ultra-low noise, down to 5counts p-p
- Built-in ultra-low noise linear detector
- Super small, super thin, super light
- Fiber input, signal output, on the same side, very easy to integrate
- Ultra-low noise CCD signal processing circuit
- Max spectral range: 180-1180nm
- Spectral resolution: 0.3-3nm
- Optical configuration: crossed Czerny-Turner
- Integration time:0.1ms-130s
- Power supply: DC 5V±10% or USB
- Built-in 18-bit ultra-low noise ADC
- Optical input interface: SMA905 or Free space
- Data output interface: USB2.0 (High speed) or UART
- 20-pin connector for interfacing to external products
Application
- Transmittance, reflectance detection
- Fast, ultra microvolume spectrophotometer
- Environmental protection equipment (smoke, water quality)
- Spectral analysis/ Radiation spectrophotometric analysis/ spectrophotometric analysis
- Laser wavelength measurement
