Cost-effective Spectrometer

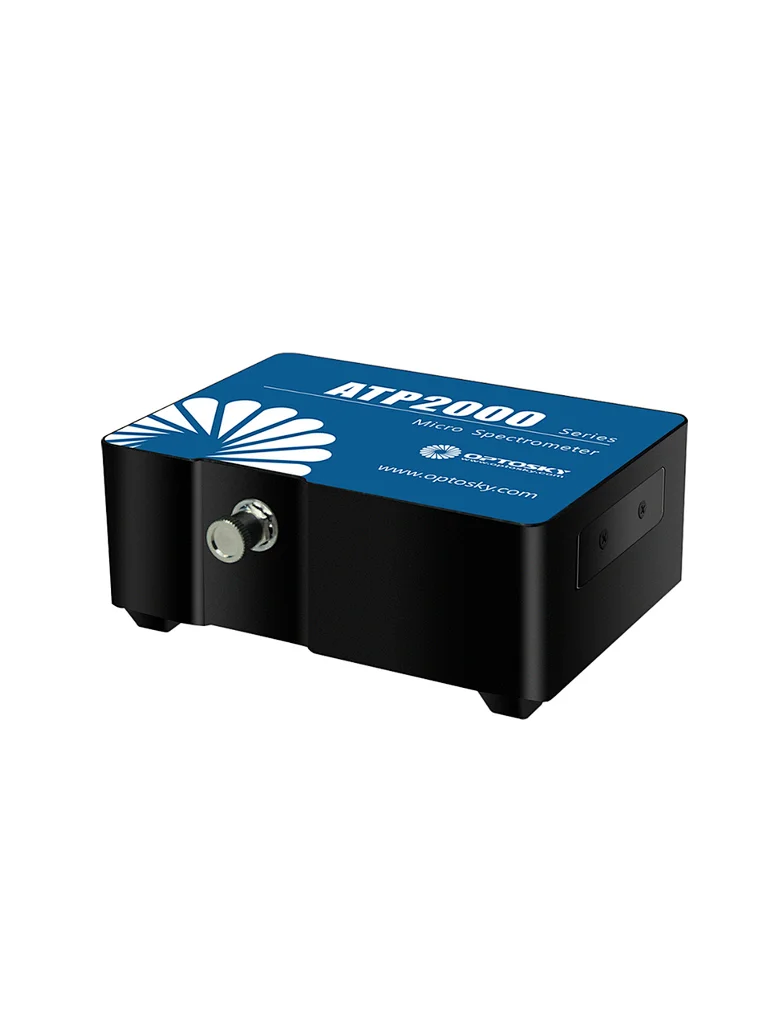

ATP2000P is the foundation of Optosky in ATP2000, a high-performance multi-purpose spectrometer using a number of breakthrough technologies was launched.
The CMOS detector exposure time can be controlled within 1ms, and customers can precisely control the signal-to-noise ratio of the spectrometer.
ATP2000P is an ideal choice for UV, visible, and near-infrared spectroscopy applications. It has different slits, gratings, mirrors, and filters to choose from. Spectrometer can be configured to suit different applications according to your needs. The spectral range starts from 200nm to
1100nm, spectral resolution can be selected from 0.5 to 4.0nm, Optosky can also provide customized options for OEM customers.
ATP2000P can receive the light to be measured from the SMA905 interface optical fiber input or free space input, measure according to the set integration time, and output the measurement results through USB2.0 (high speed) or UART.
- Spectral region: 200-1100 nm.
- Spectral resolution: 0.01-4 nm.
- Linear low noise CMOS detector with 2048 pixel.
- Optical configuration: crossed C-T.
- Integration times: 2ms-130s.
- Supply voltage: DC 5V (USB Power).
- 18 bit (output 16 bit), 2MHz A/D Converter.
- Interface: USB2.0 or UART.
- 20-pin connector for interfacing to external products.
- LED sorting machine;
- Multi-parameter online water quality analyzer;
- Micro-volume, fast spectrophotometer;
- Fluorescence spectrometer;
- Biochemical analyzer;
- Transmittance detection, reflectivity detection;
- LIBS;
