Compact Spectrometer

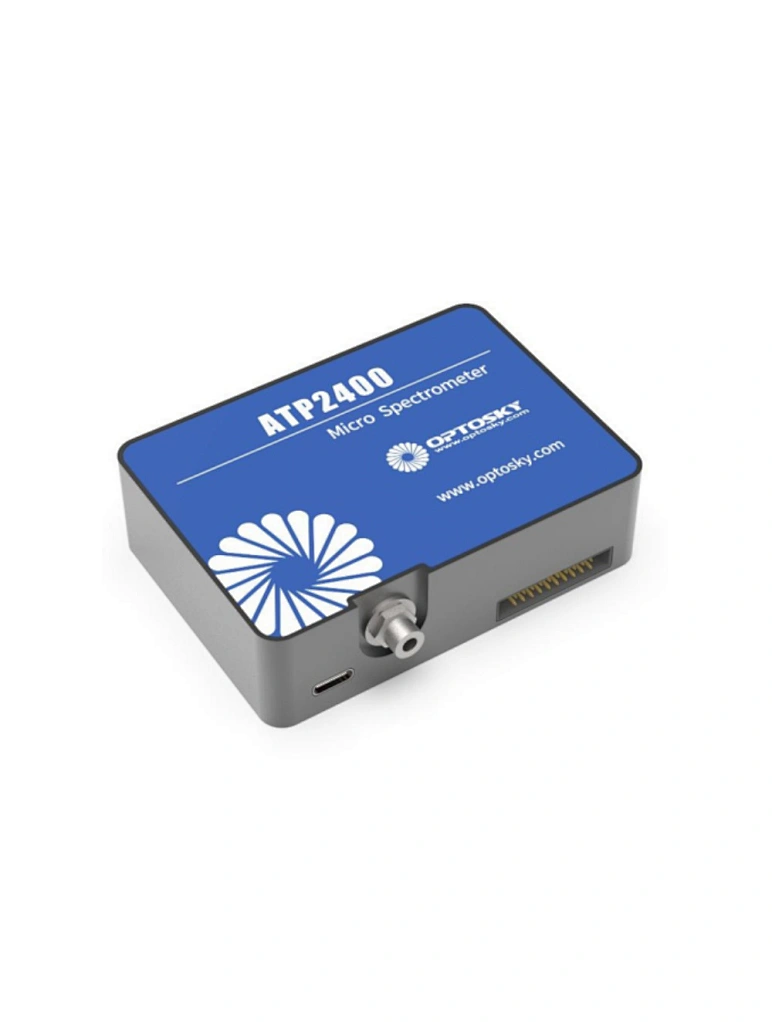

ATP2400
ATP2400 is a fiber optic spectrometer developed with 20 years of experience. Aopu Tiancheng has launched a new generation of high-performance ultra-thin fiber optic spectrometers.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Contact Now
Description:
After 20 years of experience in the development of optical fiber spectrometer, Optosky launched a new generation of high-performance ultra-thin fiber spectrometer: ATP2400, which has built-in pulsed xenon lamp drive circuits, adopts high sensitivity linear CMOS, and specially customized ultra-low noise CMOS signal processing circuits, which greatly reduces The noise of the sensor is lower, the signal-to-noise ratio is obtained (about twice higher than that of similar competitors), and the measurement reliability of the ATP2400 is improved. The measurement results do not change with the ambient temperature, which is the best level in the industry.
ATP2400 spectrometer can receive SMA905 fiber input light or free space light, and output spectral data measured through USB2.0 or UART ports.
ATP2400 spectrometer only requires a 5V DC power supply or USB power supply, which is very easy to integrate.
Model
Detector pixels
ATP2400
2048 pixels
ATP2400-LVF
2048 pixels, built-in LVF to suppress multi-order diffraction
ATP240-4
4096 pixels

Features：
  • Ultra-small, ultra-thin, ultra-light;
  • Detector: Linear CMOS
  • Detector pixels: 2048 pixels
  • Ultra-low noise CCD signal processing circuit
  • Maximum spectral range: 190-1180 nm(Maximum width: 900 nm)
  • Spectral resolution: 0.1-2 nm(Depends on spectral range and slit width)
  • Optical path structure: cross C-T
  • Built-in pulsed xenon lamp driver
  • Integration time: 1ms-65s
  • Power supply: DC 5V±10% or USB power supply
  • 16bit, 2MHz ADC
  • Optical input interface: SMA905 or free space
  • Data output interface: USB2.0 (High speed) or RJ-45 interface
  • 20-pin double-row external expansion interface
Application:
  • Fast and ultra-micro spectrophotometer;
  • Environmental protection equipment (flue gas, water quality);
  • Reflection and transmission spectrum detection;
  • Spectral analysis, radiation spectroscopic analysis, spectrophotometric analysis;
  • Laser wavelength measurement.
