Scientific-Grade Spectrometer

ATP6500

Delivery

FOB

minimum order

1 unit

Country of Origin

Made in China

Quantity

Contact Now

Description

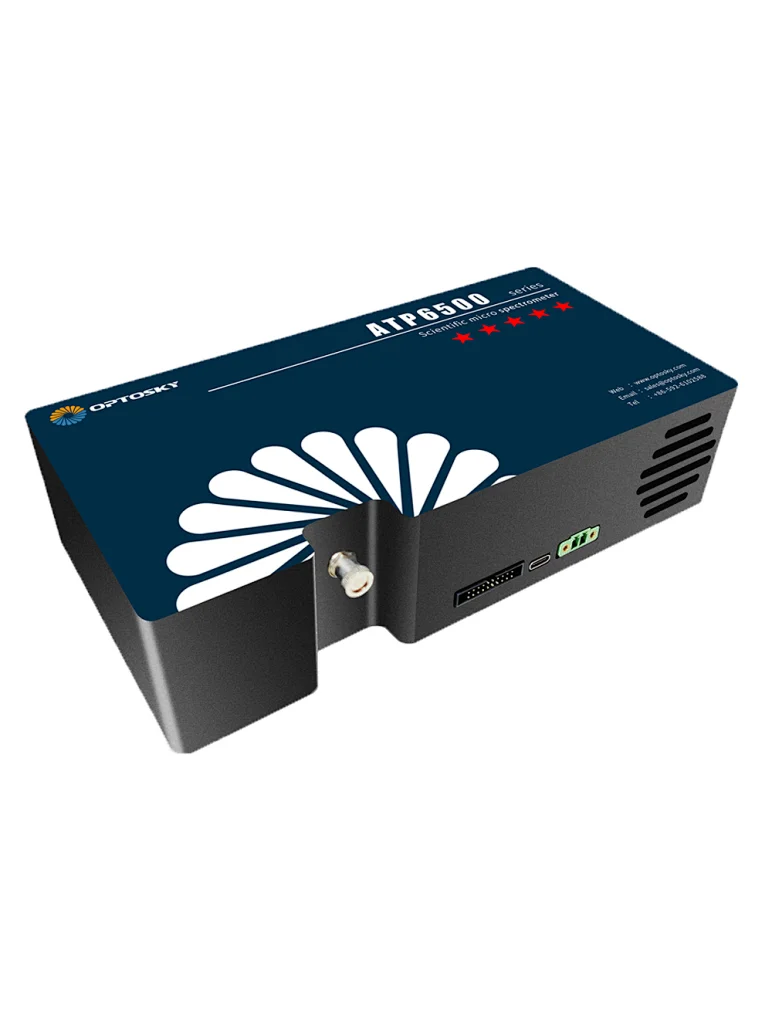

The ATP6500 is an ultra-high-performance, cooled, miniature fiber optic spectrometer developed by Optosky, reigning supreme in performance. It utilizes a 1024 x 64 pixel cooled back-thinned linear CCD. This CCD offers the largest dynamic range and employs semiconductor cooling technology to reduce the dark current during operation. The CCD can operate in a set constant temperature environment (as low as -15°C), significantly reducing sensor noise and achieving an excellent signal-to-noise ratio (approximately twice that of comparable competitors). This also enhances the measurement reliability of the ATP6500, ensuring measurement results remain unaffected by ambient temperature changes.

Simultaneously, Optosky has specially customized an ultra-low-noise CCD signal processing circuit for the ATP6500, with quantization noise less than 5 counts, representing the best level in the industry. The ATP6500 can accept light input via SMA905 fiber optic cable or free-space light and outputs the measured spectral data via USB 2.0 or UART port. The ATP6500 only requires a 5V DC power supply, making it very easy to integrate and use.

Features

Standard Cooled CCD, Cooling Temperature -15°C
Deep Cooled CCD, Cooling Temperature -70°C
Detector: Back-thinned CCD (can be cooled to a minimum of -70 °C)
Detector Pixels: 1024 x 64
Ultra-low-noise CCD signal processing circuit
Quantum Efficiency: >90%
Ultra-high Signal-to-Noise Ratio & Dynamic Range
Spectral Range: 190-1100nm (widest 700nm)
Spectral Resolution: 0.05-3 nm (depends on spectral range, slit width)
Optical Structure: Crossed Czerny-Turner (C-T)
Integration Time: 1ms-65s
Power Supply: DC 5V±10% @ <2.3A
18 bit, 570KHz A/D Converter
Light Input Interface: SMA905 or Free Space
Data Output Interface: USB2.0 (High Speed) or UART
20-pin Dual Row Programmable Expansion Interface

Application

Biological Fluorescence Detection
Raman Spectrometer
Micro-volume, Rapid Spectrophotometer
Transmittance Detection

	Parameter	ATP6500		ATP6500DC
Detector	Type	Area Array Back-thinned CCD (Cooled to -15°C)		Research-grade External CCD Camera (Deep Cooled -70°C)
	Detection Spectral Range	190-1100 nm		190-1100nm
	Pixels	1024×64		2048×264
	Pixel Size	24μm×24μm		15μm×15μm
	Full Scale Range	~600 ke-		>90 ke-
	Full Scale Range	8 e-		<0.1 e-/(s·p)
Optical Parameters	Wavelength Range	190-1100 nm（Max. 700nm）
	Best Optical Resolution	0.1-3 nm (Depends on slit, spectral range)		0.05-3nm(Depends on slit, spectral range)
	SNR	>1000: 1
	Dynamic Range	20000: 1
Optical Path Parameters	Optical Design	F/4 Crossed Asymmetric Czerny-Turner (C-T)
	Entrance Slit Width	5/10/25/50/100/150/200 μm optional, other sizes customizable
	Entrance Slit Width	SMA905 Fiber Interface, Free Space
Electrical Parameters	Integration Time	6 ms - 65 s	1 ms - 65 s
	Data Output Interface	USB 2.0
	ADC Resolution	18 bit(Output 16bit)
	Power Supply	DC 5V±10%		DC12V±10%
	Operating Current	<2.3A
	Operating Temperature	-20°C to +50°C
	Operating Humidity	< 90%RH
Physical Parameters	Dimensions	217×110×52 mm3		222×110×96 mm3
	Weight	0.8kg		2.65kg
