micro spectrometer

Mini NIR Spectrometer

ATP8600
Delivery
FOB
minimum order
1 unit
Country of Origin
China
Quantity
Contact Now
Description:

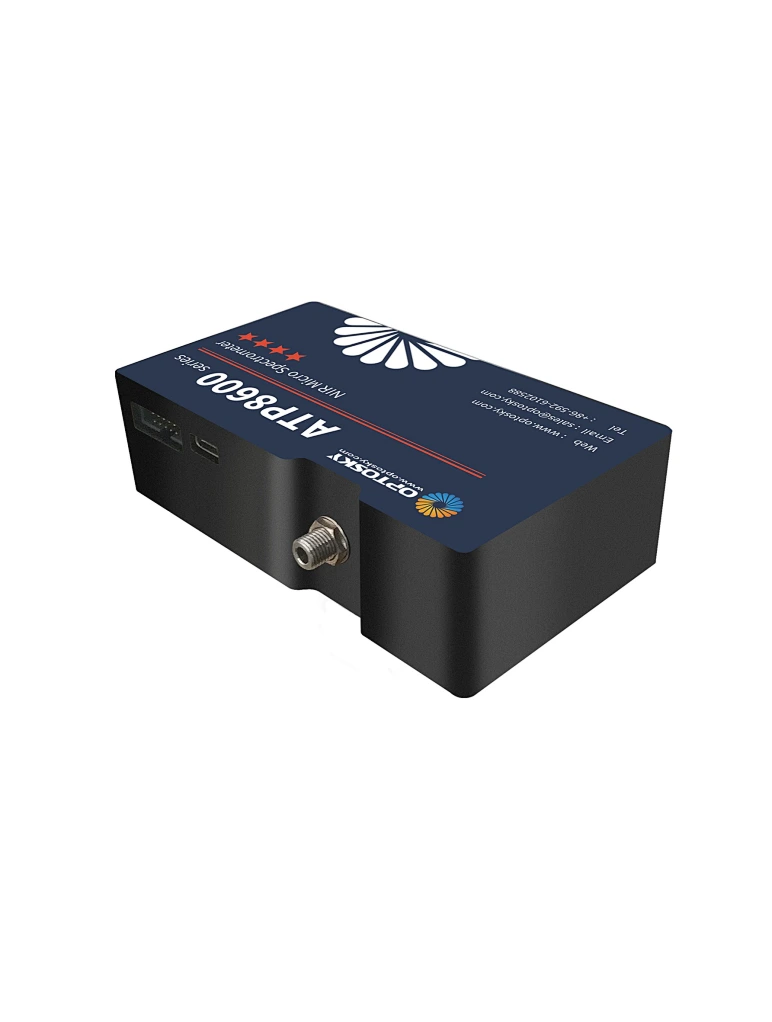

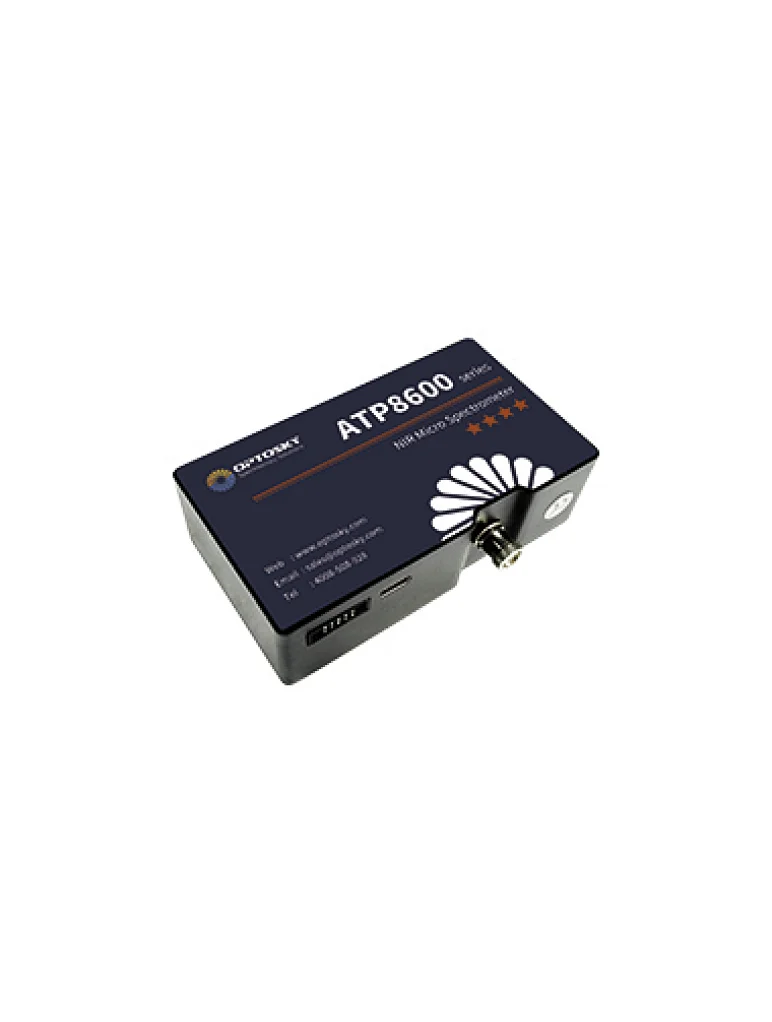

Micro spectrometer with small structure size. It uses a 256-pixel InGaAs linear array detector and integrates a reliable CCD installation and heat dissipation method to improve the measurement reliability of the ATP8600. At the same time, Optosky ATP8600 has specially customized an ultra-low noise CCD signal related double sampling processing circuit, which is the best in the industry.

ATP8600 can receive SMA905, FC/PC optical fiber input light or free space light, and output the measured spectral data through Type-C or UART port.

ATP8600 only requires a 5V DC power supply and can be directly powered by USB, which is very convenient for integration and use.

Model
Description
ATP8600
900-1700nm, SMA905 interface
ATP8600FBG
Signal demodulation for fiber optic sensors (C/L/C+L-wave segment), FC/PC interface
ATP8600-17TC
900-1700nm, detector cooling to - 15℃ (Requires auxiliary cooling)
ATP8600-25TC
900-2500nm, detector cooling to - 15℃ (Requires auxiliary cooling)

Features:
  • Maximum operating spectral range: 900-2500nm ((Maximum width: 1400 nm);)
  • Ultra-low noise correlated double sampling circuit.
  • Spectral resolution: related to the width of the incident slit.
  • Integration time: 1ms- 65s (depends on detector).
  • CCD pixels: 256, 512 pixels.
  • Power supply: DC 5V.
  • ADC bit depth: 16 bits.
  • ADC sampling rate: 1MHz.
  • Optical input interface: SM905, FC/PC optical fiber interface or auto input from space.
  • Data output interface: Type-C and UART.
  • 10-pin expansion interface.
Application：

  • Food sorting
  • Waste water detection;
  • Detection of moisture, protein, fat and fiber in crops;
  • Paper sorting;
  • Online monitoring of Chinese medicine production;
  • Solar panel inspection;
  • FBGA fiber modem;
  • Laser wavelength monitoring
