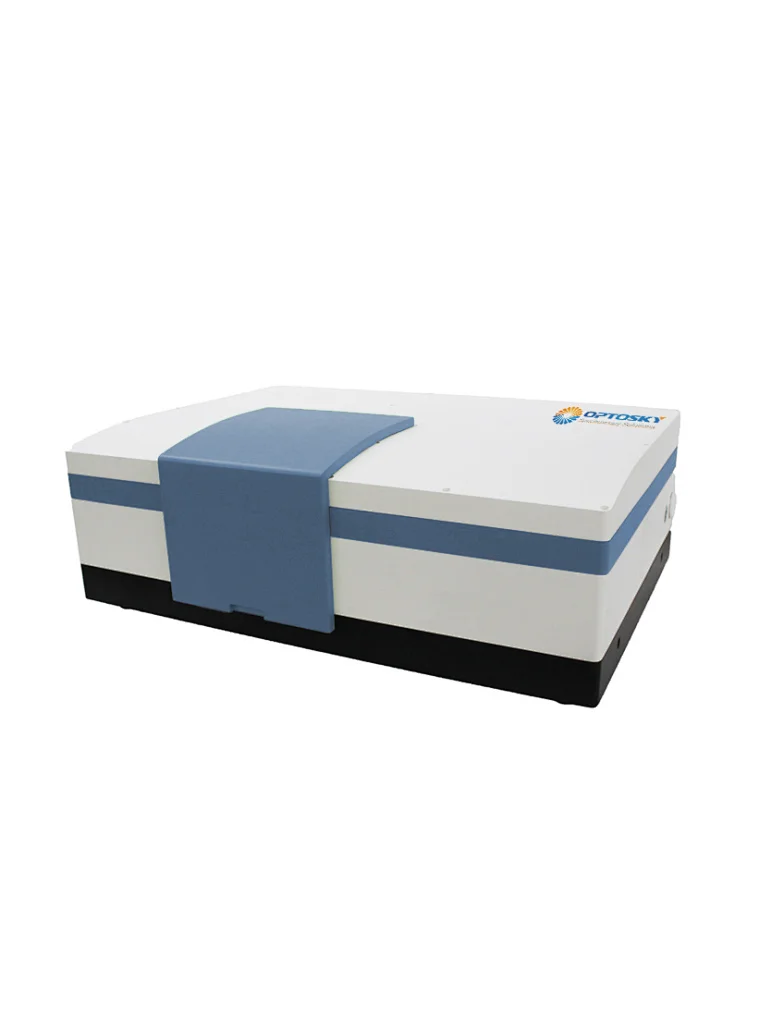

Research FTIR Spectrometer
ATP8900Pro
ATP8900Pro Research FTIR Spectrometer equipped with multiple beam inlets and detector inlets and configurable with liquid nitrogen and electrically cooled MCT.
Delivery
EXWORK
minimum order
1
Country of Origin
Made in China
Quantity
Description
ATP8900PRO is self-designed scientific-grade benchtop FT-IR spectrometer with upgraded resolution up to 0.25cm- 1 to fit to wide scientific research applications. Moreover, therange extendable to 12800-350cm- 1 and optional light sourceand auto switch detectors, meanwhile it’s compatible withmany built-in attachments or external type, say the sample compartment can compatible with IR transmission module, Attenuated Total Reflectance, diffuse reflectance up or front, and specular reflectance, gas cell, TGA module etc.
ATP8900PRO is self-designed scientific-grade benchtop FT-IR spectrometer with upgraded resolution up to 0.25cm- 1 to fit to wide scientific research applications. Moreover, therange extendable to 12800-350cm- 1 and optional light sourceand auto switch detectors, meanwhile it’s compatible withmany built-in attachments or external type, say the sample compartment can compatible with IR transmission module, Attenuated Total Reflectance, diffuse reflectance up or front, and specular reflectance, gas cell, TGA module etc.
ATP8900pro is widely used for solid, liquid and gas transmission characteristics, direct measure with solidor liquid ATR diamond, ZnSe, Ge crystal no necessary press, and direct connect to gas cell fit to both high and low concentration gases, customize measure is available for one-stop solution provider.
It is widely applied to Pharma and life science, microorganismidentification, polymerand chemical products, surfaceanalysis, material science, semi- conductor silicon industry, and soil analysis.ATP8900PRO is self-designed scientific-grade benchtop FT-IR spectrometer with upgraded resolution up to 0.25cm- 1 to fit to wide scientific research applications. Moreover, therange extendable to 12800-350cm- 1 and optional light sourceand auto switch detectors, meanwhile it’s compatible withmany built-in attachments or external type, say the sample compartment can compatible with IR transmission module, Attenuated Total Reflectance, diffuse reflectance up or front, and specular reflectance, gas cell, TGA module etc. ATP8900pro is widely used for solid, liquid and gas transmission characteristics, direct measure with solidor liquid ATR diamond, ZnSe, Ge crystal no necessary press, and direct connect to gas cell fit to both high and low concentration gases, customize measure is available for one-stop solution provider. It is widely applied to Pharma and life science, microorganismidentification, polymerand chemical products, surfaceanalysis, material science, semi- conductor silicon industry, and soil analysis.
Model | Description |
ATP8900Pro-S | Resolution<0.4cm- 1 |
ATP8900Pro-H | Resolution<0.25cm- 1 |
| ATP8900Pro-2-C | Two sample compartments and two detectors, one is DLATGS and another detector is MCT, Spectral Range8000-350cm-1; Resoluton:Better than 0.2cm-1 |
Features
- Wide Spectral Range: 12800-350cm-1
- HSpectral resolution ≤ 0.2cm-1
- Automated selectable MIR/NIR light sources and detectors, measurement range from MIR to NIR (12800-350cm-1)(optional)
- Detector LN MCT or TE cooled MCT
- Higher sensitivity and higher energy throughput for the experiment
- Flexible optics path design inlet/oulet beam port
Application
- Explosion and fire
- Eakage of hazardous chemicals medical and health pollution
- Criminal investigation
- Customs random inspection
- Laboratory unknown substance detection, etc. Detection of emissivity of building materials evaluation for optical material such as infrared windows and mirrors
- Semi-conductor Silicon Industry. Different non-metal film measure
