Online Multi-Channel Spectroradiometer
ATP9100-4CH
EXW
1 unit
Made in China
The range from 300~1100nm with built-in 4-channel detector. It used o collect reflected light on four directions of solar-skylight, 0° polarized, 30°, 45°.
Quantity
Description

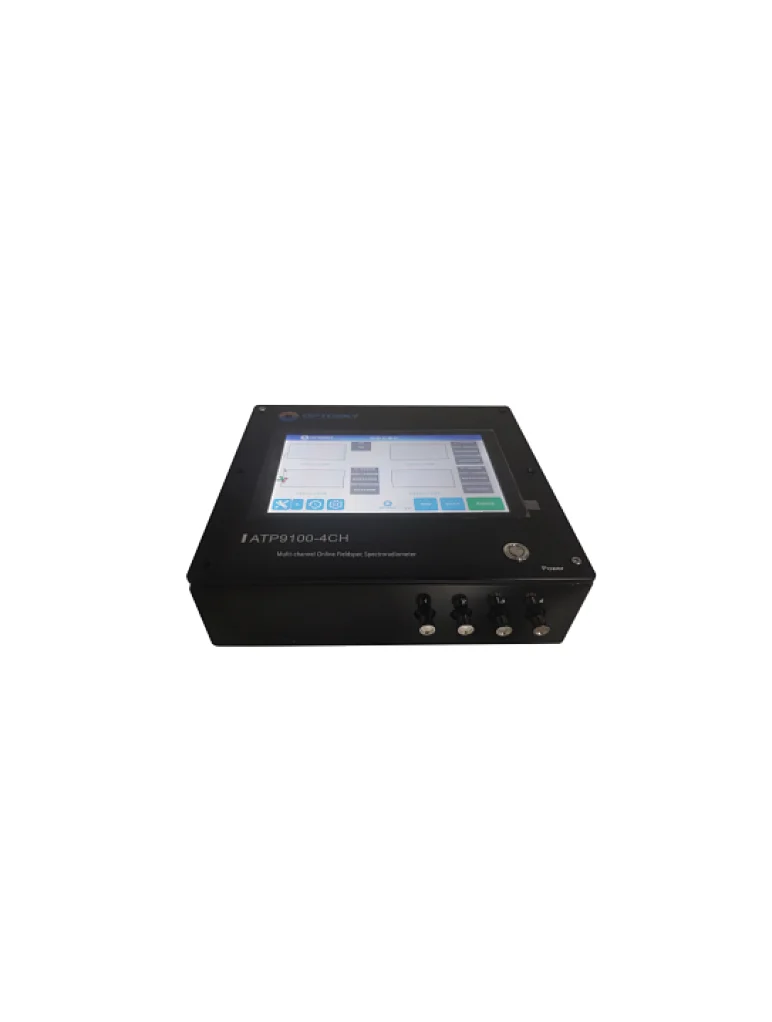

ATP9100-4CH Multi-channel online fieldspec spectroradiometer (fieldspec) is self-developed by Optosky. The range from 300~1100nm,built-in 4-channel detector. It used o collect reflected light on four directions of solar-skylight, 0° polarized, 30°, 45°, and it's applied to fields of remote sensing measurement,crops monitor, research of forest and oceanography etc.
ATP9100-4CH can output spectral signals by 4G module or RS485 communication interface,calculate and output Normalized Difference Vegetation Index(NDVI), Red-Edge Normalized Difference Vegetation Index(RNDVI), Plant Senescence Reflectance Index (PSRI), Photochemical Reflectance Index(PRT), Structure Insensitive Pigment Index(SIPI),Carotenoid Reflectance Index(CRI), Anthocyanin Reflectance Index(ARI) .
It employs high performance, fast and accurate measurement, easy to operate and take to field etc. It's configured powerful software package, and applied to measurement of reflectance, radiometry, photometry and colorimetry.
Features
Application
ATP9100-4CH Multi-channel online fieldspec spectroradiometer (fieldspec) is self-developed by Optosky. The range from 300~1100nm,built-in 4-channel detector. It used o collect reflected light on four directions of solar-skylight, 0° polarized, 30°, 45°, and it's applied to fields of remote sensing measurement,crops monitor, research of forest and oceanography etc.
ATP9100-4CH can output spectral signals by 4G module or RS485 communication interface,calculate and output Normalized Difference Vegetation Index(NDVI), Red-Edge Normalized Difference Vegetation Index(RNDVI), Plant Senescence Reflectance Index (PSRI), Photochemical Reflectance Index(PRT), Structure Insensitive Pigment Index(SIPI),Carotenoid Reflectance Index(CRI), Anthocyanin Reflectance Index(ARI) .
It employs high performance, fast and accurate measurement, easy to operate and take to field etc. It's configured powerful software package, and applied to measurement of reflectance, radiometry, photometry and colorimetry.
Model | Feature |
ATP9100-4CH | Multi-channel online fieldspec spectroradiometer |
Features
Four channels of spectrum can be monitored,such as:solar-skylight,0° polarized,30°,45° reflected light
Auto-Switch on four channels
Fast scan a cycle of four channels within 5s
Fast scan a cycle of four channels within 5s
Built-in Android system for field uses
Light weight & flexible fiber probe design
High accuracy, built-in with the second order sorting filter
Dynamic dark current correction, reduce noise
Water, Dust proof,damage resistant
4G/5G WiFi for auto-fast transfer data
HD camera for taking spectrum area
Directly calculate various vegetation indexes
Application
Geographical Research, Mining exploration
Remote Sensing Measure, Satellite remote sensing data calibration
Agriculture, Crops Monitor
Forestry & oceanography Research
Meteorology, flux station
