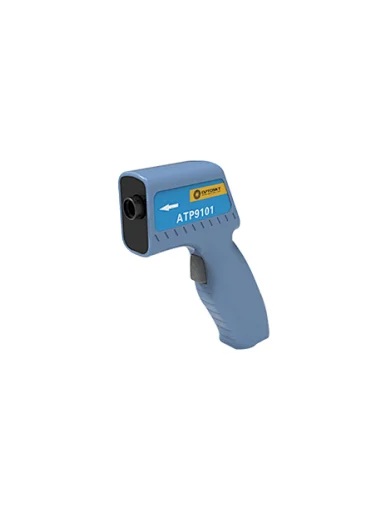

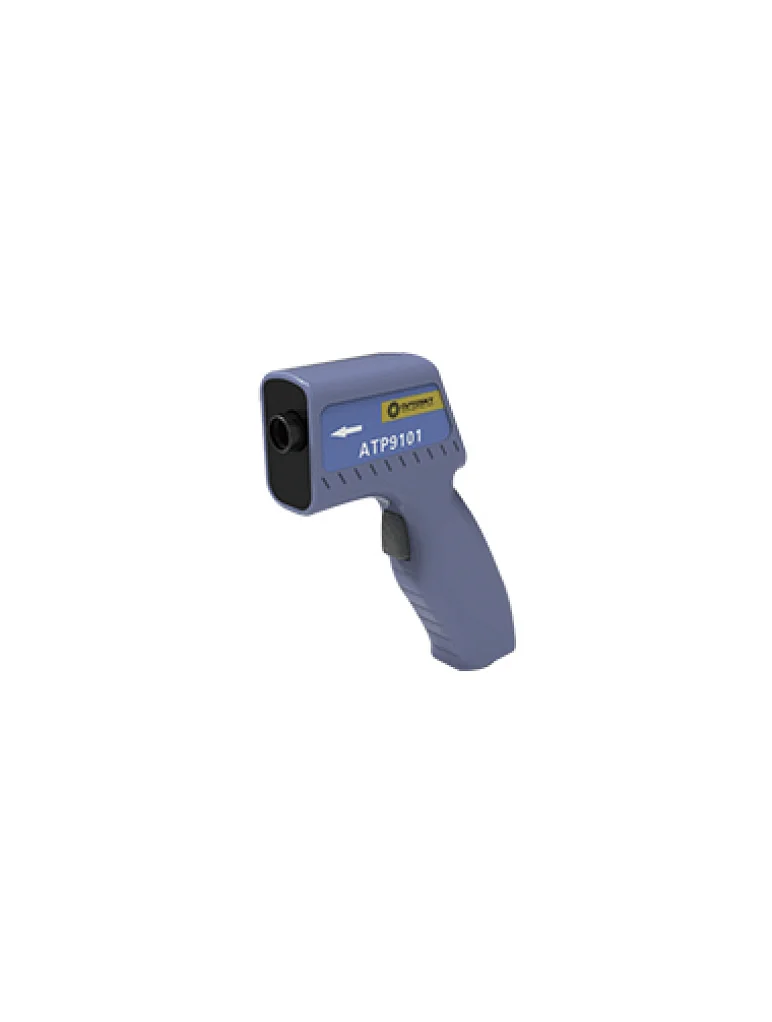

Miniature Field Spectroradiometer
ATP9101
Miniature FieldSpec is true field spectroradiometer reader in palm, used by researcher to perform solar spectral reflectance, radiance, and irrance measure in VIS, NIR, IR range.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Description
The ATP9101 is a miniature ground object spectrometer featuring high reliability, ultra-high speed, low cost, and high cost-effectiveness, making it adaptable to various environmental applications such as online testing.
It enables fast, precise, non-destructive, and contactless spectral measurements, serving as a truly portable ground object spectroradiometer. With a built-in battery for easy portability, it connects effortlessly to mobile phones or computers via Bluetooth, minimizing the time required for field data collection while ensuring optimal spectral measurement quality. Whether measuring from different orientations or in diverse environments, the flexible and durable ATP9101 delivers laboratory-grade results in remote sensing and analytical applications.
Features
- Ultra-lightweight and highly portable
- USB and Bluetooth interfaces for easy connection to computers and mobile devices
- Number of bands: 512
- Spectral range: 400–900 nm or 200–1000 nm
- Spectral resolution: 4–7 nm @811 nm
- Wavelength accuracy: ±0.5 nm
- Wavelength repeatability: ±0.3 nm @±10°C temperature variation
- Signal-to-noise ratio: >450:1
- Weight:<325 g (entire unit)
- Power supply: Built-in lithium battery, standby time >6 hours
- Waterproof rating: IP65
- Field-of-view lenses: Optional 25°/15°/8°/1°
- Built-in laser indicator for targeting the probe direction
- Built-in GPS, angle, altitude sensors, and temperature and humidity sensors
Application
Remote sensing measurement, crop monitoring, forest research, river/lake/ocean studies, aquaculture, and scientific research and education.
