Fieldspec Spectroradiometer 300nm-11um
ATP9110

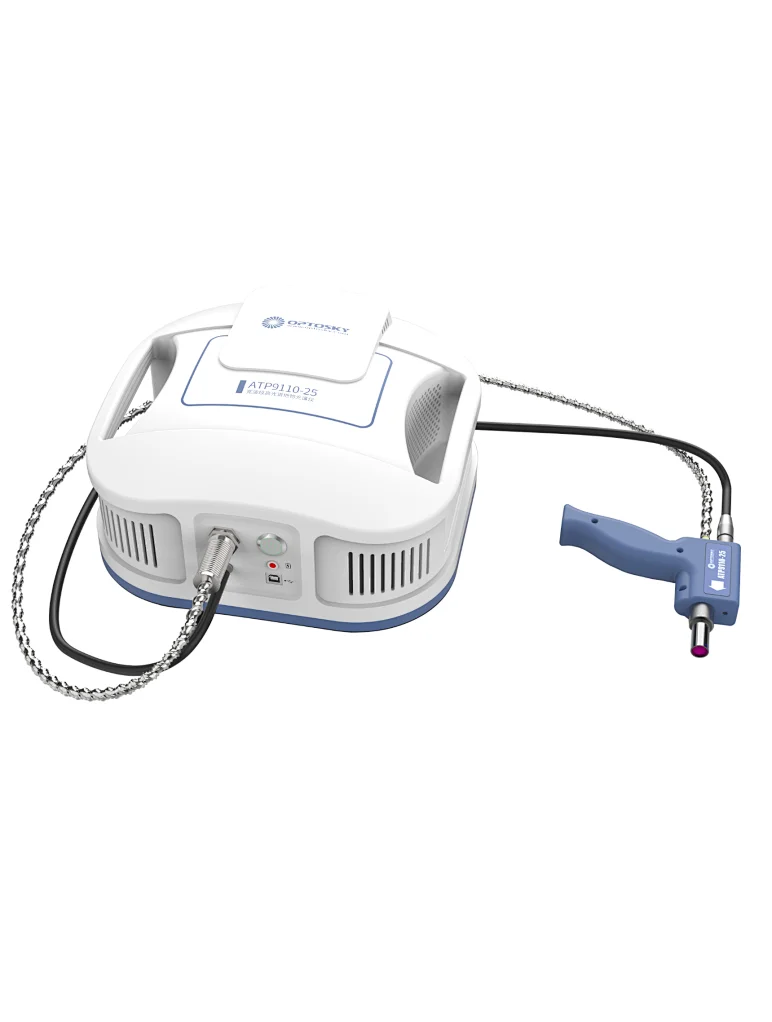

Optosky ATP9110 or ATP9110H is self-developed portable field spectroradiometer at a lower cost, customers tend to purchase at lower price model with the similar performance competting ASD fieldspec 4, so Optosky pricing at 30% favorable than ASD fieldspec 4, which is a perfect VNIR alternative to the full range of fieldspec 4 product lines.
Delivery
FOB
minimum order
1 unit
Country of Origin
Made in China
Quantity
Description
ATP9110 spectrometer (field spectroradiometer) is the latest product of Optosky company. Monitoring, forest research, oceanographic research and other fields of application.
High cost performance, fast and accurate measurement, simple operation, and easy to carry. It is equipped with a powerful software package. In addition to reflectance measurement, it can also be used for radiometry, photometry and colorimetric measurements.
Model | Description |
ATP9110-17 | 300~1700nm |
ATP9110-25 | Standardresolution, 300~2500nm |
ATP9110-25H | High resolution, 300~2500nm |
ATP9110-50 | 300~5000nm ultra-broadband fieldspec |
ATP9110-110 | 300nm~11μm ultra-broadband fieldspec |
ATP9110TP | With 7 inch touch screen |
ATP9110Plus | With light intensity compensation |
ATP9110Pro | With spectral compensation |
Features
- Maximum band range: 300 nm~11μm
- High sensitivity, the highest quantum efficiency of the detector is 60%, and the near-infrared sensitivity is 40% higher than that of traditional PDA detectors
- The measurement speed is fast, time for a single sampling less than 10 seconds
- Optical fiber probe measurement, light weight, flexible use
- Built-in anti-secondary diffraction coating and filter, high accuracy
- Dynamic dark current correction to reduce the influence of thermal noise
- Display the inclination angle of the probe, and the laser indicates the detection position, convenient for adjustment
- Portable, special carrying case, easy to carry
- PC software control mode
Application
- Geological research, prospecting
- Remote sensing measurement
- Crop monitoring
- Forest research, oceanographic research
