Fieldspec NIR Spectroradiometer

Fieldspec NIR Spectroradiometer

Model NO. ATP9110TP

Delivery FOB

minimum order 1 unit

Country of Origin Made in China

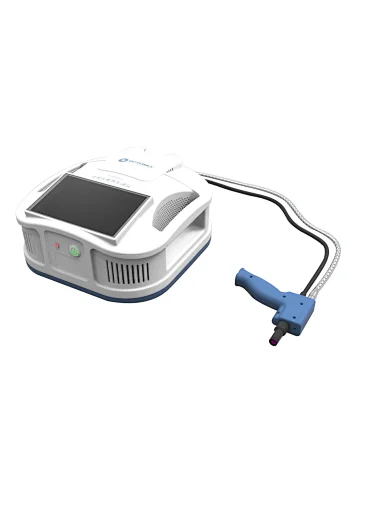

ATP9110TP series broadband field spectroradiometer is a new portable hyperspectral fieldSpec from Optosky , It build-in 7 "capacitive touch screen, Android operating system, with memory, can store 100,000 spectrum.

Quantity

Contact Now add to cart

Description

  ATP9110TP field spectroradiometer series broadband field spectroradiometer is a new portable hyperspectral fieldSpec from Optosky. Wavelength range of 300-11000 nm, suitable for geological research, mineral exploration, remote sensing, crop monitoring, forest research, oceanography and other fields of application.
  ATP9110TP field spectroradiometer field spectroradiometer employs high performance, fast and accurate measurement, easy to operate and held etc.
 ATP9110TP field spectroradiometer is configured powerful software package, and applied to measurement of reflectance, radiometry, photometry and colorimetry.

Features:

    •  Broad spectral range: 300-11000nm


    •  High sensitivity, detector quantum efficiency reach up to 60%, NIR sensitivity is 40% higher than traditional PDA detector


    •  Fast measure speed, one sampling time< 10ms


    •  Light weight and flexible optic fiber probe


    •  Built-in secondary diffraction coating and filter, high accuracy


    •  Dynamic dark current correction, reduce noise


    •  Display probe inclined angles, laser indicator indicates probe direction, easy to adjust


    •  Portable, special carrying case, easy to carry


    •  PC software control mode


    •  Radiance & Irradiance calibration NIST certificated and traceable

Applications

    •  Geological research, prospecting


    •  Remote sensing measurement


    •  Crop monitoring


    •  Forest research, oceanographic research


Technical Specification：

Detector
Type	Linear CMOS detector / InGaAs detector
Detector	300-1100nm： CM0S 2048 pixels 1100-1700nm： InGaAs TE 2nd class cooling 1100-2500nm： InGaAs TE 2nd class cooling 2.5-11μm: Pyroelectric linear array sensor（ZnSe）
Optical Config
Models	ATP9110TP-25	ATP9110TP-25H	ATP9110TP-17	ATP9110TP-50	ATP9110TP-110
Spectral Range	300-2500 nm		300-1700 nm	300-5000nm	300-11,000nm
Spectral Resolution	0.8-1.4nm@756nm 8-12nm@1400&2100nm	0.8-1.4nm@756nm 3-5nm@1400nm 5-8nm@2100 nm	0.8-1.4nm@756nm 3-5nm@1400nm	0.8-1.4nm @ 756nm 7-12nm @ 1400&2100nm 30nm @ 2.5-5um 50nm @ 5.5-11um ( Only use in ATP9110-110)
Wavelength Repeatability	± 0.1nm@ VIS ± 0.5nm @ SWIR ±3nm @ MWIR
Wavelength Accuracy	± 0.5nm @ VIS; ±1.1nm @SWIR; ± 5nm @ MWIR
Input	1.5m fiber beam (25°FOV），optional front camera change FOV, optional fiber lengths.
FOV	Small FOV , optional 1º/8º/15º/25º
Indicate laser wavelength	650 nm
Indicate laser power	5 mW
Max radiation	VNIR 2 times sun light/SWIR 10 times sun light
SNR	300-1000nm: >800, 1000-2500nm: >16000
Spectral sampling interval	Visible light：0.4nm， SWIR：2.9 nm	Visible light：0.4nm， SWIR：1.4 nm	Visible light：0.4nm， SWIR：1.4 nm	Visible light：0.4nm， SWIR：1.0 nm MWIR: 25nm
Hardware spectral average	Max. up to 100, 000 times



Electrical Parameter	ATP9110			ATP9110TP
Integration time	1 – 10 s/ auto optimized integration time
OS	-			Android 6.0
Touch Panel	-			7 -inch , capacitive touch screen
Interface	USB 2.0、Bluetooth、WIFI available			USB 2.0、Bluetooth、WIFI available
Location	Built-in GPS positioning
Angle data	MC3430 optical gyroscope angles range  0°-180°
Power Supply	Built-in Li battery 10000maH, optional external 12V power supply/ car loaded power supply
Charging port	12V/3A Charging (also power supply)
Battery span	>3H outdoor, Battery replaceable			>2.7H outdoor, Battery replaceable
Maximum working current	ATP9110-17: 2.5 A			ATP9110TP-17: 3.5 A
	ATP9110-25: 3.5 A			ATP9110TP-25: 4.5 A
	ATP9110-25H: 5.0 A			ATP9110TP-25H: 6.0 A
	ATP9110-50: 4.0 A			ATP9110TP-50: 5.0 A
	ATP9110-110: 5.0 A			ATP9110TP-110: 6.0 A
Storage Temp.	-20°C ～ +65°C
Operating Temp.	-20 ～ 50 oC			-10 ～ 50 oC
Working humidity	< 90%RH
Physical Parameter
IP grade	IP54
Size	290×260×141mm	410×260×280mm	290×260×141mm	290x260x141mm	410x260x280mm
Weight	4.5Kg	6.5Kg	4.5Kg	5.2Kg	5.8Kg

Standard Accessories：

Standard Accessories
1	USB wires
2	Outdoor fiber
3	Exclusive PC software
4	Charging adaptor 12V/5A
5	Cosine angle lens
6	External battery pack 14.4V
7	External battery pack charger
8	Field Angle lens 25°
9	Standard white plate 10 x 10cm; 95% reflectivity
10	Suitcase
Optional Accessories
1	FOV angles， optional 1º/5º/8º/10º/15°/25°
2	Leave clip, vegetation reflectance measure tool
3	Indoor lighting
4	Halogen lamp accessories/ATG1021  INT:12V
5	Measure test stand + integration sphere measure transmittance tool
6	Standard white plate 10 x 10cm; 99% reflectivity (Customized)
7	Standard white plate 10 x 10cm; 60% reflectivity (Customized)

Datasheet Download:

ATP9110_Broadband Field Spectrometer（300-11000nm） v1.6(1).pdf
