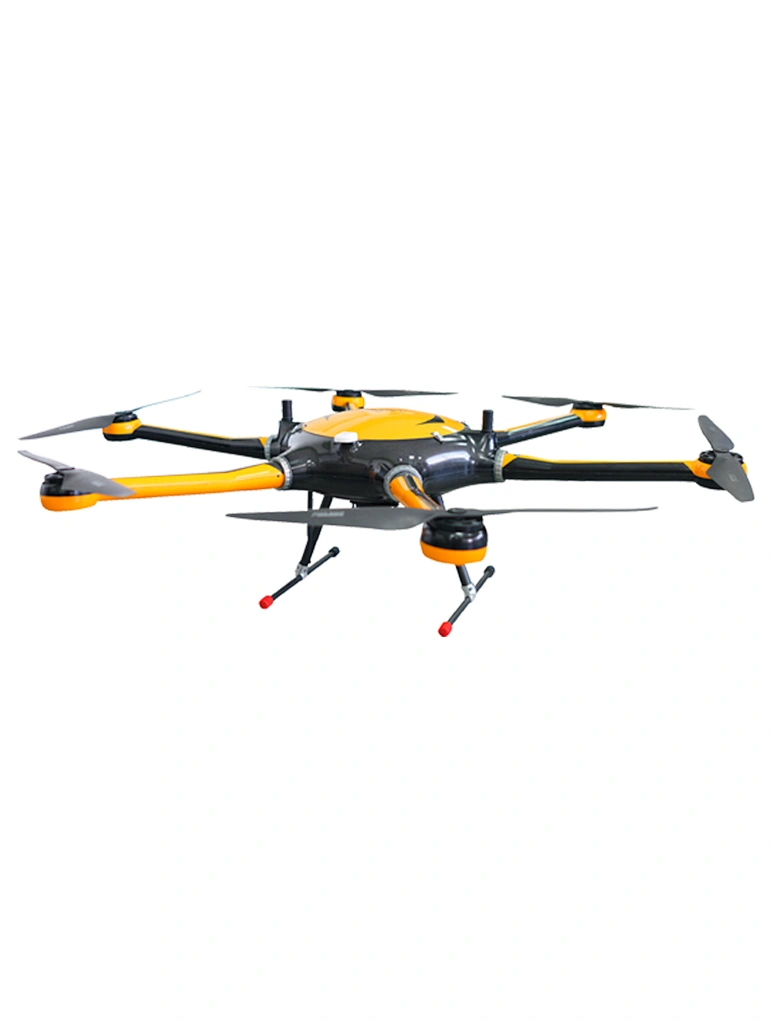

Dual-battery hexacopter drone

ATPL606
ATPL606 Hexacopter drone, stable flight, high safety, pure motor drive, low vibration, low noise, no pollution.
Delivery
EXW
Country of Origin
Made in China
Quantity
Contact Now
 Description

ATPL606 Hexacopter drone, stable flight , high safety, pure motor power, low vibration, low noise, no pollution; carbon fiber  body, good aerodynamics, high strength, light weight; carbon fiber arm, aluminum parts , fast and stable; no tools are needed, and the deployment time of the whole set of equipment is about 3 minutes; dual battery redundant design, the total battery capacity is ≥50000mAh.

ATPL 606 with a maximum flight time of 90 minutes. Maximum speed 15M/S. It comes with a digital control and remote control with a screen. The remote control can share data with the computer through WIFI; the signal transmission distance of the remote control can reach up to 15 kilometers.

ATPL 606 ,industrial standard structure, safe and convenient interface, can quickly replace different load equipment as needed; it can be adapted to lidar and dual-lens tilting head. It has been continuously improved and optimized to truly meet the needs of the project. It is a good helper for high-precision aerial surveys.

Features

  • Flight speed 0~15M/S

  • Maximum take-off weight 20Kg

  • Standard load 5Kg, maximum load 8Kg

  • The maximum flight  can reach 5000 meters

  • Navigation satellite: GPS:L1+L2(20HZ), BeiDou:B1+B2(20HZ), GLONASS:L1+L2(20HZ)5b+QSZZ

  • Appearance size 1620mm×1410mm×500mm

  • Wheelbase 1500mm

  • Support PPK and RTK modes to work at the same time

  • The highest landing accuracy can reach: level ≤ ± 0.2m, elevation ≤±0.2m

  • Built-in"black box"to record flight data

  • GPS hovering accuracy: Vertical: ± 0.5 m, Horizontal: ±1.5 m

  • Wind resistance: ≤12m/s

  • Working temperature: -20~45℃

  • Standard battery life: ≥65min (2KG); ≥50min (5KG); ≥40min (7KG)

  • Remote control transmission distance up to 15 kilometers

  • Battery: 6S 22.8V 32000mAh*2 lithium-ion battery

Application

  • Aerial photography

  • Power Line Patrol

  • Geological survey

  • Fast shipping
