Fluorescent quantum integrating sphere

Fluorescent quantum integrating sphere
ATST150F
EXW
1 set
Made in China
15Day
Optosky's general fluorescent quantum efficiency integrating sphere has three openings, namely, the light incidence port, the sample port and the light exit port.
Quantity



Optosky’s integrating sphere is a cavity sphere, also known as the photometric sphere,Ulbricht sphere, etc.Its interior covered white highly diffuse Reflectance material. The light entering integrating sphere is diffusely reflected to form a uniform illumination, eliminate the influence of uneven beam.
It has a wide range of applicability, accessories for spectrometer, optical fiber, light source and various optical measuring equipment.Our sphere afford NIST traceable characterization of all types of light .The diffuse reflecting surface of the inner wall of it is made of PTFE, BaSO4,MGO2.The dominant wavelength range is between 200-2500nm, and different sizes, ports and coatings can be customized.


Description:

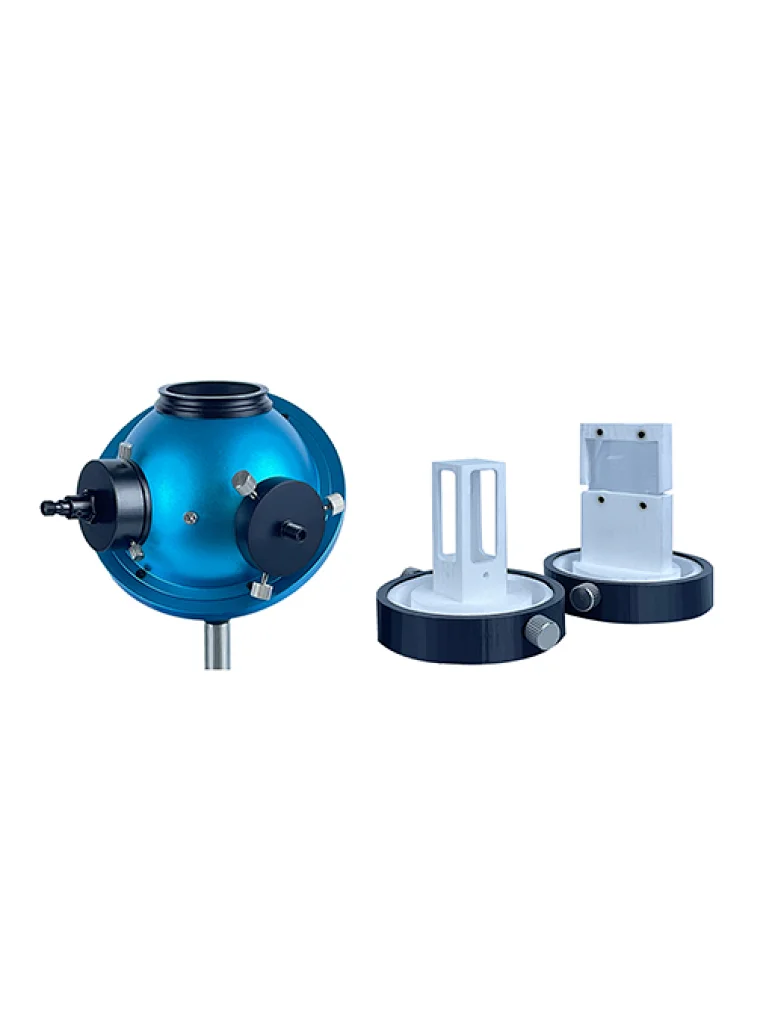

Optosky's general fluorescent quantum efficiency integrating sphere has three openings, namely, the light incidence port, the sample port and the light exit port. The light incident port is provided with a collimating mirror to collimate the excitation light source to the sample, and the light exit port is provided with a built-in baffle to prevent the incident light from exiting directly. The commonly used sample port is equipped with sample colorimetric blood stent, which can be used for the measurement of liquid, powder, film and other samples.

Features:
Different openings and sizes can be customized.
Equipped with high-quality sample support.
High quality diffuse reflection material.
Different schemes can be customized.

Application:

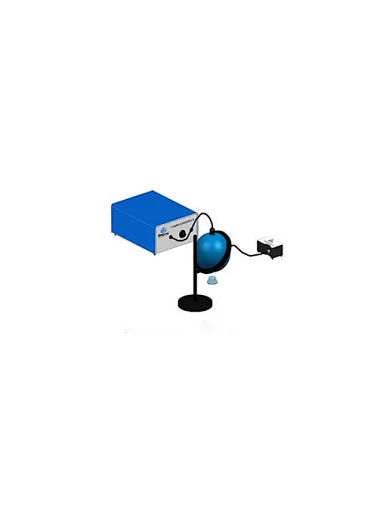

Fluorescence quantum efficiency measurement system.
