Water quality integrating sphere

Water quality integrating sphere
ATST150WQ
EXW
1 set
Made in China
15Day
Optosky's Water quality integrating ball can be paired with other optical accessories to measure the absorption of water bodies, such as river water, seawater, groundwater, etc.
Quantity


Optosky’s integrating sphere is a cavity sphere, also known as the photometric sphere,Ulbricht sphere, etc.Its interior covered white highly diffuse Reflectance material. The light entering integrating sphere is diffusely reflected to form a uniform illumination, eliminate the influence of uneven beam.
It has a wide range of applicability, accessories for spectrometer, optical fiber, light source and various optical measuring equipment.Our sphere afford NIST traceable characterization of all types of light .The diffuse reflecting surface of the inner wall of it is made of PTFE, BaSO4,MGO2.The dominant wavelength range is between 200-2500nm, and different sizes, ports and coatings can be customized.


Description:

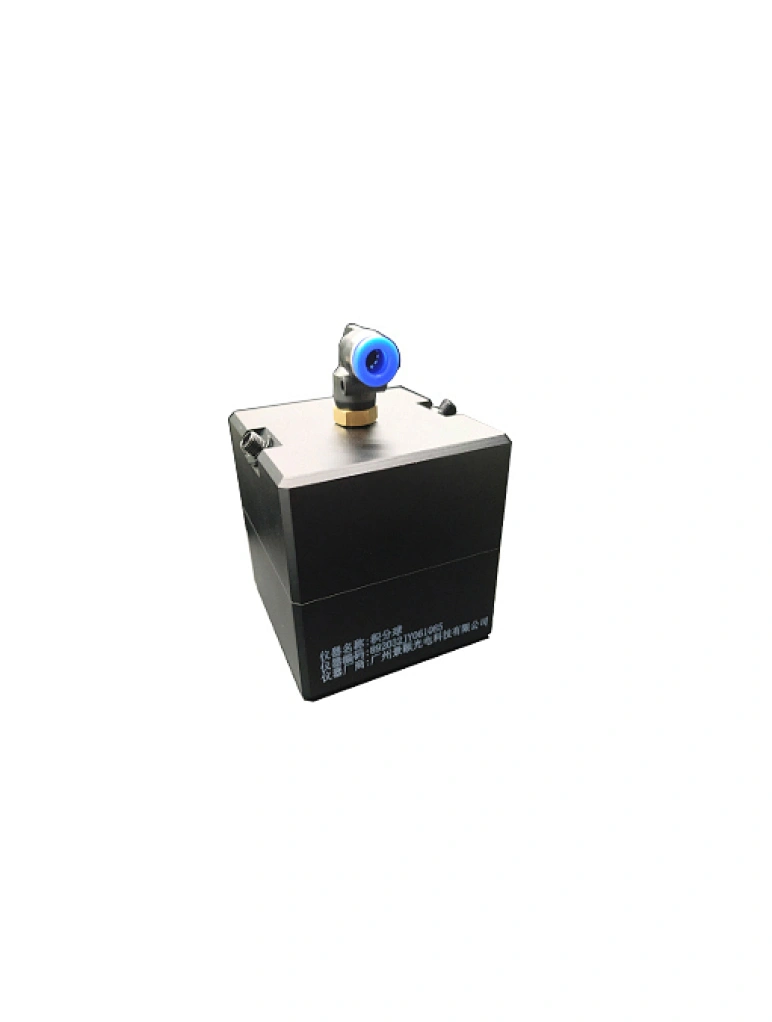

Optosky's Water quality integrating ball can be paired with other optical accessories to measure the absorption of water bodies, such as river water, seawater, groundwater, etc. One end of the integrating ball is connected with the light source, and the other end is connected with the detector. The original water sample is placed in the inner cavity. When the cavity is filled with water sample, the incident light is absorbed by the water sample in the cavity and transmitted to the outgoing detection port, which can avoid the light scattering interference of particles in the water body. Integrating sphere is made of high quality PTFE material, the reflectivity is up to 99%, the light source through the inner cavity countless times integration into uniform light output, the light field inside the sphere cavity uniform distribution, and through a very long optical path (up to several meters) to improve the sensitivity.

Features:
Large optical path, can measure low absorption water.
High quality diffuse reflection material, high reflectivity.
Integrating ball size can be customized according to specific needs.
Can be used for field measurement, not limited to indoor measurement.
Integrating ball material stability is high, waterproof and heat resistant.
High chemical stability, not easy to yellow and fall off.
Circulation design, easy measurement.
Avoid the light scattering interference of impurities in the water.

Application:
