ATX2100
Quantity
Description:
Optosky ATX2100 is newly designed high-performance absorbance & fluorescence measuring system. It consists of high performance deuterium halogen lamp, high-sensitivity, TE-cooled optic fiber spectrometer, absorbance & fluorescence multi-functional measuring sample cell, optic fiber, collimating system etc. Ultra-high sensitivity, TE-cooled optic fiber spectrometer employs optimized designs in photology, ultra-low noise electronics, which greatly reduces sensor noise to obtain optimized SNR(about 3 times higher than other competitors). Measuring reliability has been greatly improved, so measuring results do not change with ambient temperature.
ATX2000 simple configuration can be used to research and measure various spectrum such as reflectance, transmission, absorption, fluorescence etc.
ATX2100 employs deuterium halogen lamp lifetime>5000hours (wavelength range: 190-2500nm),usually it' not required to replace light source frequently.

Feature:
  • Multi-function measurement such as absorbance & fluorescence
  • measurement
  • Wavelength range:190-2500nm
  • Absorbance reach up to 3.8
  • Replaceable fluorescence filter
  • Ultra-low CCD signal process PCB
  • Spectral resolution: 1.6 nm
  • Optical path: crossed C-T
  • Measuring time: 2ms-130s (software setup)
  • Spectrometer controls light source, synchronized measurement
  • Power supply: DC 5V±10% @ <2.3A
  • Light input connector: SMA905 or free space
  • Output data interface: USB2.0 (High speed) or UART
  • 20-pins dual-row programmable extension connector

Application:
  • Lab in university,institute etc.
  • Multi-parameters online water quality analyzer
  • Small volume, fast spectrophotometer
  • Spectral analyzer, spectroradiometer, spectrophotometer analyzer
  • Fluorescence spectrometer
  • Biochemical analyzer
  • Transmission, absorbance measurement
  • Reflectance measurement

Structure:

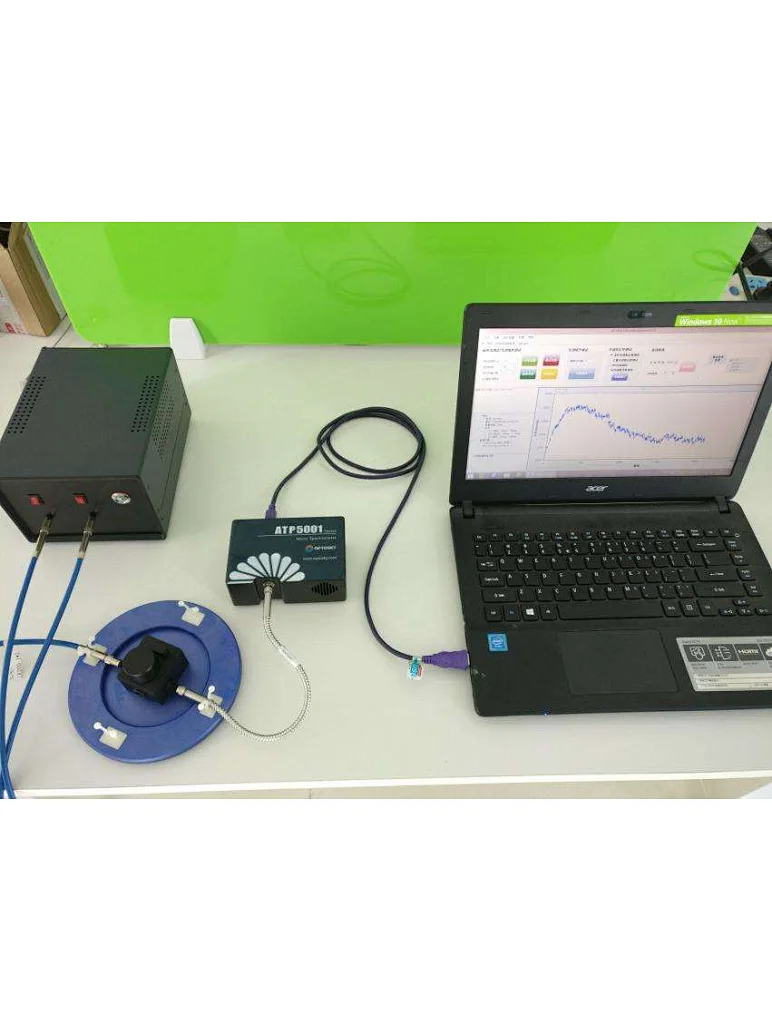

ATX2100 spectral measuring system consists of spectrometer, light source, optic fiber, sample bracket, golden sample and software etc.
Each categories include:
1. High sensitivity,TE-cooled optic fiber spectrometer
2. High stability deuterium halogen lamp, broad spectral UV,VIS,NIR light sources
4. High transmission UV optic fiber
5. Transmission, reflectance and fluorescence integrated,multi-function measuring sample cell
6. Optosky professional spectral measuring software. Spectral range is selected according to actual users requirements, eg:UV spectrum requires to use UV spectrometer or back-thinned CCD array spectrometer, and broad spectral light sources.

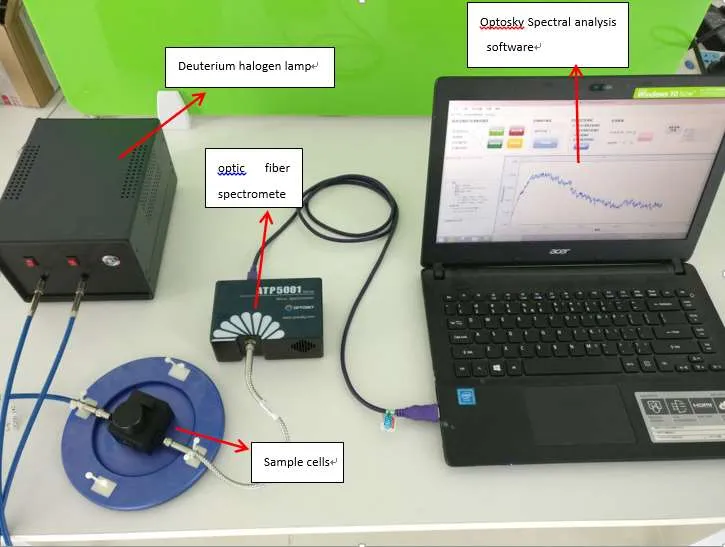

Fig 1 ATX2100 system scheme
