Applications | Raman Spectroscopy in Agriculture: Plant Phenotyping, Stress Detection, and Soil Analysis

How do farmers judge whether a crop is healthy?

They look at whether the leaves are yellow, whether the plant is tall, and whether the fruit is plump. In short—they rely on their eyes.

But what the eyes can see is actually only the "result." Yellowing leaves mean nutrient deficiency has already been present for several days. A wilting plant means drought stress has already occurred. Poor fruit quality is discovered long after it is too late to intervene.

Raman spectroscopy gives agriculture a pair of "X-ray eyes."

01  From "Looking at Appearance" to "Looking at Molecules": The Evolution of Agricultural Testing

Traditional agricultural testing roughly falls into several camps:

The experience camp—a veteran agronomist squats in the field, takes a look, and says, "Hmm, this seedling is nitrogen-deficient." How accurate is that? Entirely dependent on experience. Want a newcomer to learn? Without three to five years of seasoning, it is not possible.

The laboratory camp—samples are taken back to the lab, dried, ground, digested, and run on instruments. Nitrogen, phosphorus, potassium, heavy metals, nutritional components—the data are precise. But it is too slow: from sampling to results, it takes at least several days and at most several weeks. By the time the results come out, the crop is almost ready for harvest.

The rapid testing camp—various test strips, kits, and handheld devices produce on-site results. Fast, yes, but most can only measure one or two items, and accuracy is limited. Want in-depth analysis? Not enough.

The pain point of agricultural testing is clear: fast methods are not accurate, and accurate methods are not fast. Is there a technology that can measure rapidly on site while also providing rich molecular information?

The answer is: Raman spectroscopy.

A beam of laser light directed at a plant leaf yields a "molecular fingerprint spectrum" in about ten seconds—photosynthetic pigments, cell wall cellulose, storage starch, various metabolites… all clearly visible. No grinding, no reagents, and not even leaf removal—direct in-field, in situ measurement.

02  Plant Phenotyping: Seeing the "Inner Nature" of Every Leaf

"Plant phenotyping" sounds academic, but it simply means—what this plant looks like and what its internal quality is.

Pigment Content: Seeing "Greenness" at a Glance

Chlorophyll, carotenoids, anthocyanins—these pigments not only determine leaf color but are also directly related to photosynthetic efficiency and stress resistance.

Traditional chlorophyll measurement? Either use a spectrophotometer (grinding leaves to extract pigments) or a handheld chlorophyll meter (which can only measure a relative value). Raman is far more powerful—without touching the leaf, a laser scan clearly reveals the content and ratio of various pigments, and can even distinguish chlorophyll a from chlorophyll b.

Nutritional Components: "Non-Destructive Physical Examination" of Fruit Quality

Sugar content, acidity, and vitamin content of fruits; protein, starch, and oil content of grains—these indicators determine the quality and grade of agricultural products.

Previously, measuring these required juicing the fruit or grinding the seeds into powder. Raman spectroscopy? A laser shines on the fruit peel, and sugar and acidity are obtained in seconds, with the fruit completely intact and its appearance unaffected. Useful for breeders screening high-quality varieties and for fruit growers grading and pricing.

Cell Wall Structure: The Secret of the Plant "Skeleton"

Cellulose, hemicellulose, lignin—these form the plant's "framework." Raman is particularly sensitive to the vibrational signals of carbohydrates and can clearly reveal changes in cell wall composition and structure. Whether a crop has strong lodging resistance, whether straw is easily degradable, and whether cotton fiber quality is high—Raman can provide answers.

03  Stress Detection: Early Detection and Early Treatment When Plants Are "Sick"

Plants cannot speak, but they send distress signals in "molecular language." Raman spectroscopy is the translator that can understand them.

Drought Stress: Detected 3 Days Earlier Than Wilting

When a plant lacks water, the first reaction you see is wilting leaves. But in fact, before it is visible to the naked eye, changes have already occurred inside the cells—accumulation of osmotic adjustment substances, cell wall loosening, and degradation of photosynthetic pigments.

Raman spectroscopy can capture these early molecular changes and detect drought stress several days earlier than visual observation. For precision irrigation, this few-day time difference may be the difference between "yield reduction" and "stable yield."

Salt Stress: The "Scout" of Saline-Alkali Land

Farming on saline-alkali land is difficult because you do not know which plot has more salt or which seedling is salt-tolerant. Raman can rapidly detect osmotic adjustment substances in plants (such as proline and soluble sugars) and can also directly measure the salt composition and content in soil.

Breeders screening salt-tolerant varieties previously had to wait until crops reached a certain stage to measure biomass. Now? A Raman scan at the seedling stage makes salt tolerance clear at a glance, directly doubling screening efficiency.

Disease Detection: "Catching" Pathogens Before Symptoms Appear

After fungi, bacteria, and viruses infect plants, they leave unique molecular imprints in the plant. Raman spectroscopy can not only detect the plant's own defense responses (such as phytoalexins and lignin accumulation) but can even directly identify the characteristic spectra of pathogens.

Wait until leaf spots appear before spraying? Too late. Raman can detect infection during the latent period, enabling precise medication, reducing pesticides, and increasing yield—this is what smart agriculture looks like.

04  Soil Analysis: What Exactly Is Hidden in the Soil Beneath Our Feet?

Whether crops grow well depends on the soil. But soil is a dark, acidic mass—what exactly is inside?

Soil Organic Matter: Not Just "How Much," but "What Kind"

Traditional soil organic matter measurement can only tell you "how much" there is, but the "quality" of organic matter is actually more important—is it easily decomposable active carbon or stable humus? Is it fulvic acid or humic acid?

Raman spectroscopy can "see" the molecular structure of organic matter: aromatic carbon, aliphatic carbon, carboxyl groups, polysaccharides… various functional groups are clearly visible. Whether soil fertility is good and whether carbon sink capacity is strong can be seen at a glance.

Rapid Nutrient Testing: Fertilization Can Also Be "Precision-Guided"

Nitrogen, phosphorus, and potassium are the "three major nutrients" for crops, but traditional soil testing and formula fertilization requires sending soil samples to a laboratory, and results take one to two weeks. Raman spectroscopy combined with chemometric models can rapidly determine available nitrogen, available phosphorus, and available potassium in soil on site, providing fertilization recommendations on the spot.

For large-scale growers, soil testing costs are reduced, testing frequency is increased, and fertilization is more precise—saving fertilizer costs while reducing non-point source pollution. Two benefits in one.

Heavy Metal Contamination: A "Health Check" for Soil

Are there heavy metals in the soil? Are cadmium, lead, or arsenic exceeding standards? These issues concern food safety and cannot be taken lightly. Raman spectroscopy (especially surface-enhanced Raman scattering, SERS) has high sensitivity for detecting heavy metal ions and can rapidly screen soil contamination status, safeguarding the safety bottom line of the "rice bag" and "vegetable basket."

05  Optosky Raman Spectrometers: A Powerful Tool for Agricultural Research

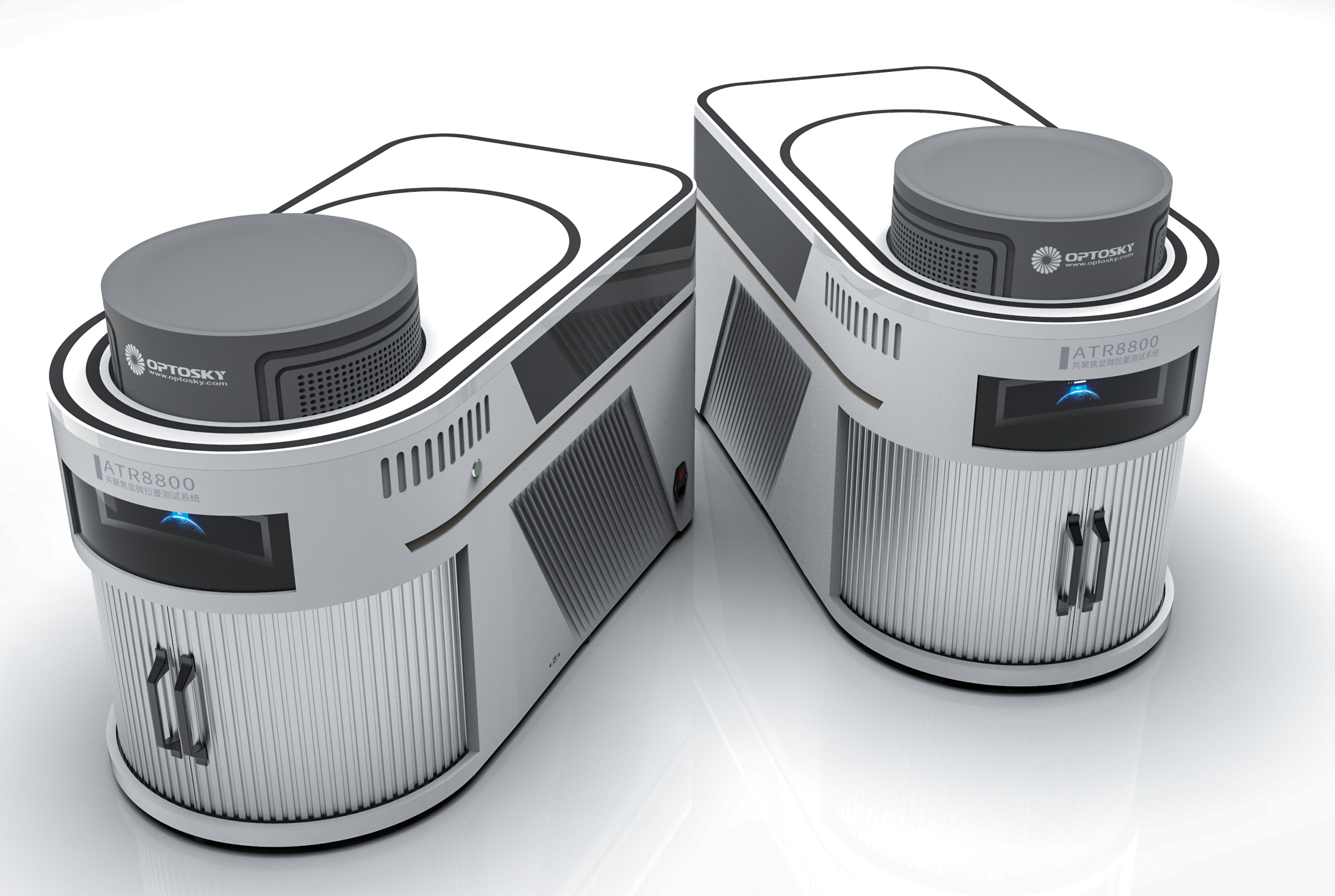

Optosky ATR8800 series confocal micro-Raman spectrometer

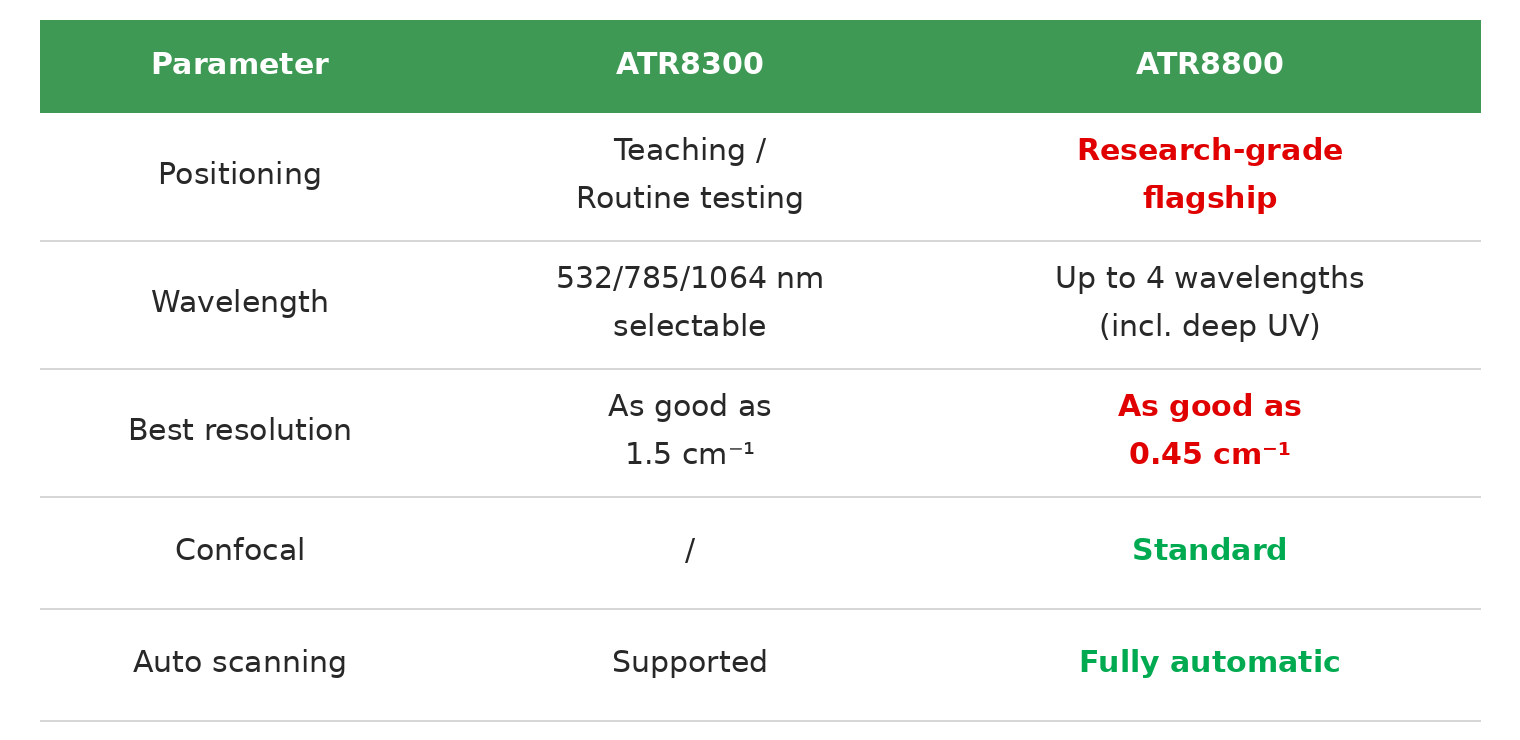

Raman spectroscopy is increasingly widely used in agriculture, but choosing the right instrument is key. As a leading domestic brand of Raman spectrometers, Optosky offers several products highly suitable for agricultural research scenarios.

ATR8800 Series: The Research-Grade All-Around Performer

If you are conducting basic agricultural research at a university or research institute, the ATR8800 series is a one-step solution. The confocal microscopy design can focus on individual cells or even chloroplasts in plant leaves to study ultrastructural changes.

Hyperspectral Imaging: A Leap from "Point" to "Area"

Traditional Raman measures "one point," while Raman imaging can measure "a whole area"—automatic scanning generates two-dimensional/three-dimensional chemical distribution images. Where pigment content is high on a leaf and where stress metabolites accumulate can be seen intuitively in a color distribution map.

The ATR8800 supports fully automatic scanning imaging, with a 50 × 50 mm scanning range and 0.1 μm movement precision. Want to create a pigment distribution map of a leaf? Want to measure the nutrient distribution inside a seed? Set the parameters and run with one click—the output images can be used directly in papers.

Deep UV Option: Anti-Fluorescence, More Friendly to Plant Samples

Plant samples have a headache-inducing problem—pigments such as chlorophyll fluoresce strongly under visible light excitation, easily masking Raman signals. The ATR8800UV deep UV version perfectly solves this problem: 266/325 nm deep UV excitation avoids fluorescence interference at the source, greatly improving signal quality for plant samples.

06  Conclusion

Agriculture is undergoing a "technological revolution."

From experience-based agriculture "facing the loess with back to the sky" to smart agriculture armed with satellites, drones, and sensors, the way we observe crops is constantly evolving. But no matter how technology changes, the core need remains the same: to understand crops and soil earlier, more accurately, and more comprehensively.

Raman spectroscopy is exactly such a technology—it does not destroy samples, requires no reagents, produces results in about ten seconds, and provides rich molecular-level information. From plant phenotyping to stress detection, from soil analysis to quality identification, its application scenarios continue to expand.

The agriculture of the future is not just "relying on the weather for food," but "relying on science for food."

Optosky Raman Spectrometers

Giving agriculture a pair of "X-ray eyes," allowing every crop to be understood.
